Heat Line HLPC-TIMER-120P Installation And Operating Instructions

Features

• Plugs directly into standard 120V and 240V 15 Amp receptacles
• Provides 8 field selectable cycle durations:
30 seconds, 1 minute, 3 minutes, 5 minutes, 10 minutes, 30 minutes,
1 hour, and 4 hours
• Provides 30 separate detent positions for precise selection of percentage
On time
• User settings stored in non-volatile memory
• Control buttons on front of timer
• No DIP switches to program cycle time
• Easy to install and program
• Manual ON/OFF control allows for temporary or permanent override
• Designed to function in dusty, ammonia, and wash-down environments
• Able to withstand surge of up to 6,000 VAC
• Operating Temperature from 14°F to 129°F (–10°C to 54°C)
• Product weight 1.4 lbs. (0.6 kg)
• Limited 1 year Product Warranty
Read these rules and instructions carefully. Failure to
follow them could result in serous bodily injury and/or
property damage.
• Check your local building and electrical codes before
installing. You must comply with their rules.
• To reduce the risk of electric shock, this product has a
grounding type plug that has a third (grounding) pin.
This pin will only fit into a grounding type power outlet.
If the plug does not fit into the outlet, contact a qualified
electrician to install the proper outlet.
s
li g n
w a
r r o
e " a
T im
c le e
e r : t C y ti m o ll k s )
s c r
le c c le b li n
T im
" S e l c y n to
y c le
E D
th e to ta u tt o e ( L
m C m e
n ti l s e e b
le ti
g r a h o o ti m
b u T im
P r o to c ir e d f c y
k n o
y c le d e s e o
T o
u r n g le c t C ta g
ia n e s a v e
1 . T c e n
S e le ti m to s
h tr
y c le p e r
w it th e
o n
e c b u tt O N
u s h
h th ir e d
2 . P
o u g h o ld
d e s
th r a n d n ti l
u s h b u g le
3 . P k n o ia n
h tr
u r n
w it
4 . T
n s
a li g
• Do not use Outdoors. Dry and indoor locations only.
• Disconnect power at the circuit breaker(s) or disconnect
switch(es) before beginning installation and before servicing.
• Do not use the manual off position of the timer for
equipment service. Always disconnect the power at the
circuit breaker(s) or disconnect switch(es).
• Avoid the use of extension cords as this may increase
the risk of electric shock, fire and property damage.

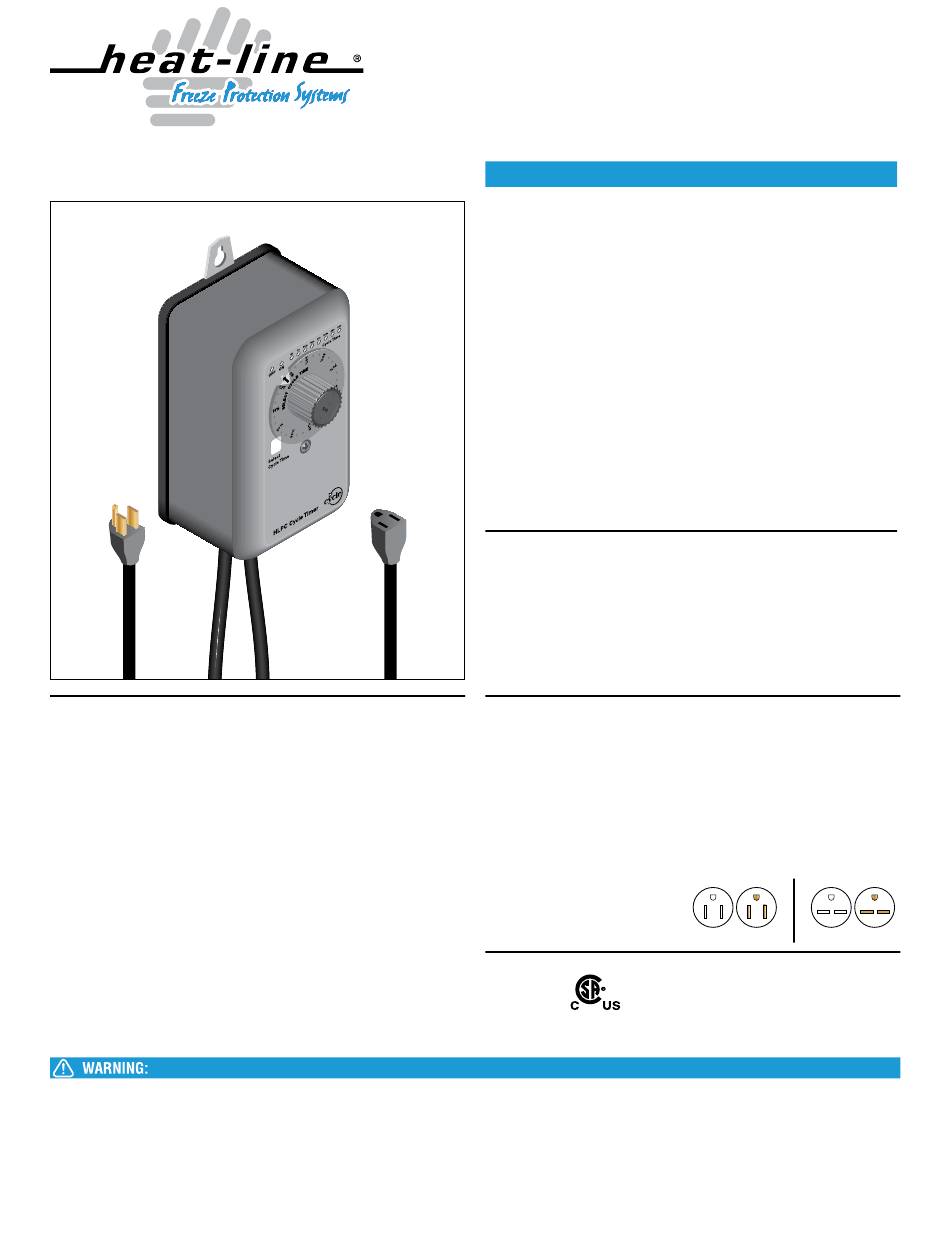

HLPC-TIMER-120P /
HLPC-TIMER-240P
Programmable Outlet Cycle Percentage Timer for
Heat-Line Freeze Protection Systems
Installation and Operating Instructions

General Information

Timers are a beneficial optional accessory when incorporated with any Heat-
Line freeze protection system. Regardless of the overall system length and or
operating voltage, a Heat-Line Timer will reduce energy costs by decreasing
overall energy consumption. A Timer can be added to Heat-Line systems in
order to duty cycle the heating cable at a selected time interval and percentage.
This field adjustable timer offers true flexibility for repetitive cycle times, and
offers 8 selectable cycle durations with 30 separate percentage positions for
ON time periods. To obtain the best results from your investment, please read
these instructions and acquaint yourself with your purchase before installing
your new timer. Then follow the installation procedures, one step at a time.
This will save you time and minimize the risk of damaging the timer and the
system it controls.
IMPORTANT!
Please read all instructions carefully before beginning
installation. Save them for future reference.
WARNING:
Only use with 120V-15A or 240V-15A GFCI model Heat-Line
brand self-regulating heating cable systems.

Compatibility

The Heat-Line HLPC-TIMER-120P/240P Programmable Outlet Cycle
Percentage Timer is for use with 120Volt/ 240V, 15 Amp plug-in, 60 Hz
GFCI model Heat-Line Self-Regulating Freeze Protection Systems including
ArcticVent, CARAPACE, EXT5R, EXT3T, Paladin, Heat-Line, Retro-DWS,
Retro-FM, Retro-Line, Rizer-Line, and Tandem-Link systems. This is a timer
control designed to increase energy efficiency of Heat-Line brand products, it is
NOT to be used as a high limit device for other heating cable brands.

Ratings

• 120V/60 Hz (120P) and 240V/60 Hz (240P)
• Maximum load is 20 Amps at 120/ 240 Volts
• Power Consumption 2.5 W (maximum)
• Plug and Receptacle NEMA
• Tungsten (Incandescent): 5 Amps @ 240 VAC
• Pilot Duty: 470 VA @ 240 VAC
• Ballast (Fluorescent): 10 Amps @ 277 VAC
• Plug and Receptacle NEMA 5-15R/ 5-15R (120P Model) and
NEMA 6-15R/ 6-15P (240P Model)

Approvals

Energy Controls
• Check unoccupied residences regularly to ensure that all
systems are operating properly.
• Avoid the use of extension cords as this may increase
the risk of electric shock, fire and property damage.
• Use this thermostat only as described in this manual.
Any other use not recommended by the manufacturer
may increase the risk of fire, electric shock, or injury
to persons.
125V-15A 250V-15A
5-15R 5-15P 6-15R 6-15P
receptacle plug receptacle plug
