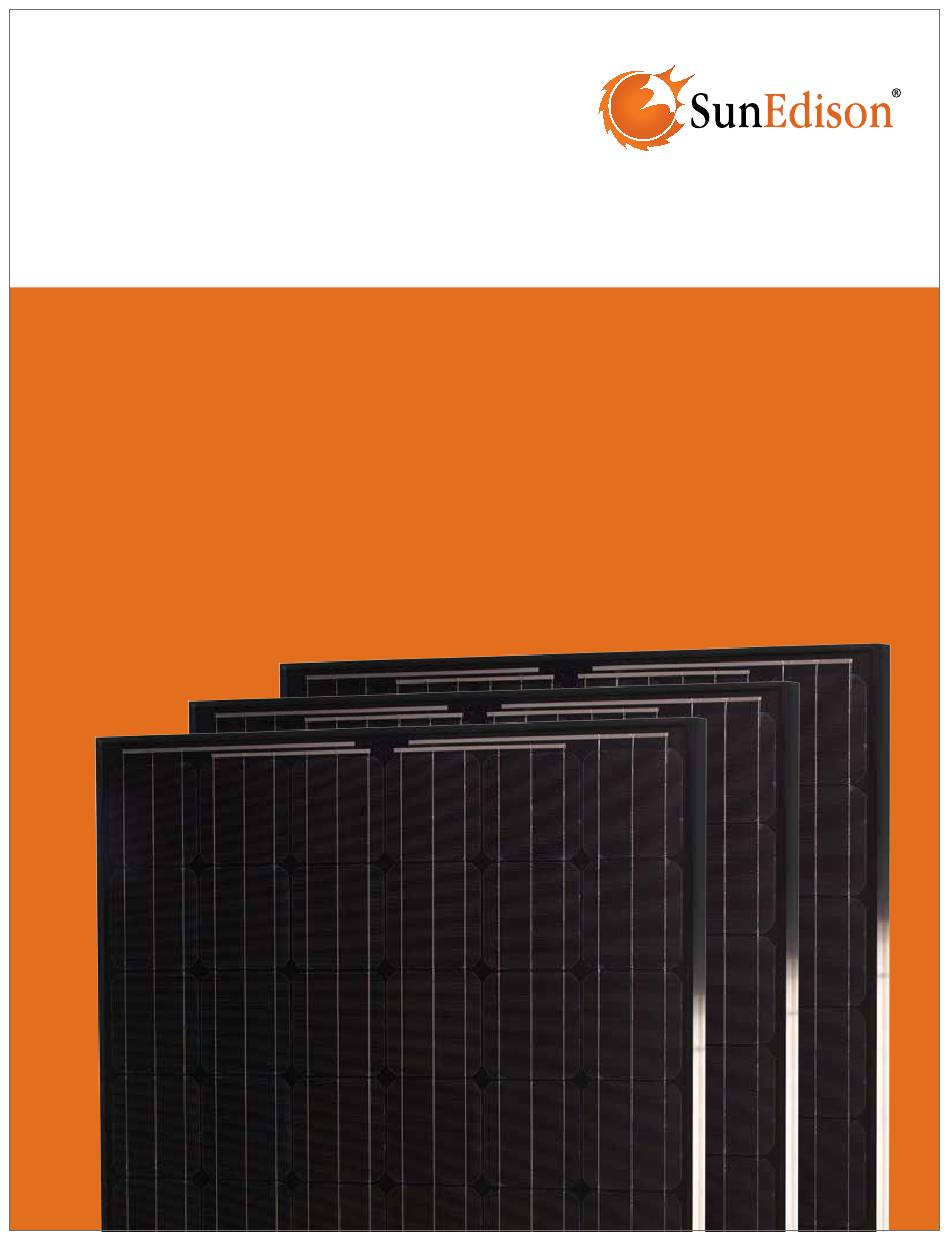

Installation Manual
for SunEdison Silvantis 60 cell Photovoltaic Modules
Product List:
M245CyC, M250CyC, M255CyC, M260CyC, M265CyC, M270CyC, M245KyC, M250KyC,
M255KyC, M260KyC, M265KyC, M270KyC, F245CyC, F250CyC, F255CyC, F260CyC, F265CyC,
F270CyC, F245KyC, F250KyC, F255KyC, F260KyC, F265KyC, F270KyC
Advertisement
Table of Contents
Related Manuals for SunEdison Silvantis 60
Summary of Contents for SunEdison Silvantis 60
- Page 1 Installation Manual for SunEdison Silvantis 60 cell Photovoltaic Modules Product List: M245CyC, M250CyC, M255CyC, M260CyC, M265CyC, M270CyC, M245KyC, M250KyC, M255KyC, M260KyC, M265KyC, M270KyC, F245CyC, F250CyC, F255CyC, F260CyC, F265CyC, F270CyC, F245KyC, F250KyC, F255KyC, F260KyC, F265KyC, F270KyC...
-
Page 2: Table Of Contents
Installation Manual: sunedison silvantis 60 Cell Pv Modules 1 of 12 Table of Contents 1.0 InTroduCTIon ..........................2.0 PhoTovolTaIC Modules ProduCT Code ................ 3.0 Module overvIew ..........................................3.1 sTorage, unPaCkIng, and handlIng ............................3.2 safeTy ..........................3.3 MaInTenanCe 4.0 MeChanICal InsTallaTIon ..................... -
Page 3: Introduction
SunEdison photovoltaic module products, please contact SunEdison. 2.0 PhoTovolTaIC Modules ProduCT Code This guide is to be used for SunEdison Silvantis 60 cell photovoltaic (PV) module installation. Please refer to the following module numbers before using the guide:... -
Page 4: Safety
• Do not wear rings, jewelry, watches, or other metallic items while working with photovoltaic modules. 3.3 MaInTenanCe Check modules, glass, and frames for damage. Regularly inspect all SunEdison Silvantis Solar Modules for safe electrical connections, sound mechanical connections, and freedom from shading and corrosion. If dirt or debris buildup becomes excessive, periodically clean the glass only with a soft cloth using mild, non-abrasive detergent and water. -
Page 5: Mechanical Installation
• Consider the following factors during system design, which will influence performance: SunEdison solar modules produce the most power when they are pointed directly at the sun, and should be tilted for optimum system performance. Proximity to obstructions such as: walls, buildings, trees, groundcover, snow cover, or dust and debris that have the potential to shade or damage the modules. - Page 6 Installation Manual: sunedison silvantis 60 Cell Pv Modules 5 of 12 Table 4.2a bolT MounT ClaMP MounT MounTIng ConfIguraTIons load ParaMeTers loCaTIons loCaTIons PerPendICular MounTIng Maximum (Cases 1 & 2) Rear Load: Structural rails running perpendicular Clamp mount 2400 Pa or 50 psf...
- Page 7 Installation Manual: sunedison silvantis 60 Cell Pv Modules 6 of 12 Table 4.2a ClaMP MounT MounTIng ConfIguraTIons load ParaMeTers loCaTIons full lengTh ClaMPIng Maximum (Cases 4&5) Clamp mount Rear Load: When clamping the module full width allowable range across the ends it is unsupported along 2400 Pa or 50 psf the unclamped edge.
-
Page 8: Additional Mounting Methods
4.3 addITIonal MounTIng MeThods 4.3 Use of the PanelClaw system (Part Number 500000501) is permitted with SunEdison Solar PV Modules. Structures manufactured by PanelClaw Inc. use a special clamp, or "claw" designed to attached to the flange of the PV module at all four corners, on the two short frame ends. -
Page 9: Electrical Installation
• Electrical characteristics are within plus or minus 5% of rated values for Isc, Voc, Impp and Vmpp. Modules may operate under conditions which may be significantly different than STC. SunEdison suggests multiplying specified ratings by a minimum of 1.25 times or more when specifying the system and balance of system components. Installer should adhere to all local, regional and national codes before planning and design of the system. -
Page 10: Grounding
• There is no limit to the maximum number of series strings that can be combined in parallel. However, when doing so, each string must include overcurrent protection with a maximum rating of 15A. SunEdison recommends the use of DC rated fuses or overcurrent protection devices with the appropriate maximum voltage rating. -
Page 11: Electrical Installation Warnings
SunEdison in writing, or if the product is installed in an environment for which it was not designed. SunEdison shall not be liable for special, indirect, consequential, contingent or incidental damages related to or arising from the installation or use of the product by purchaser under any circumstances. -
Page 12: Appendix
Installation Manual: sunedison silvantis 60 Cell Pv Modules 11 of 12 7.0 aPPendIx 7.1 Module IllusTraTIons Bolt Stack Details 7.2 PhysICal ParaMeTers Module Weight 19.3 kg Frame Material Anodized Aluminum Glass (mm) 3.2 Tempered ARC glass Connector S418 BizLink/Amphenol PV Connector... -
Page 13: Pre-Mounted Cables And Connectors
For more information about SunEdison Silvantis modules, please visit www.SunEdison.com © 2013 SunEdison, Inc. All rights reserved. SunEdison and the SunEdison logo are registered trademarks or trademarks of SunEdison, Inc. and/or its affiliates in the United States and certain other countries. All other trademarks mentioned in this document are the property of their respective owners. The use of the word partner does not imply a partnership relationship between SunEdison and any other company.
