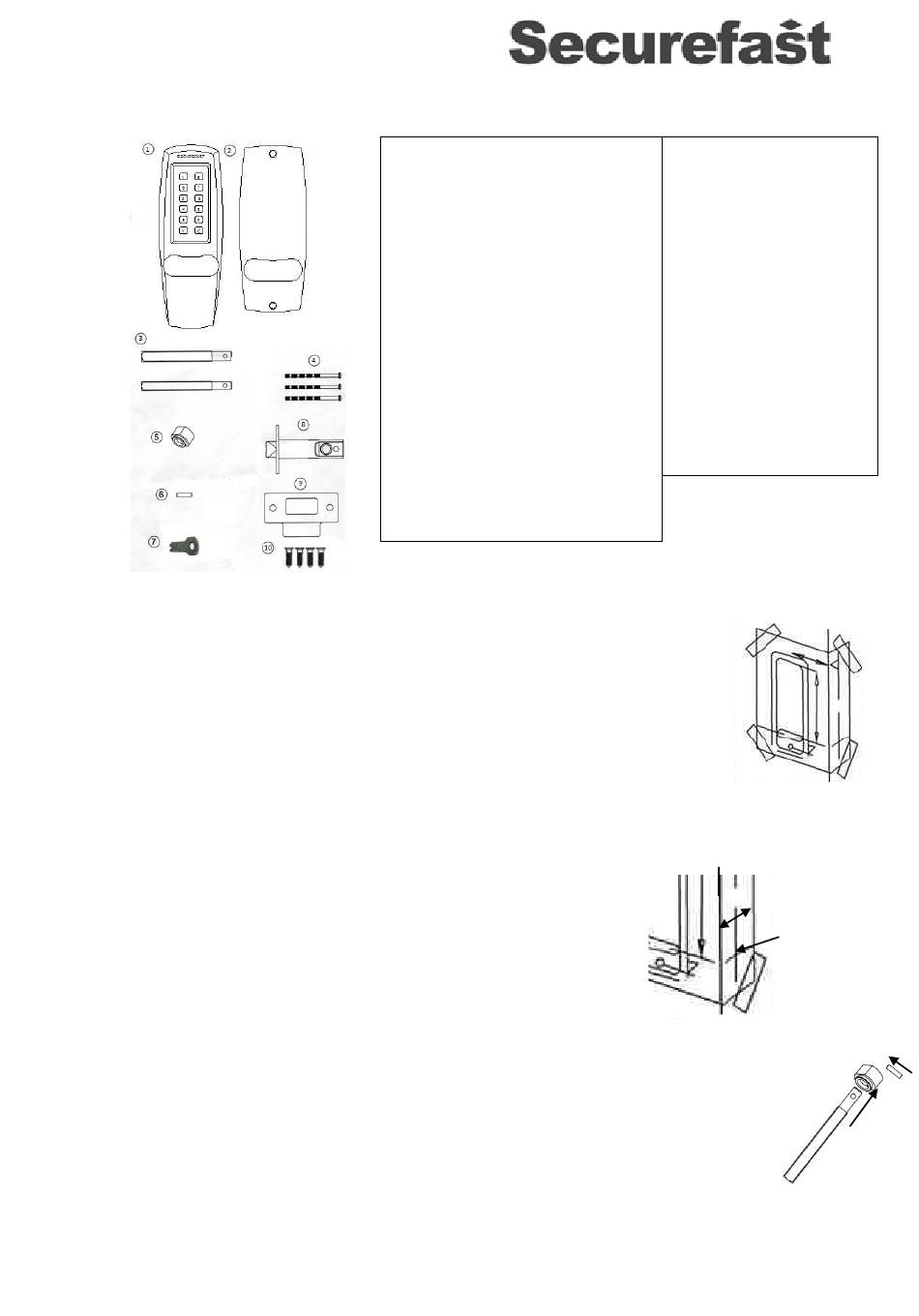

Securefast SBL700 Installation Instructions

T/052A/SBL700
Installation Instructions for SBL700 Push Button Lock with Knob Handle
Installation
Applying the Template

Position and tape the template (T/051/SBL700), to the internal door face, at the desired height from
the floor level. Ensure that the relevant door edge mark on the template is correctly aligned with
actual door edge. (Figure 1)

Mark the two 7mm holes for the bolt through fixings.

Mark the 12mm diameter hole for the code change metal rod.

Mark all 5mm holes for spindle of digital lock.

Drill all marked holes

Clear the excess material inside the dotted lines surrounding the 5mm holes for spindle of digital lock.
Installing the Latch

Draw a centre line of latch down the edge of the door. (Figure 2)

At the marked position drill a 35mm diameter hole x 85mm deep

Inset Latch into the hole and draw around the face plate.

Remove latch and cut a 3mm rebate to allow the Latch face plate to sit flush in the
door.

Secure latch with wood fixing screws ensuring the positioning is square. If not
square the lock will not function correctly.
Fixing the Lock

Select the appropriate spindle to suit lock follower, shorten if necessary and assemble as
shown in Figure 3.

Feed the radius end of the spindle through the spindle collar and then insert the pin
through the hole in the spindle so it is secure within the collar.

Remove small back plate from the reverse side of Digital Lock, which is held in place by 3
fixing screws.

Locate spindle assembly collar into reverse of Digital Lock and re-secure small back plate
with the 3 fixing screws.
SBL700
LIST OF PARTS
1) Digital Lock with Knob Handle
2) Internal Block
3) Spindle (7mm and 8mm)
4) Fixing Bolts x 3 (1 spare)
5) Spindle Collar
6) Lock Pin
7) Code Change Key
8) Tubular Latch (60mm Backset)
9) Striker
10) Wood screws x 4 (For securing Latch
and Striker Plate)
BEFORE INSTALLATION
PLEASE:
1) Ensure all parts work properly
2) Check that a code can be set
and changed by following the
instructions under the 'Setting
and Changing the Code'
section.
3) Ensure that both knob
handles of the Digital Lock can
be moved freely.
Also check that the latch moves
freely by pressing the end and
by turning with the spindle
Door edge
Figure 1
Door edge
Door Thickness
Central point on
'centre line of
latch'
Figure 2
Figure 1
Figure 3
3rd January 2016
