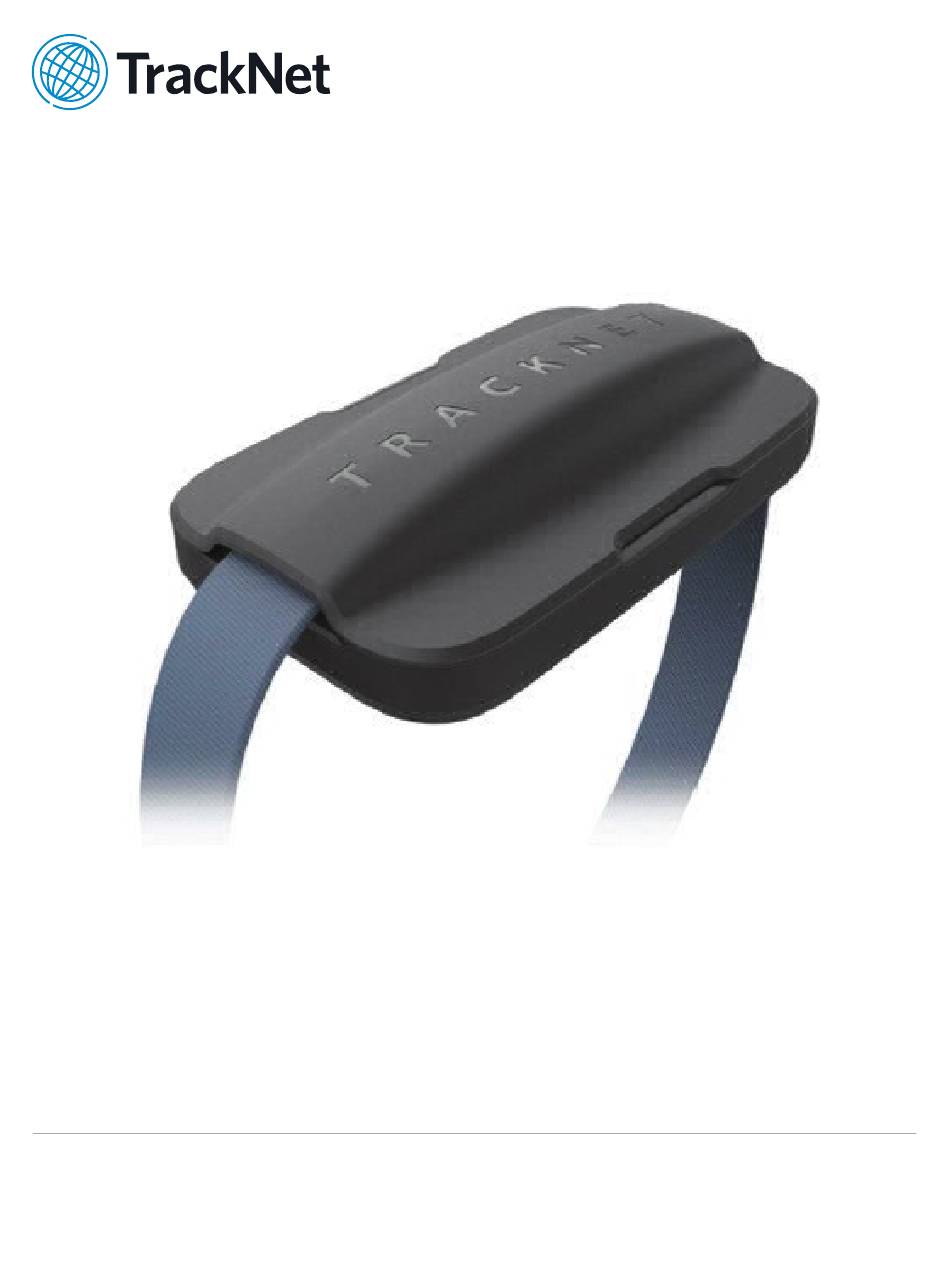

- Page 1 Industrial Tracker Reference Manual TNIT100-915 TNIT100-868...
- Page 2 Indication .......... 3 4. Messages ..........4 4.1 Status ..........4 4.1.1 Common Fields ......4 4.1.2 Triggers ........4 4.1.1 Payload ......... 4 5. Command ..........4 © 2017 TrackNet Inc, USA and Trackio GmbH, Switzerland. All rights reserved.
- Page 3 2.7 Additional Features (Conducted) PCB Temperature NTC 100K Ohm Antenna Gain 0dBi Peak, -3dBi Avg Battery Monitoring Resistor divider 2.4 Certifcations and Conformity FCC: 2AMUGTNIT100 IC: 22980-TNIT100 ROHS REACH © 2017 TrackNet Inc, USA and Trackio GmbH, Switzerland. All rights reserved.
- Page 4 LED shall fash 3 times within 500ms, or once if a low battery condition is detected. Position updates will be sent to the network until the device remains at rest for 30 seconds. © 2017 TrackNet Inc, USA and Trackio GmbH, Switzerland. All rights reserved.
- Page 5 Packet Triggers: 60 minute inactivity, movement, button press, position update every 15 seconds while moving and GNSS has a 2D fx, update every 2 minutes while moving and GNSS does not have a 2D fx. © 2017 TrackNet Inc, USA and Trackio GmbH, Switzerland. All rights reserved.
- Page 6 GNSS receiver. If there has never been a GNSS fx acquired, the values may both be 0. 5. Command RESERVED. 6. Battery Replacement Use ER14250 or equivalent. Remove screw and replace both batteries. Do not mix old and new batteries. © 2017 TrackNet Inc, USA and Trackio GmbH, Switzerland. All rights reserved.
- Page 7 Installez l’appareil en veillant à conserver une distance d’au moins 20 cm entre les éléments rayonnants et les personnes. Cet avertissement de sécurité est conforme aux limites d’exposition défnies par la norme CNR-102 at relative aux fréquences radio. © 2017 TrackNet Inc, USA and Trackio GmbH, Switzerland. All rights reserved.
