Summary of Contents for Raptor R56

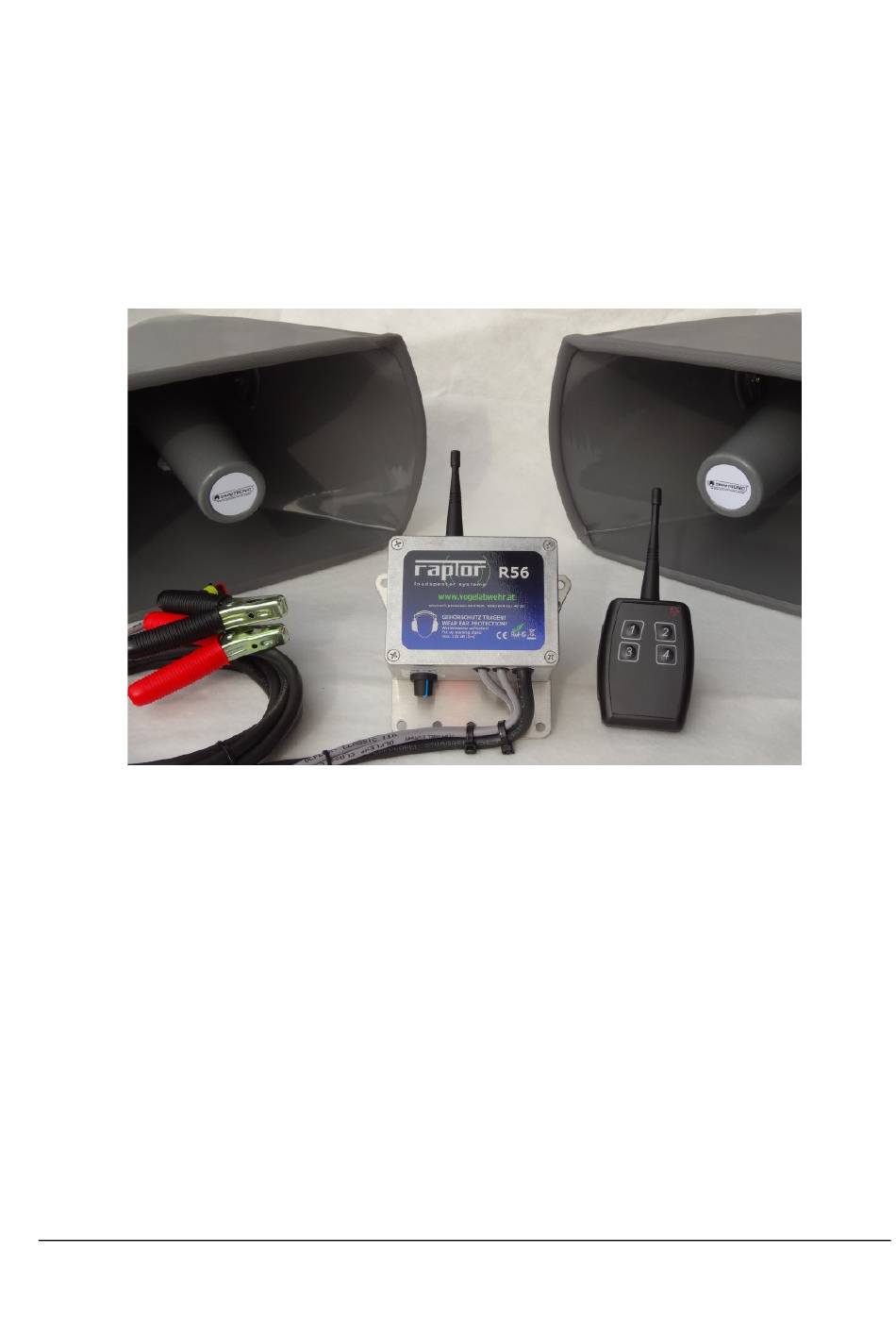

- Page 1 Additional Operating Manual RAPTOR R56remote Please carefully read the complete manual before initial operation and then keep on hand for future reference (software 1127) ENGLISH - 1 -...
- Page 2 Long keypress (2seconds) FAST AUTOMATIC mode is activated for appr. 2h. 1x Sound The RAPTOR will confirm with a double-beep sound. Every additional long keypress will add +2h additionally. The Interval between the sounds is as defined by the dial...
- Page 3 Additionally, this model includes various automatic modes that can provide the user with all of the advantages of a fully automated system. When using multiple RAPTOR remote systems, the devices can be individually activated or activated in groups. Through encrypted radio transmission, unintended or third-party activation is virtually impossible.
- Page 4 The devices operate mainly automatically (automatic night-day operation) but with longer intervals. “FAST AUTOMATIC“ This can be set directly on the RAPTOR and is three times longer than The operator is only present during periods of increased bird concentration or potential damage and can activate the sounds at any time during the pauses.
- Page 5 The device (or group of devices) then generates a loud double-beep to confirm that they are operating in fast automatic mode. Therefore, when activating the system, the operator should be in hearing distance of the RAPTOR so as to be able to hear this acoustic feedback.
- Page 6 Example 2: Vineyards A small winery wants a needs-based bird-control system for the months of July-October, but does not want to engage a full-time worker for the task. The RAPTOR remote devices are set to “SLOW AUTOMATIC” mode with an interval of 9 minutes. This interval is usually sufficient. In the month of September, the bird concentration is especially high.
- Page 7 Birds that have been settled in the area for a longer amount of time can be initially difficult to repel. For one, the birds might barely react to the RAPTOR’s sounds since the birds are in a place that they had determined to be safe. In this case, consistent and periodic use of the sounds is recommended (e.g., every two minutes) until the birds leave.
- Page 8 RADIO CONTACT Operating frequency: 869,5 MHz. Transmission range under optimum conditions (visual contact, no HF noise, no electro-magnetic fields): For individual remote activation: max. 1000-2000m For activating the “FAST AUTOMATIC” (2sec keypress) hearing distance is recommended Hold the sender antenna completely upright. An interruption of the visual contact due to trees, etc., reduces the range by a small amount.
