Eclipse 902-385 Operating Instructions

Area of application:
This tool is only designed for the use described in the operating instructions. Any other
use may result in accidents or damage of the tool.
1. Standard pliers functions: (combination, tube, flat pliers / open end wrench
Set function lever in position „open".
Set adjustment screw for jaw opening size according to application.
2. Grip pliers functions: (tube, flat pliers)
Set function lever in position „lock".
Set adjustment screw for jaw opening size according to application.
3. Crimp functions: (coax connectors RG 58,59,62, insulated terminals AWG 22-10
(0,5-6,0mm²), wire ferrules AWG 22-10 (0,5-6,0mm²).
Set function lever in position „lock".
Turn adjustment screw for jaw opening size clockwise until stop, then turn 1/4 turn
counter-clockwise. Insert crimp dies.
4. Riveting function: (riveting attachment)
Set function lever in position „open".
Set adjustment screw for jaw opening size that the 2 arrows will match.
Assemble riveting attachment und guide according to rivet size.
If handforces are too high during riveting operation, turn adjustment screw 1/4-1 turn
counter-clockwise.

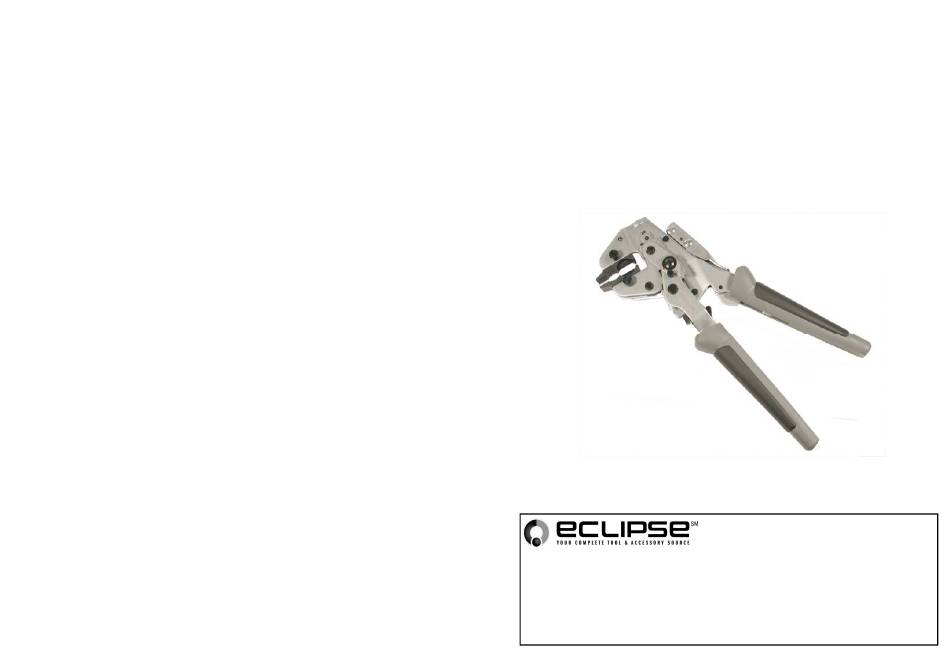

Raptor RCG
902-385
Operating Instructions
Tel: 804-561-2610
Eclipse Tools
Fax: 804-561-2642
e-mail: custsvc@eclipsetools.com
13302 Chula Rd
Internet: www.eclipsetools.com
Amelia, VA 23002
