Aqua Computer RGBpx Splitty4 Instruction Manual

aqua computer
Instruction manual RGBpx Splitty4 Instruction manual RGBpx Splitty4 Instruction manual RGBpx Splitty4 Instruction manual RGBpx Splitty4

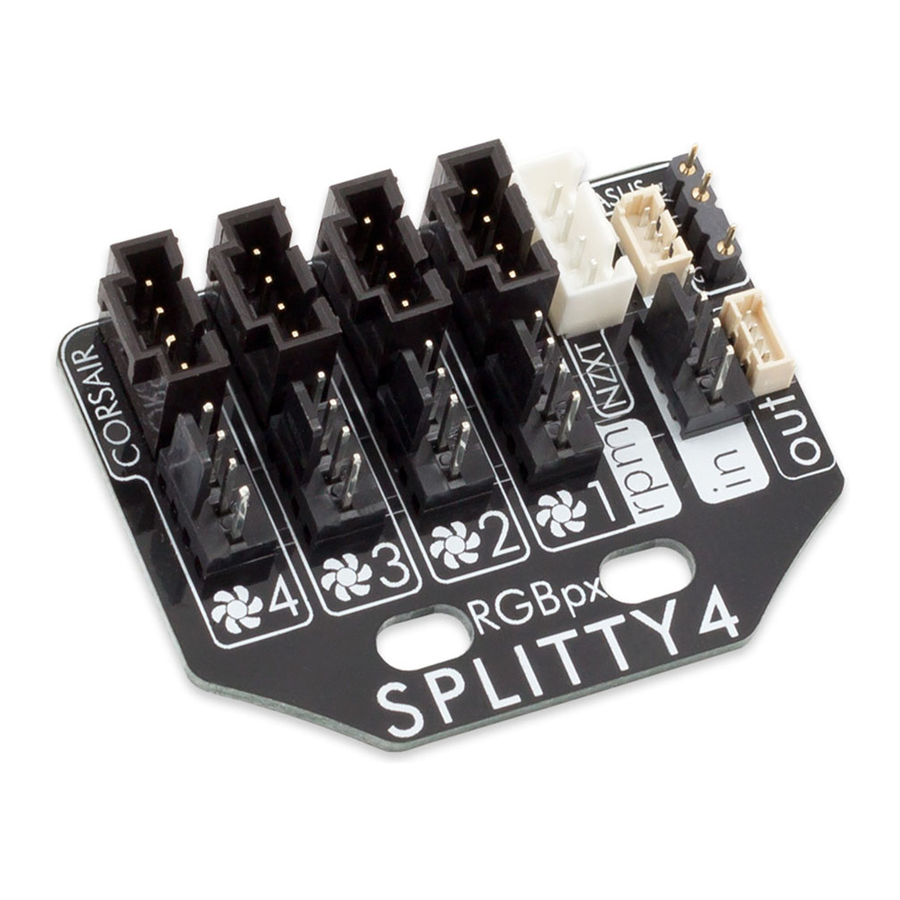

RGBpx Splitty4 combines a quadruple fan splitter as well as an
adapter for fan lighting systems of manufacturers Corsair and
NZXT. Both features can be used independently.

Fan splitter application

Fan splitter application
Fan splitter application Fan splitter application
Connect the splitter's fan connector marked with the word "in"
to a suitable fan output using the supplied cable. Power supply
and PWM signal are provided to all four fan connectors, addi-
tionally the speed signal received from the connector marked
"rpm" is returned to the fan output.

RGBpx adapter application

RGBpx adapter application RGBpx adapter application RGBpx adapter application
Connect the splitter's miniature connector marked with the word
"in" to an RGBpx output of an Aqua Computer device using the
supplied cable.
Fans manufactured by Corsair: Connect the illumination con-
nector of each fan to the connectors of the splitter, beginning
with header "1" in ascending order.
Fans manufactured by NZXT: Connect the illumination connec-
tor "IN" of the first fan to the connector of the splitter. Additional
fans can be connected consecutively to the connector "OUT" of
the preceding fan.
Simultaneous use of fans made by both manufacturers is not
possible.
© 2018 Aqua Computer GmbH & Co. KG
Gelliehäuser Str. 1, 37130 Gleichen
RGBpx Splitty4
94743
