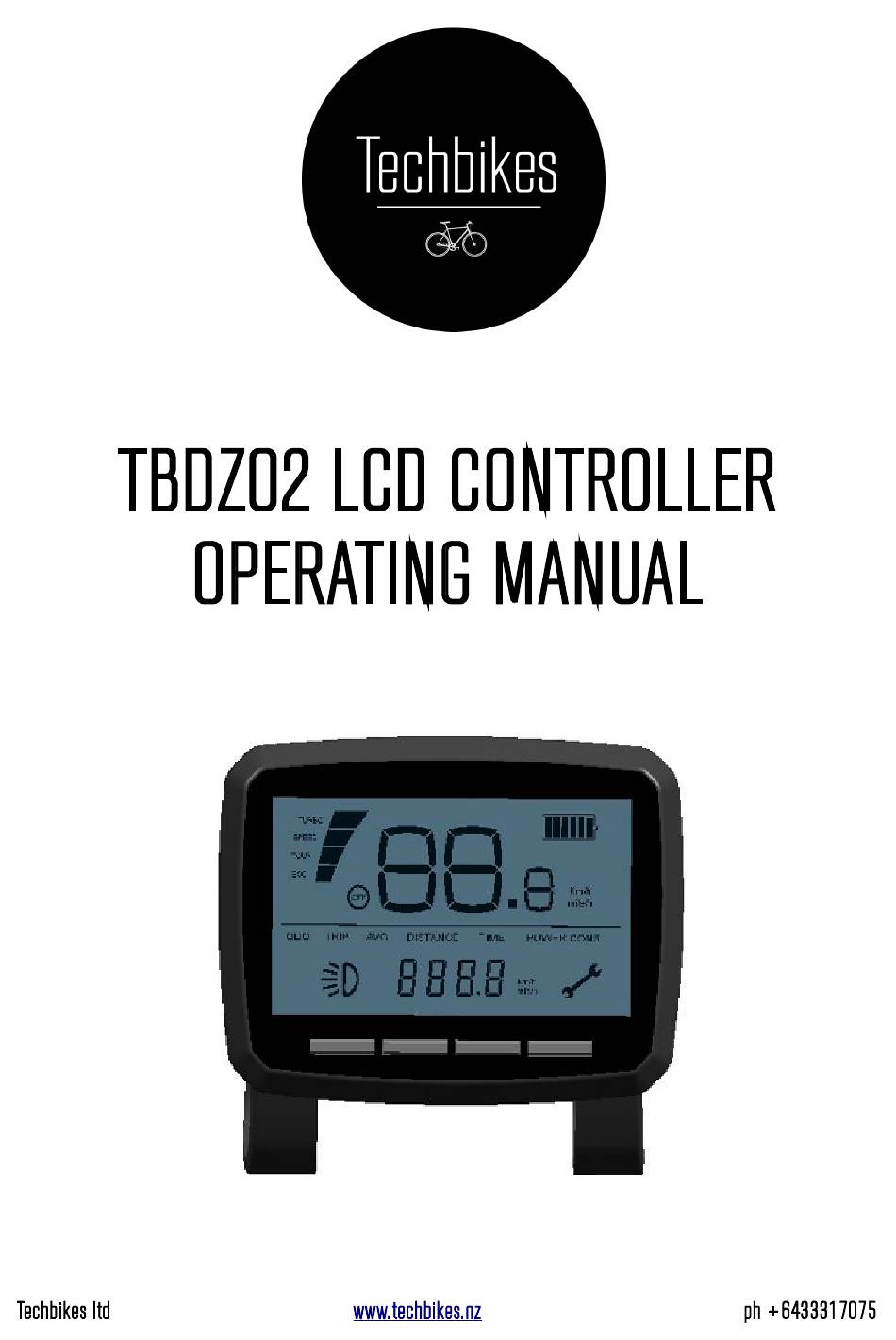

Techbikes ltd TBDZ02 Operating Manual

Lcd controller

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the TBDZ02 and is the answer not in the manual?

Questions and answers

Summary of Contents for Techbikes ltd TBDZ02

Page 2 Working voltage: DC 11V-60V Max working current: 70mA(11V) 32mA(50V) Display type: 21*4 segment LCD Sampling: 1-12 pulses each circle of the wheel (Data come the from hall sensor in controller) • 1 pulses each circle of the wheel(Data come from reed sensor on the front wheel) •...
Page 3 The controller LCD is designed to be installed in the middle of the handlebars above the stem. Remove the two securing bolts from the clamps and stretch the clamps over the handlebars. Rubber shims are provided for secruing the display to smaller diameter handlebars. Once the correct shims are in place re-fit the securing bolts and tighten them until the display is secure (i.e.
Page 4 Backlight The LCD has a backlight for use in low light levels. A lamp icon is displayed when the backlight is Wheel Diameter The wheel diameter can be set from 8” to 28”. The default setting is 26” Speed Sensor The speed sensor type and number of pulses per wheel revolution can be adjusted if required.
Page 5 Setting the Assist Level ， TOUR” “ ， SPEED” and “TURBO”) and the power assist can also be turned There are four assist levels ( “ECO” “ off. Press the plus button to increase the power assist level and the minus button to decrease the assist level.
Page 6 Backlight kground lightv With the system powered on push the power button momentarily to turn the backlight on. Push the power button again to turn the backlight off. Trip Distance (trip) Shows the distance covered in the current trip. Odometer Shows the total distance covered.
Page 7 Power Average power consumption in W*h. Cons Shows the average power in watts Wheel diameter selection Press button to select the wheel diameter using + and - buttons to adjust the wheel size from 8 to 28 inch, the default value is 26 inch. Speed sensor selectionpeed sensor selectio Press...
Page 8 Diagnostic code If a fault is detected a spanner will appear in the lower right conrner of the display and the error code will be displayed. E02 = Motor hall sensor failure or Motor cable short circuit. E03 = Controller failure. E04 = Throttle failure.
