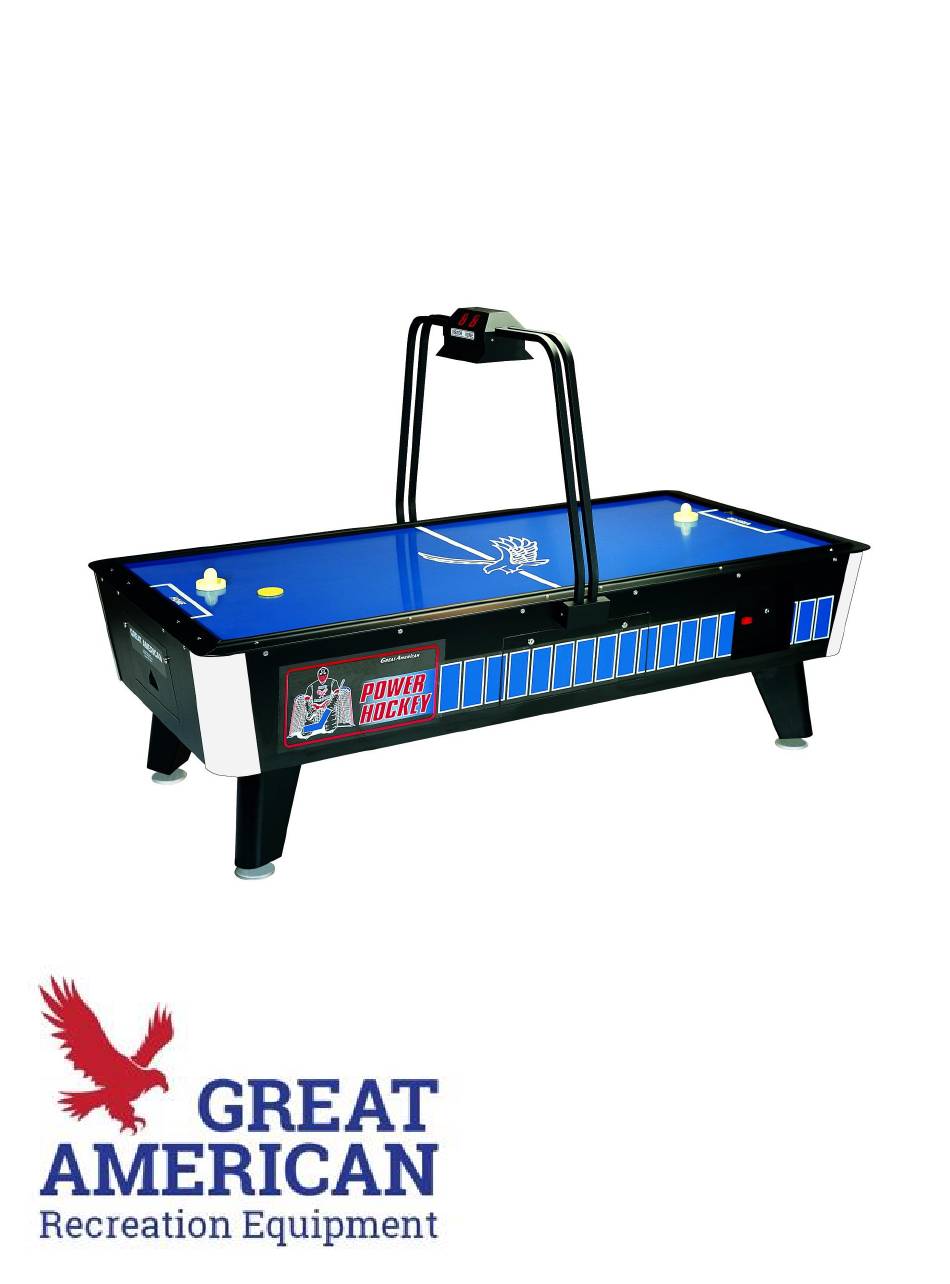

Power Hockey Overhead
Setup & Assembly Instructions
20 Providence Pike
North Smithfield, RI 02896
800-831-2011 • (f) 401-463-6673
www.GreatAmericanRec.com
games@greatamericanrec.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Power Hockey Overhead and is the answer not in the manual?

Questions and answers

Summary of Contents for Great American Recreation Power Hockey Overhead

  • Page 1 Power Hockey Overhead Setup & Assembly Instructions 20 Providence Pike North Smithfield, RI 02896 800-831-2011 • (f) 401-463-6673 www.GreatAmericanRec.com games@greatamericanrec.com...
  • Page 2: Parts List

    Parts List The following parts should be included with the Power Hockey Table: Legs with attached levelers (In a separate box) 1 1/2” x 3/8” #16 bolts (Inside cash box) keys (8 taped to outside of coin mechanism and 2 inside) mallets (Inside leg box) pucks (Inside leg box) The following parts should be included with the Light Bar:...
  • Page 3: Setup Instructions

    Setup Instructions 1. Locate keys taped to coin mechanism (or inside puck drop if non coin). 2. Remove 4 legs with levelers, and a bag of (16) bolts. 3. Attach legs to bottom of table using (16) 1 1/4” x 3/8” #16 bolts. (See figure 1) 4.
  • Page 4 Light Bar Assembly 1. Locate string taped to the side of the Power Hockey table. 2. Remove tape and pull out wire harnesses attached to the string. 3. Attach Light Bar with wire to the side on the table with exposed wire harnesses, using (6) 1 1/2”...
  • Page 5 Setting up the game options The Power Hockey game has the following factory set defaults: 1 coin mechanism throw allows 1 game with a maximum game time of 5 minutes. To change these settings, refer the DIP switch setting sheet attached to the inside of the power supply access door (see figure 3).
  • Page 6 Power Hockey Wiring Diagram Rev. 11/4/ 98...
  • Page 8 DIP Switch Settings (If Your Hockey has a GREEN LOGIC BOARD) TIME OPTIONS COINS PER CREDIT DIP SWITCH SETTINGS MAX. GAME DIP SWITCH SETTINGS TIME (min.) 1 COIN 1 CREDIT 1 COIN 1 CREDIT 1 COIN 1 CREDIT 1 COIN 1 CREDIT 1 COIN 1 CREDIT 1 COIN 1 CREDIT 1 COIN 1 CREDIT...
  • Page 9 DIP Switch Settings (If Your Hockey has a YELLOW LOGIC BOARD) AH2004(V1.05) DIP Switch Number 1 Description Value Of Play Score Of Play Timer (Minutes) Coins Play If using a slide mech this is set to one and the slide determines the pricing.
  • Page 10 * Denotes factory Setting AH2004(V1.05) DIP SW 2 Description Value Factor What should the pulses out of the DBA be divided or multiplied by to equal one coin. MULTIPLY* Multiply or Divide Pulses DIVIDE * Denotes Factory Setting Connector Pin Outs #1 is left hand pin facing connector and has square solder pad.
  • Page 11 +12VDC to Sound Board (Sound Port) TXD to Sound Board GND to Sound Board RXD from Sound Board Jl Edge Connector Pin Out Top (Parts Side) Bottom (Solder Side) AC IN 1 AC IN 1 Coin 2 Switch AC IN 2 DC Ground AC IN 2 DC Ground...
  • Page 12 Puck Lockout Soleniod Installation 1. Remove the side covers from the overhead score unit by removing two phillip screws on each end cap. 2. Disconnect the 3 wire connections for the overhead score unit. 3. Remove overhead score unit by removing 4 bolts in the side mounting bracket. 4.
  • Page 13 COIN-OP TABLES ONLY ESD COIN MECH PRICE CHANGE SHEET...
