Table of Contents
Summary of Contents for AcuraGlobal Wavetrend L-A210

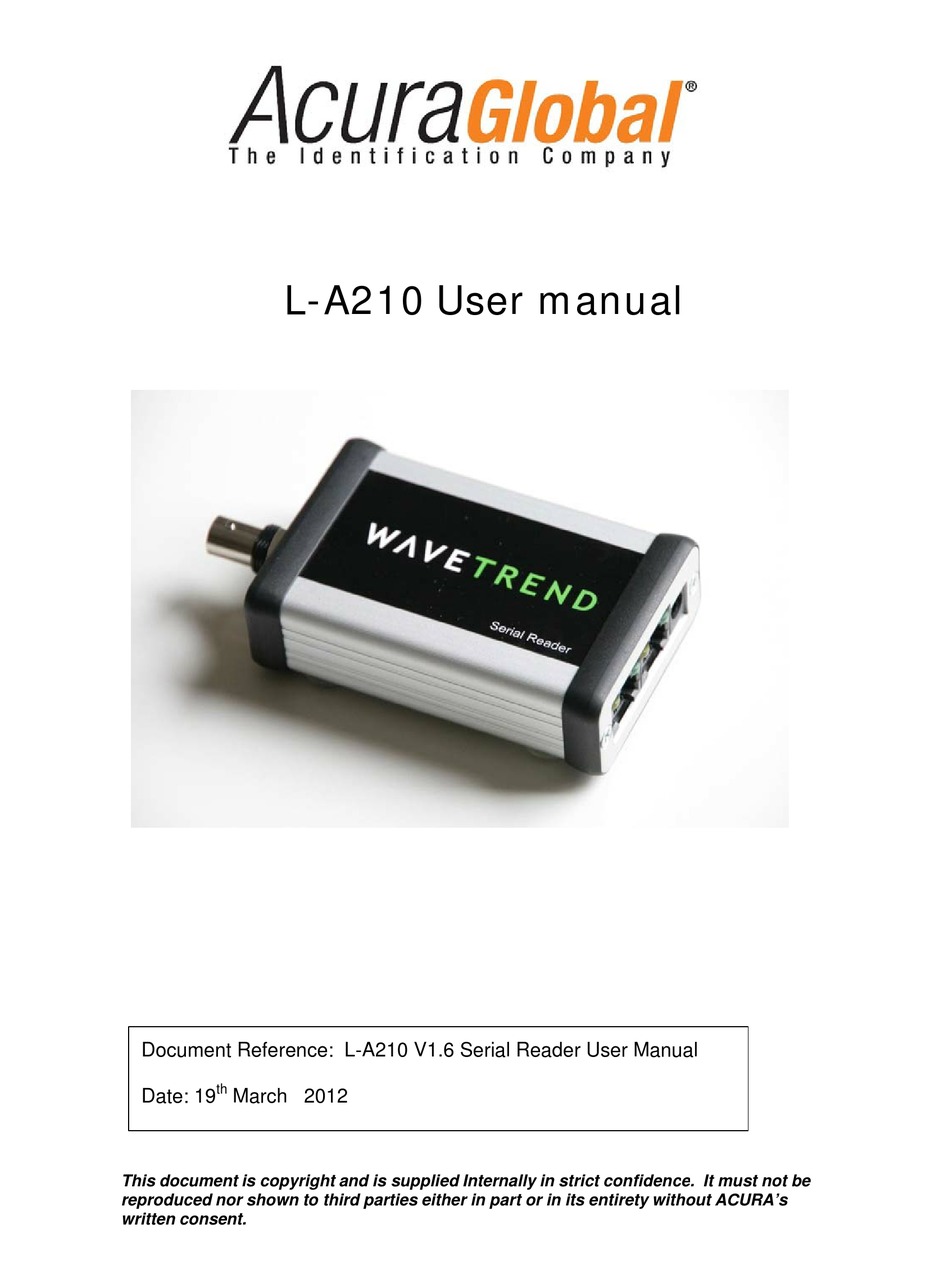

- Page 1 L-A210 User manual Document Reference: L-A210 V1.6 Serial Reader User Manual ...
- Page 2 ABBREVIATIONS Abbreviation Meaning Carriage Return End of Message Input/Input Identity Line Feed Least Significant Bit/Byte Meter Millimetre Most Significant Bit/Byte No Connection Personal Computer Power Radio Frequency RFID Radio Frequency Identification Receive Start of Message To be Announced Transmit Uninterruptible Power Supply RSSI Received Signal Strength Indicator...
-
Page 3: Table Of Contents
Product Compatibility ................5 Overview....................6 The Reader comprises the following functionality and properties:....6 New Generation reader Properties ............7 Functional Diagram ................8 Hardware Configurations...............9 Networking .................... 10 Single Network structure..............10 Basic Network Operation ..............11 ... - Page 4 Get Receiver Version Information Command........28 Set Protocol................... 29 Get Protocol ..................29 Set Info ....................30 Get Info ....................30 Status..................... 31 Interfaces and Connections ..............32 Interfaces..................32 RS232....................32 Connections..................33 USB Connection................33 ...
-
Page 5: Product Compatibility
1 Product Compatibility The L-A210, L-A211 and IPSU are cat5 Patch lead friendly products. The Cat5 patch lead family of products are not in any way compatible with the legacy wiring loom products and can cause them damage. ... -
Page 6: Overview
ACURA’s 2 Overview The L-A210 Serial reader is the latest incarnation of the classic RS232, RS485 type network and part of the new generation of patch lead friendly products including the L-A211 and IPSU. ... -
Page 7: New Generation Reader Properties
ACURA’s 2.1 New Generation reader Properties The L-A202/L-A210 and L-A211 family are significantly different from there predecessor the L-A201. These differences are summarized here and explained in more detail throughout the manual. Front End Filtering The L-A202 / L-A210 / L-A211 utilize front end RF filtering allowing them to work extremely effectively in noisy RF environments including in direct proximity to other 433MHZ emitters including TETRA band. -
Page 8: Functional Diagram
ACURA’s 2.2 Functional Diagram The L-A210 Reader has the following functional structure. RF Receiver Microprocessor Memory Indication Controller RS232 Port Left RS485 Right RS485 USB Port ... -
Page 9: Hardware Configurations
ACURA’s 3 Hardware Configurations. ACURA’s recommend the following configuration methods Single reader for Demo Purposes The L-A210 when used as a standalone unit can draw power over the USB USB lead L-A210 Reader Network USB Host to RS485 The IPSU supports USB, RS232 and RS485 allowing it power up to 8 readers over RS485* Dependent on cable lengths. -
Page 10: Networking
ACURA’s 4 Networking 4.1 Single Network structure The L-A210 readers are connected together in a daisy chain type format. That is, Reader 1 is connected to Reader 2 is connected to Reader 3 etc. The network can handle a maximum of 254 readers because of addressing constraints. -
Page 11: Basic Network Operation
ACURA’s 4.2 Basic Network Operation Data passed up and down this network is arranged in a packet format. (Explained later). Each reader can be individually addressed via 2 address techniques, or the entire network can be broadcast to by assigning the destination address as value 255. -
Page 12: Establishing Node Id Addressing (Automatic Assignment)
ACURA’s Each Command and Response is formatted into a specific packet of data with error checking etc included in the protocol format. Data can only flow in one direction at a time since the hardware is using a single serial port to control all this serial data. In order to make the installation of this system easier, it was necessary to stop the need of having to give each reader and individual address via a dipswitch or other plug in computer methods. -
Page 13: Packet Control
ACURA’s 6. Once Reader 1 has been established, it will start continuously sending its NODE ID out of the right hand RS485 port. This will be a continuous ' 1 ' and lasts for 500ms. 7. - Page 14 ACURA’s RS232 2 wire RS485 2 wire 2 wire 2 wire 2 wire RS485 RS485 RS485 RS485 "ABCD In the idle mode, data can be received from either direction. Since there is only one serial port on the microprocessor, the header byte received will determine from which direction the packet is being received.
-
Page 15: Auto Polling
ACURA’s Each time a valid packet is received, the Packet RX LED will flash. This can be used to determine whether valid communications is taking place. Response packets are now sent back exactly the same way as the command packet, but in the opposite direction. - Page 16 ACURA’s Auto Polling sequences start with a complete system communications reset to ensure that the network is seen correctly. This happens each time the auto polling is switched on even at power up. RX210 User Manual Page 16 of 35 ...
-
Page 17: Protocols And Addressing
ACURA’s 5 Protocols and Addressing As mentioned earlier data flowing on this network have a specific packet format. This format is defined as follows: 5.1 Command Packets Data Network Receiver Node Command Data Checksum All bytes are HEX Values ... -
Page 18: Addressing Techniques
ACURA’s 5.3 Addressing Techniques The addressing system for these networks has been made as flexible as possible. This will allow for various configurations and keep the system open for later expansion etc. When addressing a reader, there are 3 addresses to take into account:- 1. - Page 19 ACURA’s Some examples would be as follows:- Invalid - will have no response Access Reader with Reader ID = 12 Access Reader 5 on the network Access Reader 5 on the network. Reader ID address is ignored Invalid - will have no response Access Reader with Reader ID = 4 on Network 1 Access Reader 123 on the Network 1...
-
Page 20: Commands
ACURA’s 6 Commands 6.1 Command shortlist Shortlist of commands and requests (Command ID’s): 0x00 Reset Network Reply Packet 0x01 Start/Enable Auto Polling Continuous 0x02 Disable Auto Polling Reply Packet 0x03 Ping Reader Reply Packet + Error 0x04 Set Network ID Reply Packet... -
Page 21: Command Details
ACURA’s 6.2 Command Details Reset Network Command The function of this command is to reset the entire network, and re-establish the NODE ID addresses. The NODE ID address in the command packet should hold a 255 (broadcast value) to ensure that the entire network enters into the reset sequence. -
Page 22: Disable Auto Polling Command
ACURA’s Disable Auto Polling Command The function of this command is to disable future Auto Polling after power up by resetting the Auto Polling flag in the Data EEPROM. This command can be addressed directly to reader 1, or on a broadcast basis. ... -
Page 23: Set Network Id Command
ACURA’s Set Network ID Command The function of this command is to assign the Network ID as well as commit it to the Data EEPROM. Command 0XA 0x01 Network Receiver Node ID 0x04 New Network Checksum Response ... - Page 24 ACURA’s The Data Field would have this format: Interval Reed Switch Counter Firmware version Movement switch counter Age byte MSB Age byte Age byte Age byte LSB Site code MSB Site code Site code LSB Tag ID MSB...
-
Page 25: Set Rssi Value Command
ACURA’s Set RSSI Value Command This command will set the RSSI value and commit it to the Data EEPROM. It also initiates an RF Module reset and writes the new value to the RF Module. Broadcasts here are useful to set all the readers to their most sensitive etc. The RSSI Value ranges from 0 to 255. -
Page 26: Set Receiver Gain Command
ACURA’s Set Receiver Gain Command This command will set the RF Module into its 2 different gain levels. Command 0xA 0x01 Network Receiver Node 0x0B Gain Checksum Gain = 0 (Low Gain Mode – Short range reader) Gain = 1 (High Gain Mode –... -
Page 27: Get Invalid Tag Count
ACURA’s Network Receiver Node Statu Checksum Status = 0 - Report all tags Status = 1 - Report only tags with an Alarm condition Status = 2 - Report only tags without any Alarm condition Get Invalid Tag Count ... -
Page 28: Get Environmental Noise Level Value
ACURA’s Get Environmental Noise Level Value This command will retrieve the calculated value (between 0 and 255) of the environmental white noise level. Take note that this command can only follow after the Start Environmental Noise Level Value Calculation. If a command is send down to the unit, while still in evaluation mode, the reader will cancel the calculation process, reset and continue normal operation. -
Page 29: Set Protocol
ACURA’s RFV - RF Module Firmware Version CHV - Controller Hardware Version RHV - RF Module Hardware Version Set Protocol The L-A202, L-A210 and L-A211 support the L series+ protocol as well as the existing L series protocol. -
Page 30: Set Info
ACURA’s Set Info The serial readers are part of the larger ACURA’s Reader family, some of which include GPS. In order to harmonize the software interface between the serial readers and the GPS enabled units RX910, RX1010, RX1310 the command allows the user to set the following fields ... -
Page 31: Status
ACURA’s Location: Latitude – 4 bytes Longitude – 4 bytes User Data: 10 bytes RSSI threshold: 1 byte Site code filter: 3 byte Alarm filter: 1 byte Network Voltage: 1 byte Not used: 21 bytes Protocol (1 byte):0 = legacy, 1 = no nulls, 2 = L-Plus Controller Firmware Version (1 byte) RF Module Firmware Version (1 byte) Controller Hardware Version (1 byte) -
Page 32: Interfaces And Connections
ACURA’s 7 Interfaces and Connections 7.1 Interfaces The interface standards are as follows: Interface Serial RS232 / RS485 Baud 115 kB/s, 57.6 kB/s, 38.4 kB/s, 19.2 kB/s, 9.6 kB/s Selectable via program port Parity None ... -
Page 33: Connections
ACURA’s 7.3 Connections The L-A210 has 2X RJ45 connectors and a 2.5mm Power socket on the back. The RJ45’s are configured as follows L-A210 Left Port Right Port RS232 – RX RS232 – TX Straight Through Straight Through Straight Through... -
Page 34: Diagnostics
ACURA’s 8 Diagnostics 8.1 Diagnostic LEDS The 4 LED's on the RJ45 connectors indicate functions of the system and are used entirely for diagnostic purposes. Their assignments are as follows (from left to right): 8.1.1 Normal Mode ... -
Page 35: Specifications
ACURA’s 9 Specifications Environmental Operating temperature : -40 C to +85 Storage temperature : -20 C to +70 Humidity : 5% to 90% (non condensing) Physical Size : 105 mm x 58mm x 28mm ... -
Page 36: Certification
ACURA’s 10 Certification The following standards applied in accordance with Article 5 of the directive, 1999/5/EC: EN 300 220-1 V1.2.1 (1997-11) ETS 300 683 (1997-03). Summary of tests: Test Type Effective radiated power 25 MHz-4 GHz EN55022 Radiated emissions 30 MHz –...
