- Page 1 Manual LightDriver 5.0 EN Manual Light Driver 5.0 13.09.2018 V2.1 | innoflyer, weissensteinstrasse 81, 4500 solothurn | www.innoflyer.ch...
-
Page 2: Table Of Contents
General Settings ................. 13 Load / Save Light Project ..............15 Firmware Updater ................15 Expanding the system, Master-Slave operation ......... 15 Output LED State .................. 16 Recycling ....................17 Warranty ....................17 13.09.2018 V2.1 | innoflyer, weissensteinstrasse 81, 4500 solothurn | www.innoflyer.ch... -
Page 3: Change History
General Settings Standby mode p.14 Master Slave Standby mode p.15 Output LED state p.16 Manual compatible with LightCockpit v2.x, Firmware v2.x V2.1 macOS Support p.5 Manual compatible with LightCockpit v2.x, Firmware v2.x 13.09.2018 V2.1 | innoflyer, weissensteinstrasse 81, 4500 solothurn | www.innoflyer.ch... -
Page 4: Product Description

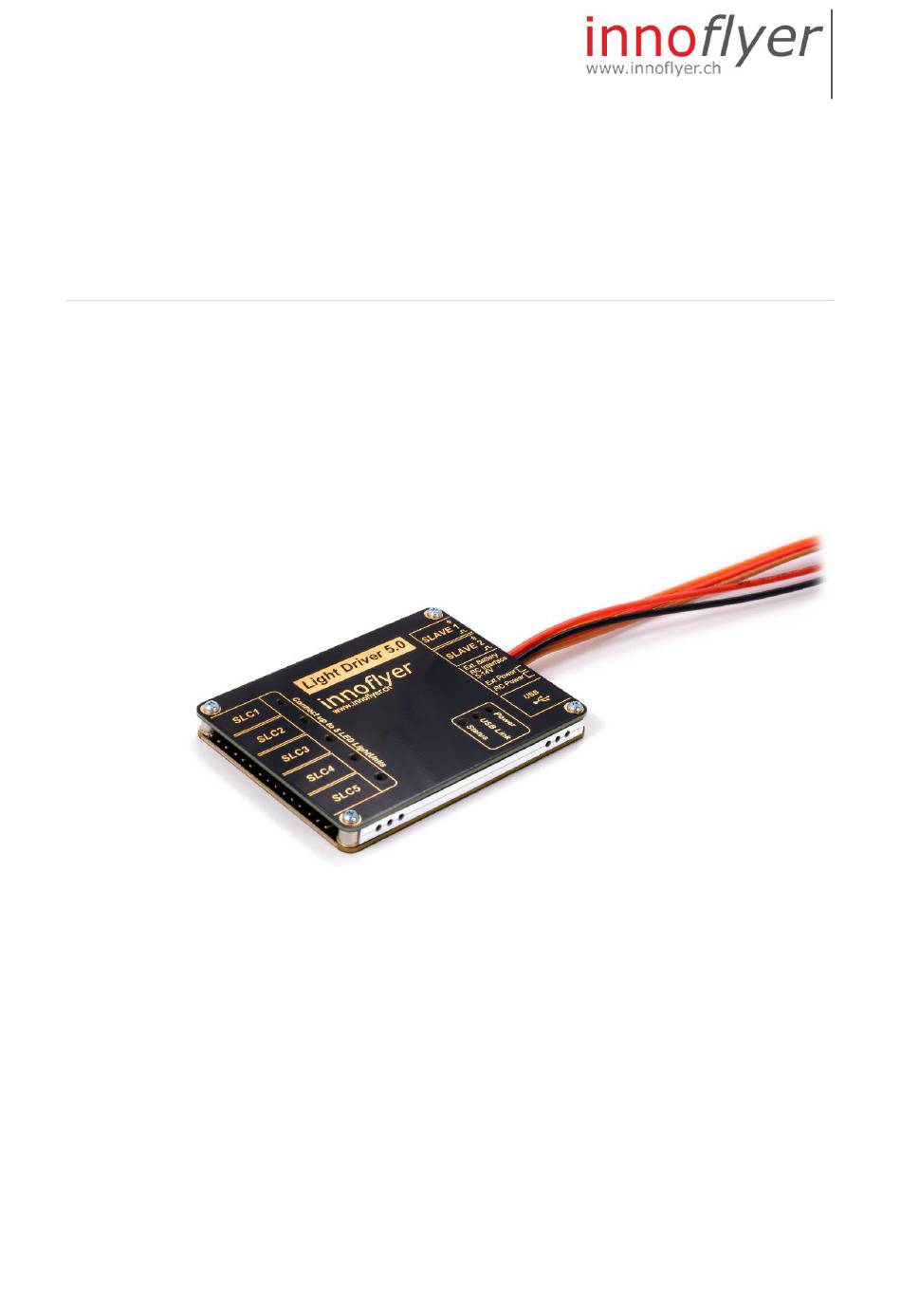

RC aeroplane model construction. Each of the 5 Smart Light Channels (SLCs) controls and monitors a connectable innoflyer aircraft LED light. Thanks to modern circuit topologies, series resistors are no longer necessary. Maximum Light Tracking (MLT) and Plug&Play recognition of the connected aircraft LED lights guarantee an optimal temperature and maximum light output of the LEDs. -
Page 5: Specifications
LED lights based on the current LED temperature EMC/CE: EMC 2014/30/EU EN 61000-6-3/1 | EN55015:2013 2011/65/EU RoHS2 Light Cockpit: Windows 8.1 / Windows 10 macOS 10.11 El Capitan or later 13.09.2018 V2.1 | innoflyer, weissensteinstrasse 81, 4500 solothurn | www.innoflyer.ch... -
Page 6: Measurements
Manual LightDriver 5.0 EN Measurements 13.09.2018 V2.1 | innoflyer, weissensteinstrasse 81, 4500 solothurn | www.innoflyer.ch... -
Page 7: Layout And Connection Assignment
• innoflyer aircraft LED lights are reverse polarity protected and cannot be connected to the SLC incorrectly. Thanks to Plug&Play and MLT, the LEDs are automatically supplied with the correct current. The temperature is permanently monitored. -
Page 8: Start-Up
0: -100%, centre: 0%, pos 1: +100% Connect your innoflyer aircraft LED lights to the Light Driver 5.0 in keeping with the following cable assign: SLC 1... -
Page 9: Individual Programming With Lightcockpit | First Steps
In order to carry out the programming, you need a Windows or macOS Computer and the LightCockpit Software. LightCockpit can be downloaded for free on our website www.innoflyer.ch. Install LightCockpit and follow the instructions provided by the Setup wizard. - Page 10 USB connection with the Light Driver 5.0. The configuration of the Light Driver 5.0 is automatically loaded in LightCockpit. Congratulations, you're ready to go! 13.09.2018 V2.1 | innoflyer, weissensteinstrasse 81, 4500 solothurn | www.innoflyer.ch...
-
Page 11: Individual Programming With Lightcockpit | Details
The Composer enables you to configure the Patterns of the 5 SLCs as well as carry out SLC specific configurations (SLC Settings). The SLC Settings are configured by SLC channel (SLC1-5). 13.09.2018 V2.1 | innoflyer, weissensteinstrasse 81, 4500 solothurn | www.innoflyer.ch... - Page 12 MLT), le Light Driver 5.0 automatically operates the LEDs with the correct current and carries out thermal monitoring. If you are using Third-Party LEDs or old innoflyer light sources from the A2 series, you will need to switch the Plug&Play mode off and select the LED current manually.
-
Page 13: General Settings
3-way switch: Centre-Pos0-Centre-Pos1-Centre-Pos0-Centre-Pos1- Centre (Channel direction: PWM Pos0 < PWM Centre < PWM Pos1) Use Night Operation to prevent lighting from being dazzling during twilight, for instance. 13.09.2018 V2.0 | innoflyer, weissensteinstrasse 81, 4500 solothurn | www.innoflyer.ch... - Page 14 SLC 1-5 after the RC signal is lost by the selected period of time. If a UVA is set, it rests activated in active standby mode. 13.09.2018 V2.0 | innoflyer, weissensteinstrasse 81, 4500 solothurn | www.innoflyer.ch...
-
Page 15: Load / Save Light Project
Light Driver 5.0 up to date with new technologies. New versions of the Light Driver 5.0 Firmware are published at www.innoflyer.ch. Load the Firmware file onto your PC and open it with the "Load" button. Start the updating process by clicking on the "Update"... -
Page 16: Output Led State
A temperature limiter is active. The performance of at least one LED is reduced. ─..─..─..─..─..─..─..─..─..─..─..─..─..─..─.. Bootloader active, no valid Firmware found. ─....─....─..... Standby mode Key: ─ LED is on, ..LED is off 13.09.2018 V2.0 | innoflyer, weissensteinstrasse 81, 4500 solothurn | www.innoflyer.ch... -
Page 17: Recycling
In case of commercial use of raible eflugtechnik products and services, in keeping with the Product Liability Act, no liability is accepted. 13.09.2018 V2.0 | innoflyer, weissensteinstrasse 81, 4500 solothurn | www.innoflyer.ch... - Page 18 Manual LightDriver 5.0 EN innoflyer by raible eflugtechnik weissensteinstrasse 81 CH-4500 solothurn Switzerland Phone: 0041 32 623 19 68 info@innoflyer.ch www.innoflyer.ch 13.09.2018 V2.0 | innoflyer, weissensteinstrasse 81, 4500 solothurn | www.innoflyer.ch...
