Summary of Contents for Velleman K8018W

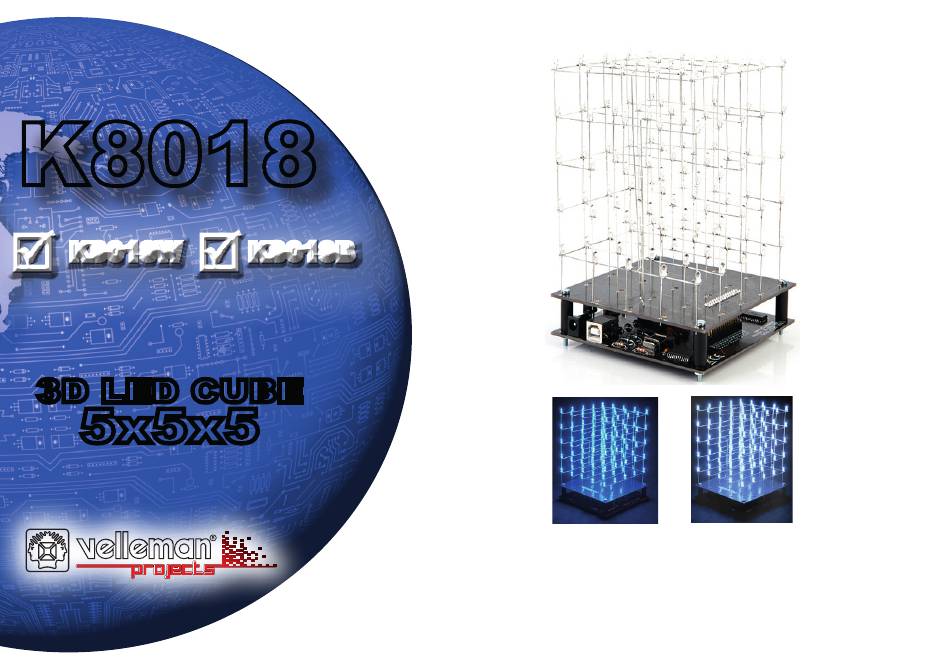

- Page 1 K8018 ILLUSTRATED ASSEMBLY MANUAL H8018IP’1 K8018W K8018B 3D LED CUBE 5x5x5 K8018B (Blue LED) K8018W (White LED) Connect to your computer and create your own 3D LED effect.
- Page 2 Subscribing our newsletter?, visit www.vellemanprojects.eu Forum Forum Participate our Velleman Projects Forum...
- Page 3 Build your 3D led cube and created unlimited 3D effects. The unit comes standard loaded with effects. Connect to your computer (USB) and create your own! Features • LEDs: 5 x 5 x 5 = 125 LEDs Expert soldering • user programmable via USB (creation of animation/scenes) skills required! • large amount of user programmable frames • frames are separately dimmable • 4 transition speeds • available frames: 3200 • 5 levels LED dimming available...
- Page 4 Leds and how to use them Leds feature a specific voltage Never connect leds in parallel drop, depending on type and colour. Check the datasheet for exact voltage drop and rated current ! How to Calculate the series resistor: Example: operate a red led (1.7V) on a 9Vdc source. Required led current for full brightness: 5mA (this can be found in the datasheet of the led) Supply voltage (V) - led voltage (V) = series resistance (ohms) required current (A)
- Page 5 assembly 1. Assembly (Skipping this can lead to troubles ! ) hints Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully. 1.1 Make sure you have the right tools: • A good quality soldering iron (25-40W) with a small tip. • Wipe it often on a wet sponge or cloth, to keep it clean;...
- Page 6 DO NOT BLINDLY FOLLOW THE ORDER OF THE COMPONENTS ONTO THE TAPE. ALWAYS CHECK THEIR VALUE ON THE PARTS LIST! - 6 -...
-
Page 7: Ceramic Capacitors
Watch the position of the notch! ‰ IC1: 28p SMD IC Watch the position of the notch! COLOR= 2...5 Watch the polarity! CONTROLLER-PCB LD... ‰ LD1 : 3mm RED CATHODE ‰ IC2, IC3: STP16CP05 WWW.VELLEMAN.EU Push buttons P8018'1 3D LED CUBE Diodes 5x5x5 = 125 LEDS (Check polarity!) ‰ SW1 : Mode D... ‰ SW2 : SPEED Resistors ‰ D1...D3: 1N4007 CATHODE R... Ceramic Capacitors Quartz crystal ‰... -
Page 8: Electrolytic Capacitors
‰ C1 : 470µF Transistors Voltage regulator ‰ T1 ... T5 : BC640 T ... DC-Jack ‰ SK3 : 9VDC ‰ VR1 : LM317 NOT OK! USB connector Watch the position WWW.VELLEMAN.EU of the notch! P8018'1 3D LED CUBE 5x5x5 = 125 LEDS LED-PCB PLANE-5 PLANE-4 PLANE-3 PLANE-2 PLANE-1 ‰ SK2 ‰ IC1: VK8018... - Page 9 Construction ASSEmBLy of ThE LEDS x 20 Step 2 Solder View the assembly movie of MK193 as Bend guideline for assembly of the LEDs. x 100 Step 1 COLOR= 2...5 LD... CATHODE Bend Step 3 + 2mm - 9 -...
- Page 10 Construction x 25 Step 4 Step 5 Bend Bend Solder Step 6 Solder Bend - 10 -...
- Page 11 Construction Step 7 Step 8 Solder - 11 -...
- Page 12 Construction Step 11 Step 9 Step 10 Solder - 12 -...
- Page 13 Software Download the LEDcube software on our website www.velleman.eu For software, visit www.vellemanprojects.eu Help instructions Create, edit or remove your own animation Choose 5x5 to send or read the animations of your 5x5x5 LED cube. - 13 -...
- Page 14 - 14 -...
- Page 15 Diagram LM317 1N4007 1N4007 DC JACK +5Vpic 1N4007 PLANE1 COL1.1 COL1.1 PLANE2 COL1.2 COL1.2 LED3RL PLANE3 COL1.3 COL1.3 PLANE4 COL1.4 COL1.4 BC640 PLANE5 COL1.5 COL1.5 ICSP CONNECTOR USB CON MINI PLANE1 COL2.1 COL2.1 +5Vpic COL2.2 COL2.2 COL2.3 COL2.3 100n STP16CP05MTR COL2.4 COL2.4 COL1.1...
- Page 16 The new Velleman Projects catalogue is now available. Download your copy here: www.vellemanprojects.eu Modifications and typographical errors reserved - © Velleman nv. H8018’IP Velleman NV, Legen Heirweg 33 - 9890 Gavere.
