XTR-8LR-4ZN
---------------------------------------------------------------------------------------------------------------------------------------------------
User manual
KEYFOB XTR-8LR-4ZN

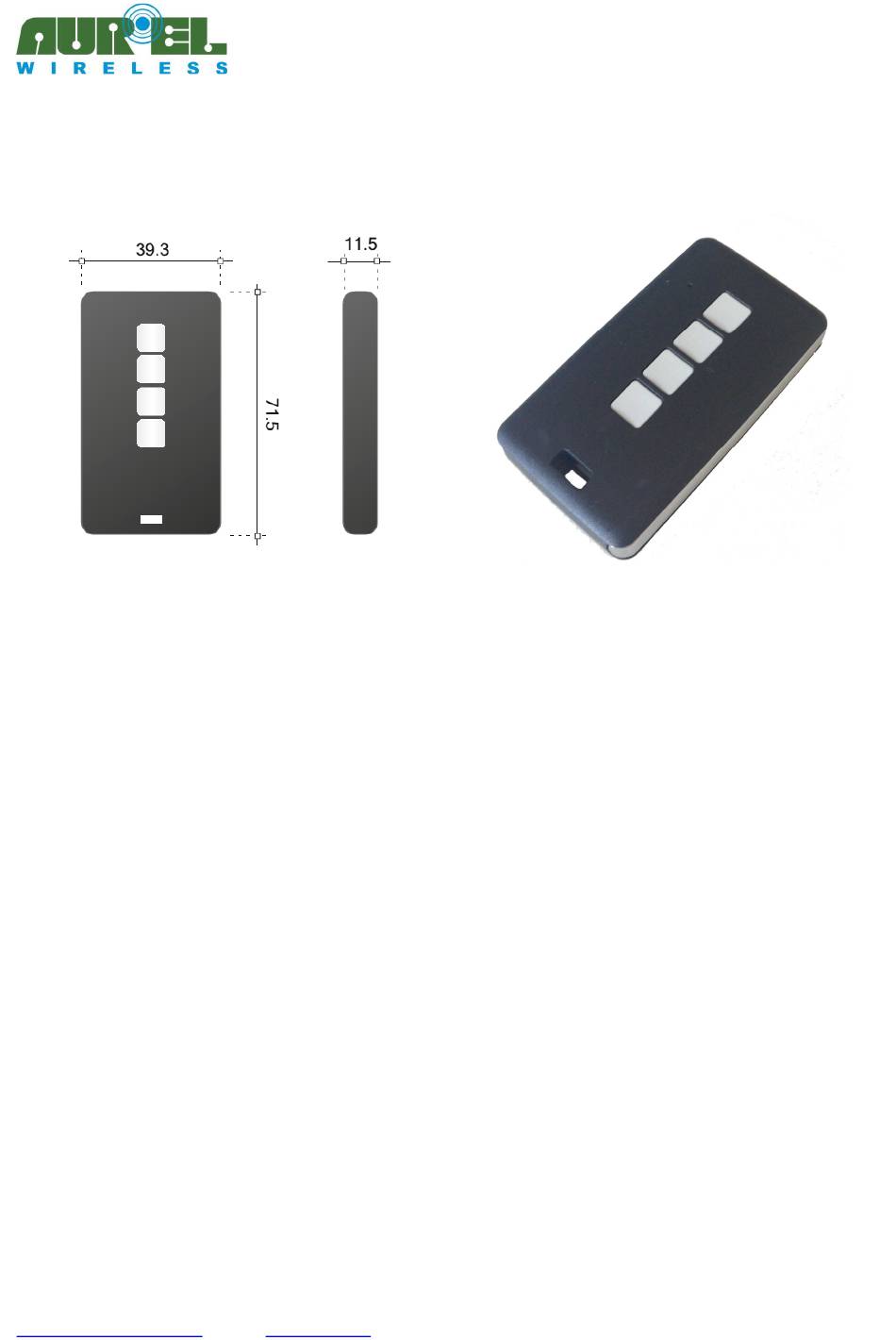

Figure 1
Figure 2
TM
Keyfob based on LoRa
modulation able to guarantee very long range communication, high interference
immunity , very high sensitivity and very low current consumption.
XTR-8LR-4ZN, to be paired with Aurel receiver XTR-8LR-DEC, allows to activate remote loads connected
to the receiver. It embeds a secure encrypted RF communication.
It's ideal when it has to activate and control loads at very long distance like, for example, in irrigation or
alarms systems applications.
The bidirectional communication allows to know if the XTR-8LR-DEC output has been activated and his
status.
Le caratteristiche tecniche possono subire variazioni senza preavviso. AUR°EL S.p.A. non si assume la responsabilità di danni causati dall'uso improprio del dispositivo.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------
AUR°EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) – ITALY
Rev 3.0 31/01/2018
Pag 1 di 5
Tel.: +39.0546.941124 Fax: +39.0546.941660
http://www.aurelwireless.com
- email:
rfcomm@aurel.it
Advertisement
Related Manuals for AUREL XTR-8LR-4ZN
Summary of Contents for AUREL XTR-8LR-4ZN
- Page 1 , very high sensitivity and very low current consumption. XTR-8LR-4ZN, to be paired with Aurel receiver XTR-8LR-DEC, allows to activate remote loads connected to the receiver. It embeds a secure encrypted RF communication.
-
Page 2: Operation Of The Device
User manual Operation of the device XTR-8LR-4ZN has a unique serial number therefore it always needs to be paired with Aurel XTR-8LR-DEC (decoder) module by means of learning procedure described in decoder user manual. The device is always in power down mode and it has 2uA maximum current consumption. -
Page 3: Replacing The Battery
XTR-8LR-4ZN --------------------------------------------------------------------------------------------------------------------------------------------------- User manual Replacing the battery The user should apply the following procedure: 1. Using the Phillips screwdriver, remove the accessible screw on the lower housing of the radio remote control. 2. Lift up the top cover of the remote control and then split the two half housing. - Page 4 -20 +70 °C Manufacturer's Declaration of Conformity EU Hereby, Aurel S.p.A. declares that the radio equipment type XTR-8LR-4ZN is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.aurelwireless.com/declaration-of-conformity/ The radio remote control operates at 868.3MHz (ISM frequency band 868 - 868.6 MHz) with maximum...
- Page 5 XTR-8LR-4ZN --------------------------------------------------------------------------------------------------------------------------------------------------- User manual Firmware version summary Firmware Release date Changes from the previous version version 10/01/2017 First stable version 03/02/2017 Minor bugs fixed 10/04/2017 Minor bugs fixed Modified led blinks during transmission and added led blinks as feedback 31/01/2018 of the activated output status on the decoder.
