S-4607 SDI / Optical Fiber Bi-directional Converter
1. Characteristics
◆
Portable full-duplex bi-directional 3G/HD/SD-SDI and Optical Fiber converter
◆
Single-mode optical fiber, max 20km reliable transmission
Support hot swap of optical module
◆
Heavy duty housing, with bottom screw threads for installing
◆

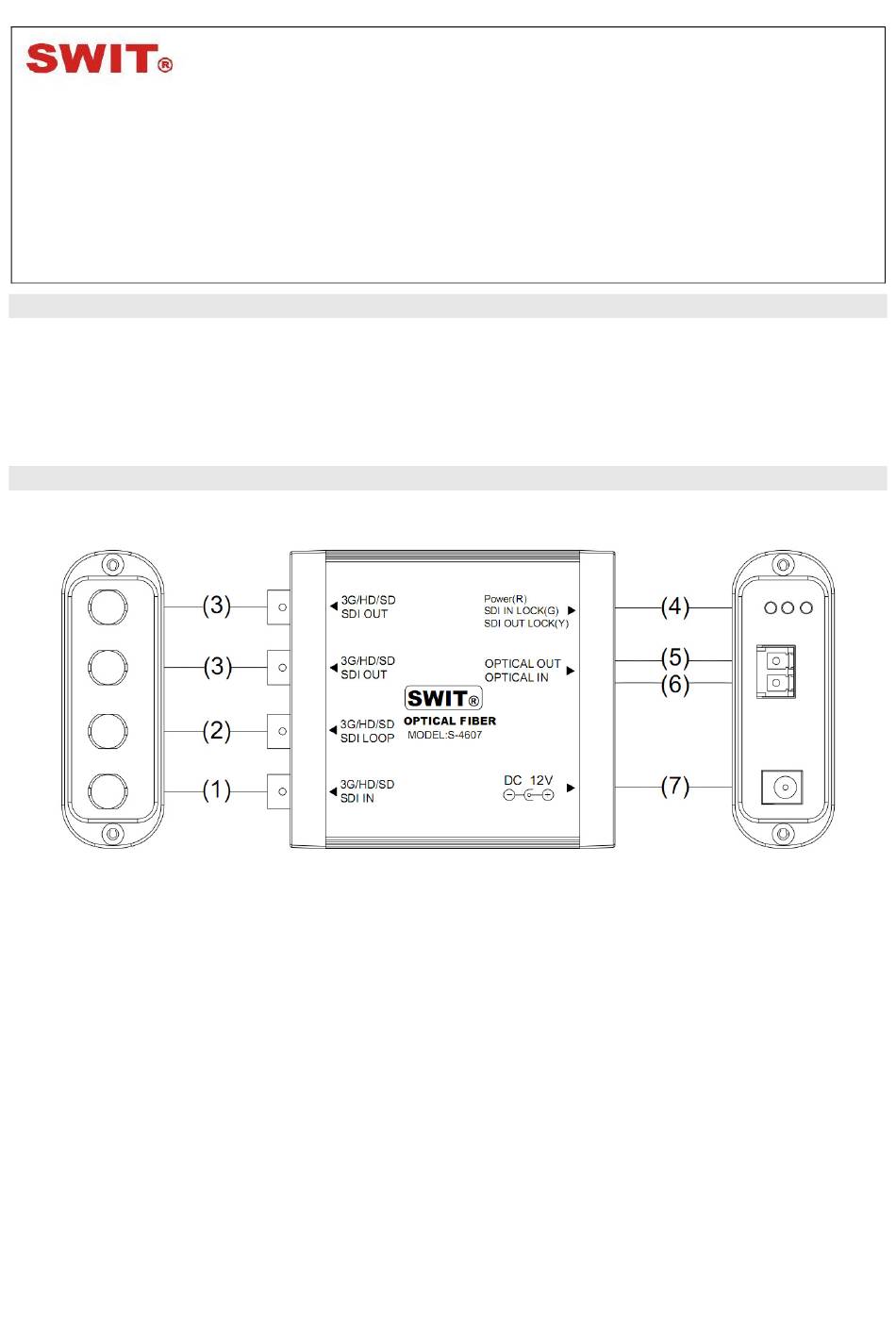

2. Product View
Left side view
SDI IN: 3G/HD/SD-SDI input (BNC)
⑴
⑵
SDI LOOP: 3G/HD/SD-SDI loop through output (BNC)
SDI OUT: 3G/HD/SD-SDI convert output x2 (BNC)
⑶
LED status indicator
⑷
⑸
OPTICAL OUT: Optical fiber convert output (LC)
OPTICAL IN: Optical fiber input (LC)
⑹
DC 12V: 5.5mm pole DC input
⑺
USER MANUAL
SWIT Electronics Co., Ltd.
Front view
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
Right side view
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for SWIT Electronics S-4607
-
Page 1: User Manual
S-4607 SDI / Optical Fiber Bi-directional Converter USER MANUAL SWIT Electronics Co., Ltd. Tel:+86-25-85805753 Fax:+86-25-85805296 http://www.swit.cc E-mail: contact@swit.cc 1. Characteristics ◆ Portable full-duplex bi-directional 3G/HD/SD-SDI and Optical Fiber converter ◆ Single-mode optical fiber, max 20km reliable transmission Support hot swap of optical module ◆... - Page 2 3. Working Flow Forward direction: Reverse direction: Remark: The S-4607 bi-directional conversions work simultaneously. 4. LED status Indicators ⑴ Power (Red): Power indicator ⑵ SDI IN LOCK (Green): SDI input indicator, lights on when there’s SDI input recognized SDI OUT LOCK (Yellow): SDI output indicator, lights on when there’s SDI output recognized...
- Page 3 Screw hole 5 Screw hole 6 Match the screw holes 1&2 with the threads 1&2 of S-4607, and fix the installation plate to the S-4607 by the supplied screws. The screw holes 3, 4, 5, 6 are used to install the converter to wall or racks.
