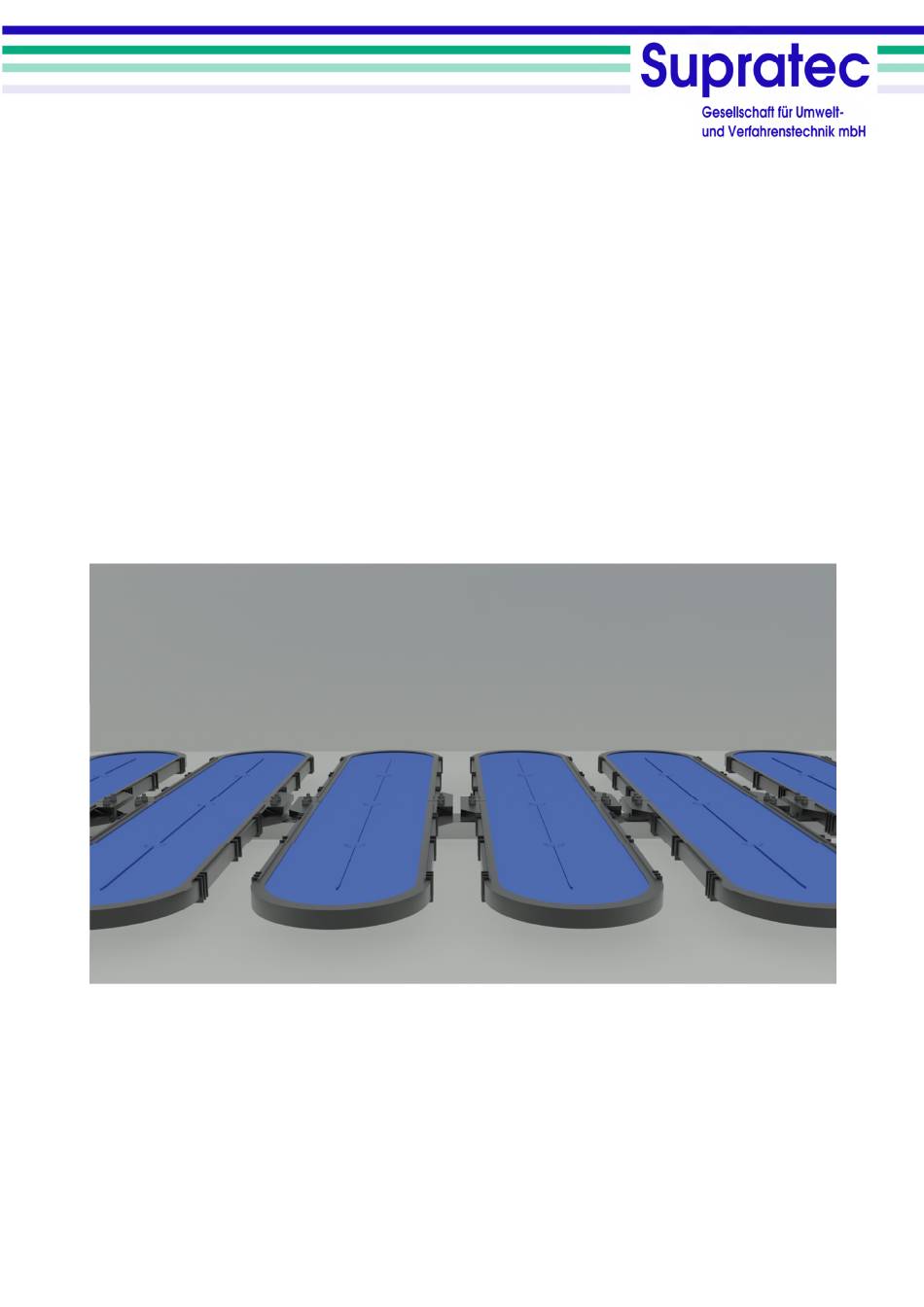

OXYFLEX
- MF1100
®
Membrane Plate Diffuser
for fine bubble and coarse bubble diffusion of liquids
INSTALLATION, OPERATING and MAINTENANCE
INSTRUCTIONS
The OXYFLEX
- MF1100 membrane plate diffuser consists of a flat, heavily ribbed base plate with air-sockets. A
®
two-piece frame secures the membrane to the base plate. The base plate and the frame are made from fibre glass-
reinforced polypropylene, and the membrane is available in EPDM or TPU.
von-Drais-Straße 7 • D-55469 Simmern / Hunsrück • Tel: +49 6761 96509-00 • Fax: -01 • www.oxyflex.de • info@oxyflex.de (Status Dec. 2018)
Advertisement
Table of Contents
Summary of Contents for Supratec OXYFLEX MF1100
- Page 1 OXYFLEX - MF1100 ® Membrane Plate Diffuser for fine bubble and coarse bubble diffusion of liquids INSTALLATION, OPERATING and MAINTENANCE INSTRUCTIONS The OXYFLEX - MF1100 membrane plate diffuser consists of a flat, heavily ribbed base plate with air-sockets. A ® two-piece frame secures the membrane to the base plate.
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS Dimensions Free membrane area: 0.2 m² Materials: Membrane: EPDM (ethylene propylene diene rubber) TPU (thermoplastic polyurethane) Base plate: Polypropylene (PP-GF) Frame: Polypropylene (PP-GF) Gaskets: EPDM The distance between the diffusers on the distribution pipe (connection hole axis) should be at least 280 mm and must not exceed 1,000 mm (differences possible on request). - Page 3 ® depending on version). The distribution pipes must be levelled to a maximum of ± 10 mm. For installation on round pipes with Supratec supporters, the pipe clamps must be tightened with torque of 10 Nm (M10); 20 Nm (M12). The surface pressure that this produces ensures that installation is distortion-free.
- Page 4 Type 'AS': Installation on round pipe The OXYFLEX - MF1100 type 'AS' membrane plate diffuser is attached to a round pipe made from stainless steel ® or plastic using a clamp saddle. Bore holes with a diameter of Ø 25 mm are drilled in a central position on top of the round pipe. The top part of the clamp saddle that is welded to the OXYFLEX - MF1100 membrane plate diffuser has a supply air pipe connection.
- Page 5 Type "SA": Fitting to square pipes with holes at side The OXYFLEX - MF1100 type 'SA' membrane plate diffuser is secured using side adapters to square pipes with ® two bore holes in the side. A flat gasket made from EPDM is inserted between the square pipe and the side adapter or the square pipe and the counter piece.
-
Page 6: Operating Instructions
However, a bubble pattern test or an oxygen transfer test can be carried out no sooner than 24 hours after start-up (for specific load see table 2 on page 8). Deviating procedures are possible in consultation with Supratec. Bubble pattern The bubble pattern should be assessed no sooner than when the above-described run-in of the diffusers has been completed. - Page 7 (for more than 40 hPa compared to commissioning), Supratec should be consulted immediately. Particularly in the case of systems that are operated intermittently, there is a risk that damaged diffusers can allow the ingress of live sludge into the entire pipework system.
- Page 8 For this purpose, we offer a mobile dosing station for perfectly metered cleaning. Please contact Supratec for further information about acid dosing. Repair measures Our more than 30 years of experience have shown that the OXYFLEX - MF1100 membrane plate diffuser is an ®...
