Summary of Contents for Rok 150-23-52350

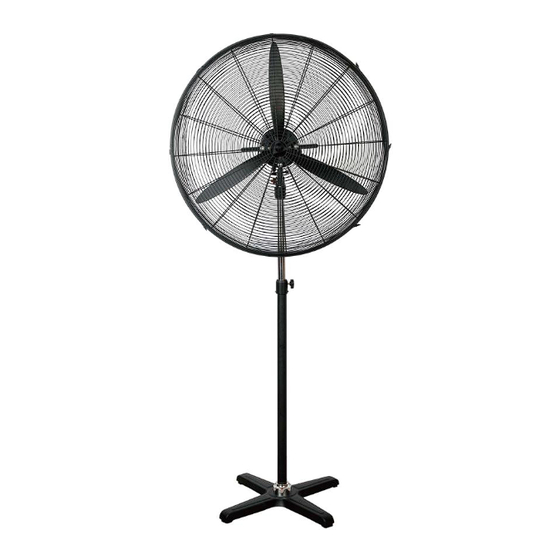

- Page 1 750mm Pedestal Fan with Bonus Wall Mount Kit Model No. 150-23-52350 750mm Pedestal Fan with Bonus Wall Mount Kit INSTRUCTION MANUAL Warning: For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 2 GENERAL SAFETY RULES WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
- Page 3 Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Thank you for purchasing this ROK 750mm Pedestal Fan with Bonus Wall Mount Kit Model 150-23-52350. Please read this leaflet thoroughly and follow the instructions...
- Page 4 carefully, in doing so you will ensure the safety of yourself and that of others around you, and you can look forward to the product giving you long and satisfactory service. SAFETY RULES FOR ELECTRIC FAN WARNING: As with all machinery there are certain hazards involved with their operations and use.
- Page 5 Children should be supervised to ensure that they do not play with the appliance. Avoid contacting moving parts. Do not insert any object through the grill when the fan is operating Do not cover the grill, or operate in close proximity to curtains, etc ...
- Page 7 Assembly Instruction PEDESTAL FAN 1.Logo plate 2.Front grill 3.Blade 4.Rear grill 5.Motor axis 6.Front motor housing 7.Rear motor housing 8.Adjustable screw 9.Joint pole 10.Iron connector 11.Pipe 12.Decorative ring 13.Base...
- Page 8 BASE ASSEMBLY 1.To loosen the screw from the pipe 2.Put the pole into the center hole of base 3.To tighten the screw 4.Put the decorative ring into the pipe and fix it MOTOR ASSEMBLY 1.Unscrew the connecting and stopper screw of the pipe 2.Fix and lock the motor and the pipe by connecting the stopper screws REAR GRILL ASSEMBLY 1.To loosen 4 screws which fixed on the front motor housing...
- Page 9 WALL FAN 1.Logo plate 2.Front grill 3.Blade 4.Rear grill 5.Motor axis 6.Front grill motor 7.Rear grill motor 8.Adjustable screw 9.Joint pole 10.Iron connector 11.Wall support pipe 12.Wall bracket...
- Page 10 REAR GRILL ASSEMBLY 1.To loosen 4 screws which fixed on the front motor housing 2.4 holes of rear grill need to be aligned with 4 screws holes of front motor housing 3.Fix and lock the screws FAN BLADE ASSEMBLY 1.Put the fan blade into the bottom of motor axis 2.Use screw to fix and lock the blade FRONT GRILL ASSEMBLY 1.
- Page 11 Operating Instruction 1.Once the fan is assembled and installed, plug the cord into an acceptable power source. 2.The fan has 3 speed settings: 1-low, 2-medium, 3-high, 0-off. 3.To turn the fan “on”, turn the knob to the desired setting, to turn the fan “off”, turn the knob to “0”.
- Page 12 How to Change the Pedestal Fan to Wall Fan 1. Finished assembling the pedestal fan. 2. Loosen & remove the locking nut & bolt red circle. 3. Pull out the head from the connector. 4. The stand of wall fan. 5.
- Page 13 750mm Pedestal Fan with Bonus Wall Mount Kit Exploded Drawing...
- Page 14 Fan– 12 months from date of purchase Trade and commercial use: 6 months on all ROK products. This guarantee covers material and workmanship defects only. In order for the guarantee to be acted on, the consumer must use the products strictly in accordance with their operating manual and for the purpose for which they are intended to be used.
- Page 15 No responsibility will be taken for products lost, damaged or mislaid whilst in transit. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensations for any other reasonably foreseeable loss or damage.
