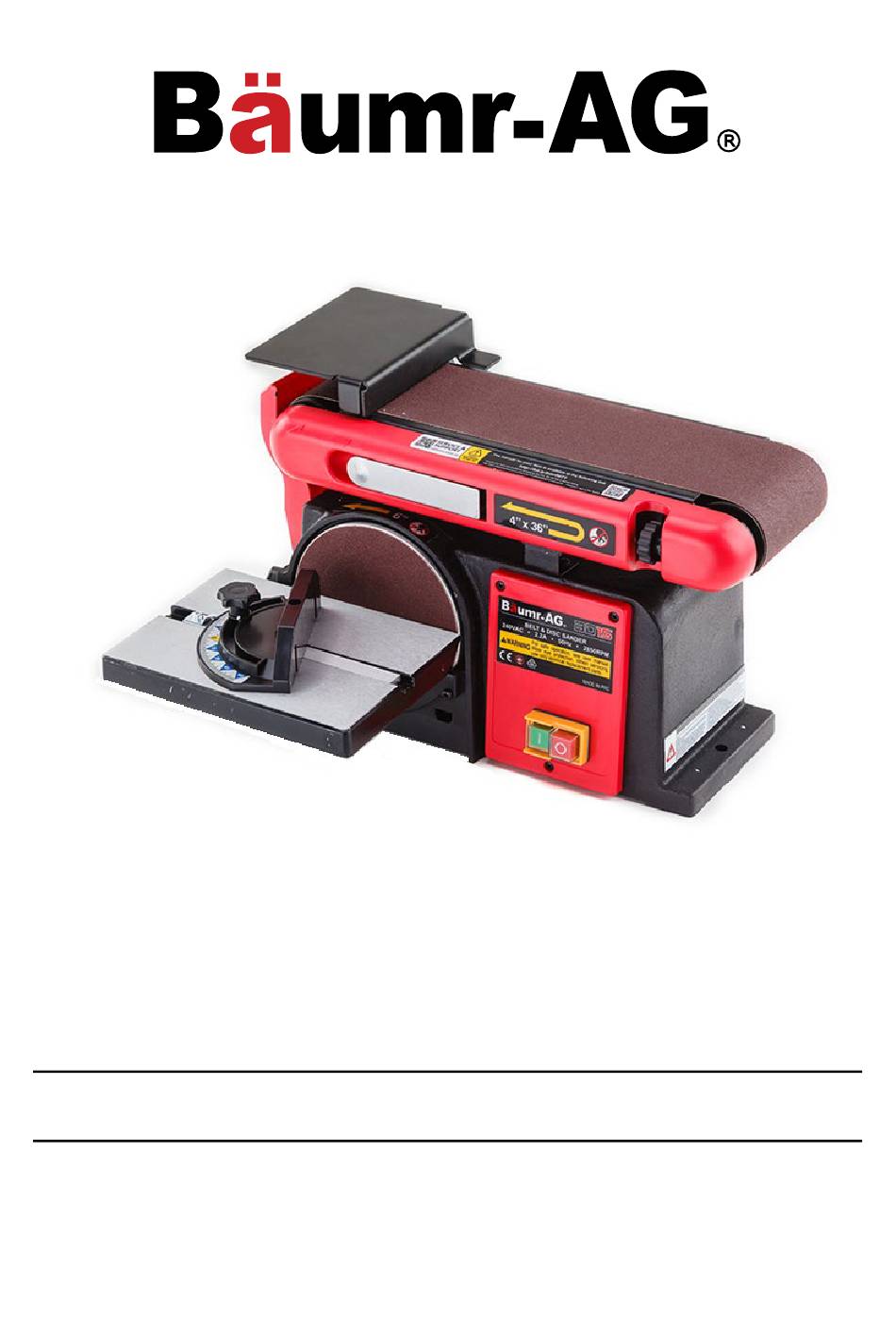

Belt and Disc Sander - BD15
User Manual
[Revision 1.0 May 2017]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
E&OE
© 2017 Baumr-AG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BD15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Baumr-AG BD15

  • Page 1 Belt and Disc Sander - BD15 User Manual [Revision 1.0 May 2017] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.

  • Page 2: Safety

    Belt and Disc Sander - BD15 Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:...
  • Page 3 Belt and Disc Sander - BD15 Product Use and Care General Service Information • Always support the work-piece using • Have the equipment serviced or the work supports and ensure that the repaired at authorized service centres belt/disc is pushing the work-piece by qualified personnel only.

  • Page 4: Table Of Contents

    Belt and Disc Sander - BD15 Table of Contents Safety ..............................2 Parts Identification ..........................5 Assembly and Set-Up ........................6 Mounting the Work Table for Use with the Disc Sander ................6 Mounting the Work Table for Use with the Belt Sander................6 Assembling the Work Support ........................

  • Page 5: Parts Identification

    Belt and Disc Sander - BD15 Parts Identification Name Work support Tracking knob Belt tension lever ON / OFF Switch Sanding disc Bevel scale Mitre gauge Sanding belt Work table Positioning bolt E&OE © 2017 Baumr-AG...

  • Page 6: Assembly And Set-Up

    Belt and Disc Sander - BD15 Assembly and Set-Up Do not attempt to modify the product or use accessories not supplied or recommended for use with this tool. Any such alteration or modification may result in hazards leading to possible serious personal injury and will void any warranty. • Do not connect the machine to an electrical supply until assembly is complete.

  • Page 7: Mounting The Machine To A Workbench

    Belt and Disc Sander - BD15 Mounting the Machine to a Workbench If the machine is to be used in a permanent location, it is recommended you secure it to a workbench or other stable surface. When mounting the belt/disc sander to a workbench, holes should be drilled through the supporting surface of the workbench (Fig.

  • Page 8: Squaring The Work Table To The Sanding Disc

    Belt and Disc Sander - BD15 Squaring the Work Table to the Sanding Disc (Fig.18) 1. Disconnect the machine from the electrical supply. 2. Using a combination square, check the angle of the work table to the face of the sanding disc.

  • Page 9: Operation

    Belt and Disc Sander - BD15 Operation Do not reach across the sanding disc or belt to switch the machine ON or OFF. Contact with the sanding disc can result in serious personal injury. • Do NOT stand or have any part of your body in line with the path of the work-piece, if it happens to be thrown.

  • Page 10: Bevel Sanding Using The Mitre Gauge

    Belt and Disc Sander - BD15 Bevel Sanding Using the Mitre Gauge A mitre gauge is included with the tool for increased accuracy. Use of a mitre gauge is recommended for sanding small end surfaces on the sanding disc (Fig. 11 and 12).

  • Page 11: Surface Sanding On The Sanding Belt

    Belt and Disc Sander - BD15 Surface Sanding on the Sanding Belt (Fig. 14) 1. Hold the workpiece firmly, keeping fingers away from the sanding belt. 2. Keep the end pressed firmly against the work support moving work evenly across the sanding belt.

  • Page 12: Maintenance

    Belt and Disc Sander - BD15 Maintenance Ensure the machine is switched OFF and disconnected from the electrical supply before performing any maintenance tasks. • All protection and safety devices must be immediately re-installed once the maintenance work is completed. • When servicing, use only identical replacement parts.

  • Page 13: Changing The Drive Belt

    Belt and Disc Sander - BD15 Changing the Drive Belt (Fig. 19) 1. Disconnect the machine from the electrical supply. 2. Using a Philips head screwdriver, remove the screw in the centre of the belt cover. 3. Remove the cover.
  • Page 14 ©2017 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
