- Page 1 Operating Instructions Construction Site Traffic Signal System MPB 1400...
- Page 3 Hand box MPB 1400 The hand box is used for quick and easy programming of the signal system MPB 1400. The hand box queries the necessary inputs and guides you through the menu. Your national language is already adjusted when the hand box is delivered.

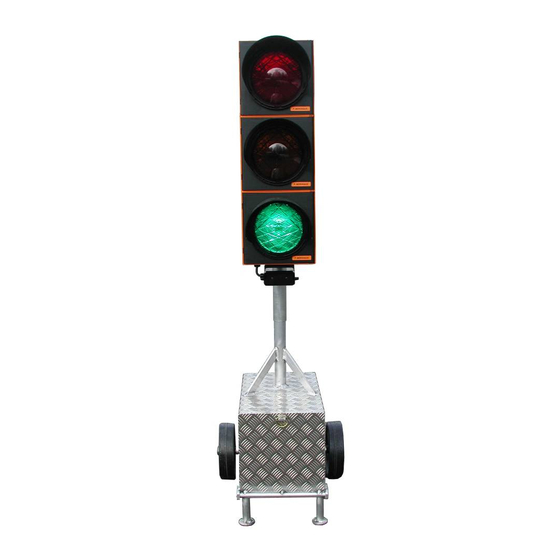

- Page 4 Signal system type MPB 1400 The quartz-controlled signal system type MPB 1400 can be used for controlling traffic in construction sites with alternating one-way traffic, at T-junctions or crossroads. The length of the red and green phases can be adjusted differently right down to the last second for all signals –...
- Page 5 During initial commissioning, please use "2" to check the specific national settings for the red-and-yellow and yellow phases (e.g.: RdYe = 1 second, Yell = 4 seconds). These time settings are then saved as basic values for all future inputs. That means as a rule, you will not have to change these basic values any more.
- Page 6 Started ? yes >ok< Press "OK" to confirm. You can now switch the hand box off, and use it to program other MPB 1400 signals located in other places. Box off? >ok< The signal system has now been successfully programmed with the data which you had entered previously in the hand box: alternating one-way traffic control has now started.
- Page 7 T-junctions In the menu point >Choose<, use "1" or "3" to select the required type of traffic control, e.g. "T-junction" (function as signal system for traffic control at T-junctions). Choose < > T-junct. Press "4" to confirm your selection (e.g. T-junction) and thus go to the next menu point.
- Page 8 Parallel signal heads If repeat signals are to be erected on the left-hand side of the carriageway, or if two synchronised signals are to be erected on the opposite side, you can use parallel signal heads for this purpose. Synchronised parallel signal heads can be programmed for traffic control as alternating one-way traffic, at T-junctions and also at crossroads.
- Page 9 Special operating modes When the hand box is switched off, press "Man." and "On" at the same time to go to the special operating modes. When the box is switched on, please hold "Man." for at least 5 seconds. The display shows Manual Use "3"...
- Page 10 Continuous red: Select >ok< in the hand box. The selected signal head switches to continuous red (e.g. for moving a vehicle around in the construction site or when felling trees). CAUTION! You must activate a defined status at both signal heads to avoid any misunderstandings in the construction site traffic! For example, if you switch signal 1 to "red", then you must set signal 2 either to "red"...
- Page 11 GENERAL INFORMATION Explanation of the LED display The control housing of every traffic signal contains multi-coloured LEDs which provide the following information: LED yellow – not on Battery full LED continuous yellow Battery warning from approx. 10.5V LED flashing yellow quickly = Battery flat (signal dark);...
- Page 12 This prolongs the battery change interval several times over. User code To stop other users from manipulating your MPB 1400 and to prevent any interference in the system while it is operating, you can stipulate your individual user code from 0 to 999.
- Page 13 Explosion drawing of MPB 1400 control housing parts. To replace the control PCB, please separate from the operating voltage by disconnecting the batteries in the battery casing. Now disconnect the cable lead from the control PCB to the signal head by simply pulling the plug terminal upwards.
- Page 14 Replacing the halogen bulbs The halogen bulbs can be replaced quickly without needing special tools: all you need is a medium-sized flat screwdriver. Open the corresponding signal head chamber by using the flat screwdriver to press in the two snap clips on the right front side of the control door so as to hinge the door open.
- Page 15 Aluminium traffic signal stand Sealing cap Fastening strap for signal head Fastening strap for signal head Mounting tube, adjustable in height Wheel with hub cap Door similar illustration...
- Page 16 ES 3097 Socket plug, 3-pin, for LED module to cable harness ES 3098 Plug, 3-pin, for LED module system Battery cable black, 2x2.5 mm² for MPB 1400 with ring eyelet, without battery EK 0003 lugs EI 0041 M Battery terminal (+) red...
- Page 18 Warranty for defects We offer a 24 month guarantee for the signal systems produced by our company. The guarantee covers all material and workmanship faults caused by faulty manufacture during this period of time. Please send systems and parts of systems for replacement to our factory, postage/freight prepaid.
