Summary of Contents for Control Technology Inc. CTI 2559-TC
Page 1

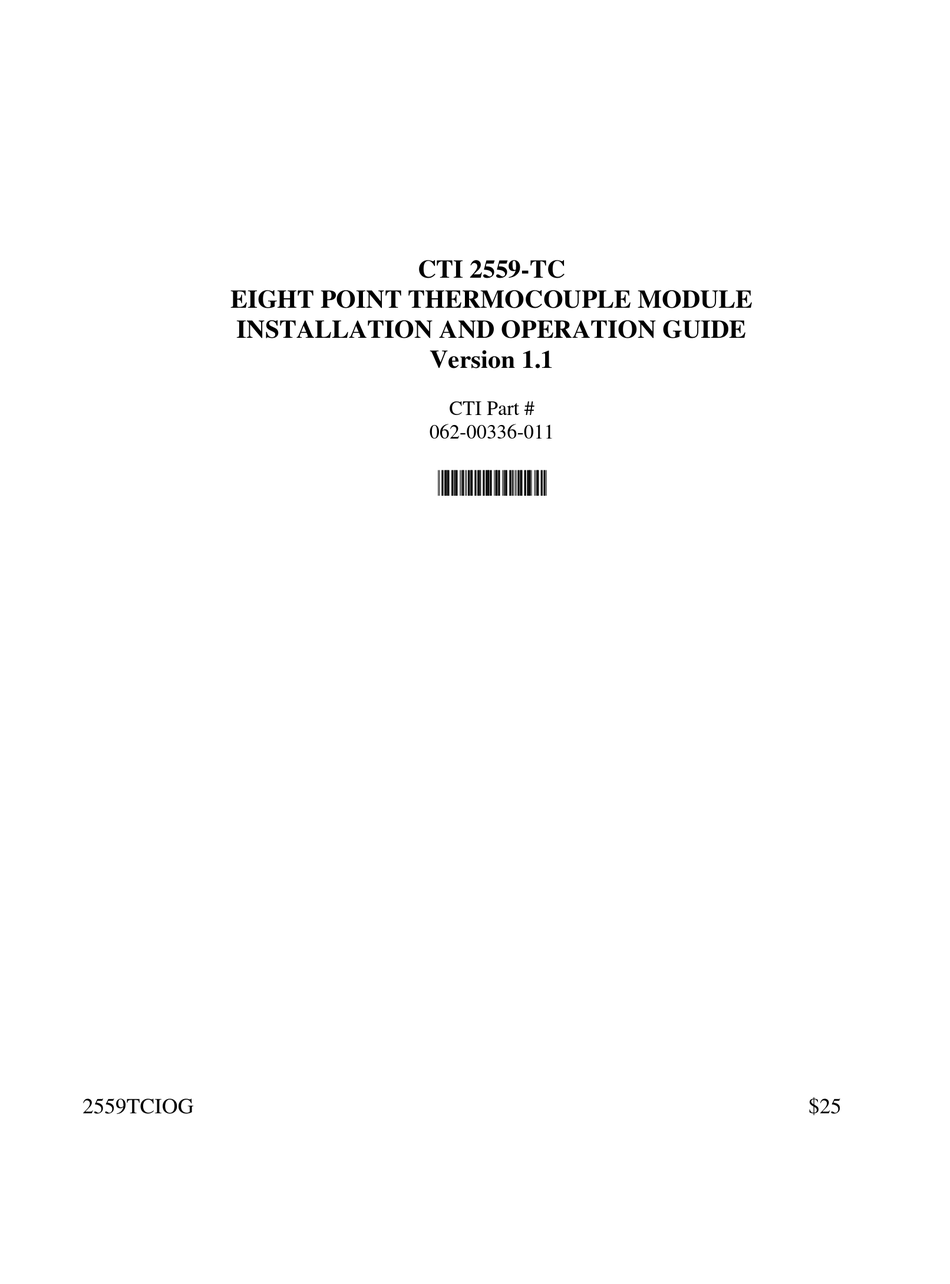

CTI 2559-TC EIGHT POINT THERMOCOUPLE MODULE INSTALLATION AND OPERATION GUIDE Version 1.1 CTI Part # 062-00336-011 *062-00336-010* 2559TCIOG...
Page 3
If you have a comment or discover an error, please call us toll-free at 1-800-537-8398. REVISION HISTORY Version 1.0 8/14/02 Original Release Version 1.1 9/23/04 Changed manual to reflect changes in scaling operation CTI 2559-TC Installation and Operation Guide...
Chapter 1 provides a description of the module. Chapter 2 covers installation and wiring. Chapter 3 is a guide to troubleshooting. Appendix A details compatibility between the 2559-TC and the Siemens® 505-7028-A. The Model 2559-TC 8-Pt Thermocouple Module CTI 2559-TC Installation and Operation Guide...
Notes alert the user to special features or procedures. CAUTION: Cautions alert the user to procedures that could damage equipment. WARNING: Warnings alert the user to procedures that could damage equipment and endanger the user. CTI 2559-TC Installation and Operation Guide...
TABLE OF FIGURES Figure 1.1 CTI 2559-TC Front Panel....................1 Figure 1.2 Word Input to the PLC from the Module ................2 Figure 1.3 Example Change in Input Level ..................3 Figure 1.4 Effect of Voltage Input on Type J Thermocouple ............... 4 Figure 1.5 Effect of Voltage Input on Type K Thermocouple..............
CHAPTER 1. OVERVIEW 1.0. Product Summary The CTI 2559-TC Eight-Point Thermocouple Module is a member of Control Technology’s family of I/O modules compatible with the 505 programmable controllers. It is designed to SIMATIC® translate a J, K, T, E, R, S, N thermocouple or millivolt input signals from the thermocouple element into an equivalent digital word which is then sent to the programmable controller (PLC).
When module SCALING is disabled, data is reported as engineering units to the PLC as follows: Thermocouple Mode, digital word (WX) = Degrees x 10 Millivolt Mode, digital word (WX) = -10,000 to +10,000 CTI 2559-TC Installation and Operation Guide...
-220 to 1320 -364 to 2408 -230 to 400 -382 to 752 -240 to 700 -400 to 1292 0 to 1768 32 to 3214 0 to 1768 32 to 3214 -200 to 1300 -328 to 2372 CTI 2559-TC Installation and Operation Guide...
The 2559-TC uses the overrange error code, 32765, to indicate an open thermocouple. An open thermocouple condition will report within 200 milliseconds. Figure 1.4 Effect of Voltage Input on Type J Thermocouple Figure 1.5 Effect of Voltage Input on Type K Thermocouple CTI 2559-TC Installation and Operation Guide...
Figure 1.7 Effect of Voltage Input on Type E Thermocouple Figure 1.8 Effect of Voltage Input on Type R Thermocouple Figure 1.9 Effect of Voltage Input on Type S Thermocouple Figure 1.10 Effect of Voltage Input on Type N Thermocouple CTI 2559-TC Installation and Operation Guide...
1.9. Resolution The module has a resolution of approximately 0.1 C, 0.1 F or exactly .01 millivolts. The chart below shows the corresponding input resolution per step for each of the input configuration modes: CTI 2559-TC Installation and Operation Guide...
Avoid placing low voltage wire parallel to high-energy wire (if the two wires must meet, cross them at a right angle) • Avoid bending the wire into sharp angles • Use wireways for wire routing • Avoid placing wires on any vibrating surface CTI 2559-TC Installation and Operation Guide...
The 505 front panel connector supplied with the 2559-TC is a modified connector with temperature sensors built in. Do not attempt to use a standard connector, as the thermocouple measurements will not be recognized and an error code will be reported on all channels. CTI 2559-TC Installation and Operation Guide...
The information is reported via DIP switches SW1 and SW2 (see Figure 2.2). Each output channel uses 3 switches with a BCD code to indicate the state of the hardware jumpers. The following chart illustrates the BCD which is needed to achieve the desired thermocouple type. CTI 2559-TC Installation and Operation Guide...
Type BCD code 3 (MSB) 1 (LSB) Type Figure 2.2 Configuration Jumper Board Locations (shown as shipped from factory) CTI 2559-TC Installation and Operation Guide...
14-gauge wire. The actual size used depends on the thermocouple wire providing the input signal. To assign an input to a specific channel, locate the appropriate channel position on the screw terminal connector as shown in the following figure: CTI 2559-TC Installation and Operation Guide...
If either of the two temperature sensors fail, an error code of 32,761 will be reported to the PLC and the modified connector needs replacing. In the unlikely event this occurs, contact CTI for replacement connector part number ‘2559-FPC’ for your replacement front panel connector. CTI 2559-TC Installation and Operation Guide...
The other end should be left in an open circuit condition. CTI recommends that the shield be terminated CTI 2559-TC Installation and Operation Guide...
Figure 2.7 Shield Wire Termination 2.6. Installing the Screw Terminal Connector When all the input signal wires are connected to the screw terminal connector, carefully install the connector on the front of the module. CTI 2559-TC Installation and Operation Guide...
Figure 2.8 Input Connector Assembly 2.7. Calibration of the Module Unlike its Siemens® counterpart, the CTI 2559-TC needs no calibration of inputs or cold junction compensation. NOTE: The 2559-TC Thermocouple Input Module is calibrated at the factory. No further calibration is required.
If a module failure is reported by the status word, the module should be replaced with a working unit and the failed module sent in for repair. NOTE: It may take 15-30 minutes after initial installation for temperature readings to stabilize. CTI 2559-TC Installation and Operation Guide...
(see section 2.5.1.) Figure 3.1 Troubleshooting Matrix CAUTION: The module fuse F1 is not user serviceable. If this fuse is blown, the module has a serious component failure and should be returned to CTI for repair. CTI 2559-TC Installation and Operation Guide...
Page 32
When it is inconvenient to visually check the status indicator, use the TISOFT “Display Failed I/O” or “Show PLC Diagnostics” support functions. If after consulting the chart above, you are unable to diagnose the problem, contact your local distributor or CTI at 1-800-537-8398 for further assistance. CTI 2559-TC Installation and Operation Guide...
85 C (-40 to 185 Relative Humidity: 5% to 95% non-condensing Agency Approvals Pending: UL, ULC, Class 1-Div.2, CE Shipping Weight: 1.5 lbs. (0.68 Kg) - specifications subject to change without notice - CTI 2559-TC Installation and Operation Guide...
Page 34
CTI 2559-TC Installation and Operation Guide...
The CTI 2559-TC should fulfill all the following requirements for the 505-7028-A replacement, as outlined below: Module setup The CTI 2559-TC sets up the same as its Siemen’s counterpart, without any input or CJC calibration needed. See Chapter 2.3 Configuring the Module for Operation to determine the details in module setup.
The 2559-TC Thermocouple Input Module is calibrated at the factory. No further calibration is required. All calibration parameters are stored in non-volatile memory. There are no user adjustments on this product. As shipped there is no jumper required on the CAL input. CTI 2559-TC Installation and Operation Guide...
CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE. CTI 2559-TC Installation and Operation Guide...
Failure to observe static control precautions may void the warranty. For additional information on static control precautions, contact CTI's office at 1-800-537-8398. CTI 2559-TC Installation and Operation Guide...
