ORIGINAL
INSTRUCTION
MANUAL

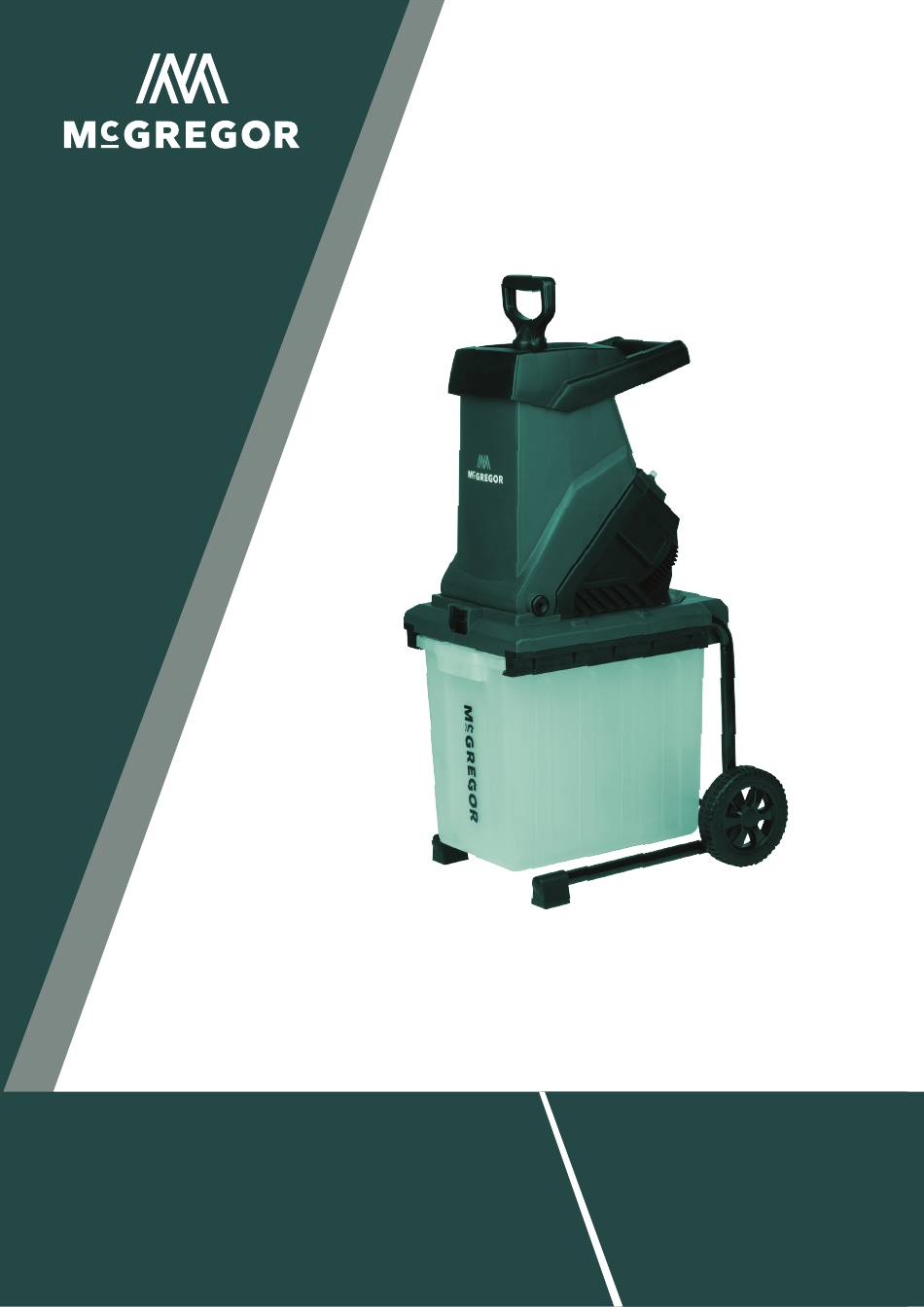

McGregor 2500W Shredder
7645963 (Model: GY6000)
Important - Please read these
instructions fully before starting assembly
AFTER SALES SUPPORT
These instructions contain important information that will help
0345 605 2063
you get the best from your shredder, ensuring it is assembled
correctly and safely. If you need help or have damaged or
0345 605 2063
missing parts, call the Customer Helpline on
Oct 2017
Advertisement
Table of Contents
Summary of Contents for McGREGOR GY6000
- Page 1 ORIGINAL INSTRUCTION MANUAL McGregor 2500W Shredder 7645963 (Model: GY6000) Important - Please read these instructions fully before starting assembly AFTER SALES SUPPORT These instructions contain important information that will help 0345 605 2063 you get the best from your shredder, ensuring it is assembled correctly and safely.
-
Page 2: Table Of Contents
Contents Safety Information ........................... 3 Warning Symbols ........................... 3 General Safety ..........................5 Personal Safety ..........................6 Operational Safety ......................... 7 Maintenance and Storage Safety ....................10 Intended Use ..........................10 Service ............................10 In the Box ............................11 Parts ............................. 11 Assemble ............................ -
Page 3: Safety Information
Safety Information Important - Please read these instructions fully before starting assembly Warning Symbols The following warning symblis appear through this manual and indicate the appropriate safety measures you should take when operating and maintaining the pressure washer. Warning! Read the manual. Wear ear and eye protection. - Page 4 Safety Information Important - Please read these instructions fully before starting assembly Warning Symbols Caution! Moving blade. Warning! Electric shock hazard. Always unplug the shredder before working on it. Noise level specification Lwa in dB. Do not dispose of electrical equipment in the domestic waste.
-
Page 5: General Safety
Safety Information Important - Please read these instructions fully before starting assembly General Safety IMPORTANT! Read carefully before use and keep for future reference. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe... -
Page 6: Personal Safety
Safety Information Important - Please read these instructions fully before starting assembly General Safety (continued) work properly. Always have a damaged switch repaired by our a qualified technician. • Only use extension cables that have been approved for outdoor use and are resistant to splash water. The core diameter for extension cables measuring up to 25 m must be at least 1.5 mm², and 2.5 mm²... -
Page 7: Operational Safety
Safety Information Important - Please read these instructions fully before starting assembly Personal Safety (continued) order. Replace any damaged or illegible stickers. • Only use replacement parts and accessories supplied and recommended by the manufacturer. Using thirdparty parts will immediately invalidate the guarantee. - Page 8 Safety Information Important - Please read these instructions fully before starting assembly Operational Safety (continued) • Make sure that the material inserted into the shredder does not contain hard objects made of metal, stone, glass or similar. • Do not use the shredder in the rain and in bad weather. Work in daylight or under good lighting conditions.
- Page 9 Safety Information Important - Please read these instructions fully before starting assembly Operational Safety other moving parts. • In the event of blockages in the machine intake or ejection, switch off the motor and disconnect the machine from the mains before removing leftover material in the intake opening or ejection channel.
-
Page 10: Maintenance And Storage Safety
Safety Information Important - Please read these instructions fully before starting assembly Maintenance and Storage Safety WARNING! • To ensure the appliance safety, use only original spare parts from the manufacturer or approved by the manufacturer. • Retrofitting or making any unauthorized changes to the machine, as well as the use of unapproved parts will invalided your warranty. -
Page 11: In The Box
In the Box Parts Handle Collection Feet Cover knob Spanner Housing Main switch Push stick Allen key Frame Overload Motor Screw x 4 reset switch cover Wheel Customer Helpline 0345 605 2063... -
Page 12: Assemble
Assemble Step1. Turn on Foots to the appropriate location, then upside down the frame. Spacer wheel Axle bush Screw Wheel cover Step2. Mount the wheel in the same order illustrated, fasten nut by the provided spanner ensure the nut is not too tight. Step3. -
Page 13: Prepare
Assemble Step 4 Lift up the button, push the collection box to end of the track, and make sure the box has been locked. Perpare Connect Socket Connect the plug to the main socket. Customer Helpline 0345 605 2063... -
Page 14: Operate
Operate Step 1.On/Off Operation Press the switch marked “1” to start and marked “0” to stop the motor. Step 2. Shred the Branch Put branches into hopper, use push stick to push when branches short. Step 3. Empty the Collection Box Turn off the unit, remove and empty the collection box. -
Page 15: Overload Protection
Operate Overload Protection Overload protection will be activate in following issue. a. A build up of shredded material around the cutting disc. b. the material bring shredded is greater then the motor capacity. c. Where there is too much resistance against the cutting blade. When Overload protection be activate, press the overload reset switch, press the on/off switch to “off”... -
Page 16: Maintenance
Maintenance Replace the Blade Ensure that the shredder is switched off and disconnected from the mains supply. work gloves be used when replacing the blades. 1. Open the top feed assemble by unscrewing the cover knob, and then remove the metal frame. Remove 2 hex headed screws Allen key Screwdriver... -
Page 17: Cleaning
Maintenance Cleaning Make sure the product is switched off, cooled down and disconnected from power supply. 1. Clean the product with a dry cloth. Use a brush for areas that are hard to reach. 2. In particular clean after every use with a cloth and brush. 3. -
Page 18: Technical Data
Technical Data Technical Data Table Model No GY6000 Nominal power intake 2500W (P40) Voltage 230-240V~, 50Hz Insulation protection class Degree of protection IPX4 Branch thickness max. 40 mm Volume of collection bag ca. 50 l Weight 14.1 kg Sound pressure level (LpA) 95.7 dB(A) K=3 dB(A) -
Page 19: Troubleshooting
Troubleshooting General Troubleshooting WARNING! - Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself! - Always turn off the machine and remove the plug before making any adjustment. -
Page 20: Guarantee
Guarantee Dear Customer, In the unlikely event that your device develops a fault, please contact our Customer service department on the telephone number shown below. 1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. Claims must be accompanied by Proof of Purchase. This must be in the form of a Sales receipt or Bank statement and must show that the product has been purchased within 2 years prior to the claim, from the retailer that it was originally sold to.
