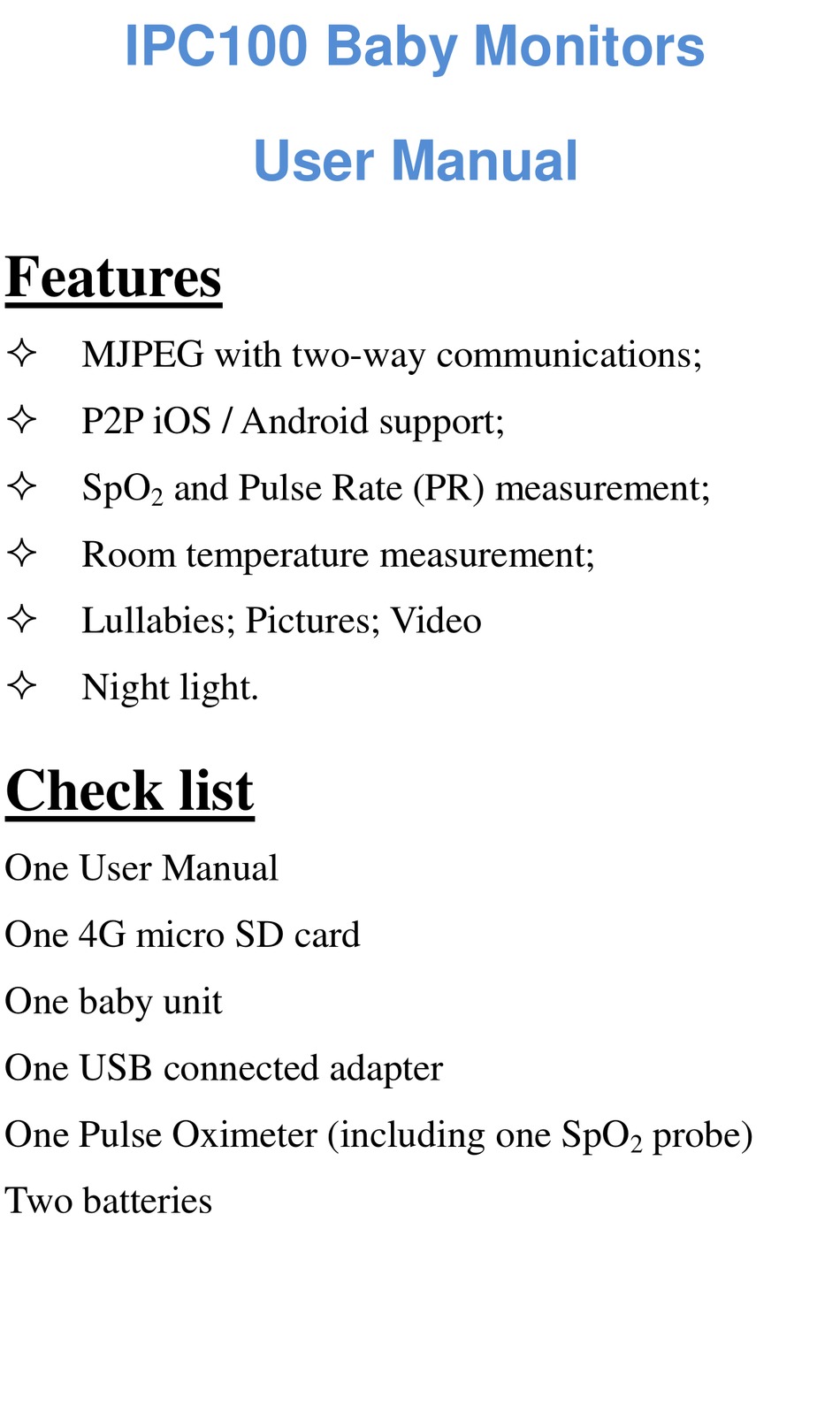

IPC100 Baby Monitors
Features
MJPEG with two-way communications;
P2P iOS / Android support;
SpO
2
Room temperature measurement;
Lullabies; Pictures; Video
Night light.
Check list
One User Manual
One 4G micro SD card
One baby unit
One USB connected adapter
One Pulse Oximeter (including one SpO
Two batteries
User Manual
and Pulse Rate (PR) measurement;
probe)
2
Advertisement
Table of Contents
Summary of Contents for Dorme Baby IPC100
-
Page 1: User Manual
IPC100 Baby Monitors User Manual Features MJPEG with two-way communications; P2P iOS / Android support; and Pulse Rate (PR) measurement; Room temperature measurement; Lullabies; Pictures; Video Night light. Check list One User Manual One 4G micro SD card... - Page 2 Overview of front side Camera Infrared light Microphone Night light Night light button Pedestal Overview of back side...
-
Page 3: Connection To Internet
Connection to internet Operation procedures: Step 1: Install the software IPC100, boot up the software and tap "new camera"→ tap "add wireless wizard"→ tap "next"→ tap "WIFI settings" and will search WIFI as shown in below figure: NOTE: User name: IPCAM_XXXXXX;... - Page 4 Step 2: Click "Next"→ "Next" as shown in below figure. The password is default and tap next. Step 3: Select user's wireless router and enter the password and tap "Next"→ "Next" searching network (connect the mobile phone to the WIFI), and appears the figure as below figure: Tap "Save", the signal icons "...
- Page 5 You can operate the IPC100 and remote control the pan tilt. Step 4: While the IPC100 connected to WIFI or another mobile phone adds IPC100. Open the software of IPC100, to tap "add new camera"→ "LAN searching" (make sure no camera in the camera list), as shown in below figure: Tap "IPC-E8ABFXXXX"...
- Page 6 till the night light on) 1. Temperature: tap the temperature value to change the unit Centigrade and Fahrenheit. 2. Photos 3. Video recording 4. Photograph 5. Previous song 6. Play & pause 7. Next song 8. Volume up 9. Volume down 10.
- Page 7 Warning: To prevent strangulation with the power cord, always keep the baby unit and the power cord out of baby's reach, at least 1metre/3.5 feet away. Do not use extension cords. Diagram...
- Page 8 Install mobile phone software Step 1: Connect the mobile phone to WIFI. Step 2: Set the regional Network: open the software --Refresh--Searched IP --Edit. Step 3: Preview--Save--save Step 4: Set the P2P network: P2P-please click here to add the camera. Step 5: Click "LAN search", if the mobile phone ID is not within the LAN, ID input should be:...
- Page 9 Step 6: Click the red square → input the password (888888)→ save. Step 7: Click the camera Step 8: The available settings for camera are audio frequency, talkback, video recording, and resolution value, with the function of photographing, cruise, mirror and flip. You can switch among the camera list, video list and instruction at the bottom of the screen.
-
Page 10: Technical Parameters
Technical parameters Model IPC100 Description IP camera for baby monitoring Modulation MJPEG with 2 way audio Frames per second 15~25/s Range 35% - 100% Alarm Low limit 90% 30bpm – 240bpm Pulse Rate Range High limit 160bpm Pulse Rate Alarm... - Page 11 transmission. Alarm function: when the measured SpO Pulse Rate value exceeds the preset alarm limit, then the smart phone will activate the audible and visual alarm indications. Infrared night vision function, you can see your baby even he/she is in the darkness. ...
-
Page 12: Troubleshooting
Troubleshooting Problem: Power indicator light not working. Possible cause: Does not switch on; Power is not getting to the unit; Low batteries. Solution: Turn on the units; Make sure the units are connected to the power supply; Replace the batteries. - Page 13 Supplementary Operation Instruction for Pulse Oximeter Instructions for Connection Insert the sensor tips into the slots on the probe holders. Place the sensor tip labeled “LED” into the stationary probe holder on the silicone wrap belt, and place the sensor tip labeled “PD” into the sliding probe holder, as illustrated in Figure 1 and Figure 2.
- Page 14 and the photo- detecting tip (PD) are aiming at each other, then thread the end of wrap belt through the outside slots on the probe holders and tighten the rubber belt with proper force. The final placement is shown in Figure 4. Figure 3 Sensor wrapping up Y-type Sensor...
-
Page 15: Instructions For Operation
Instructions for Operation After all connection have been completed, press the Power Button ( ) for 3 seconds to power on the oximeter, referring to below figure. When the oximeter is powered up, the Power Indicator (yellow lamp ) will light constantly. If the heart beat is detected, the Heartbeat Indicator (red lamp flashes according with the heart rate. -
Page 16: Fcc Caution
Tel: 888-741-2224 ext. 2 Fax: 832-442-4000 For mobile phone with Android system, please go to Google Play and search "Dorme Baby" to download and install the responding application; For mobile phone with iOS system, please go to APP Store and search "Dorme Baby" to download and install the responding application. - Page 17 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 18 communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna.
