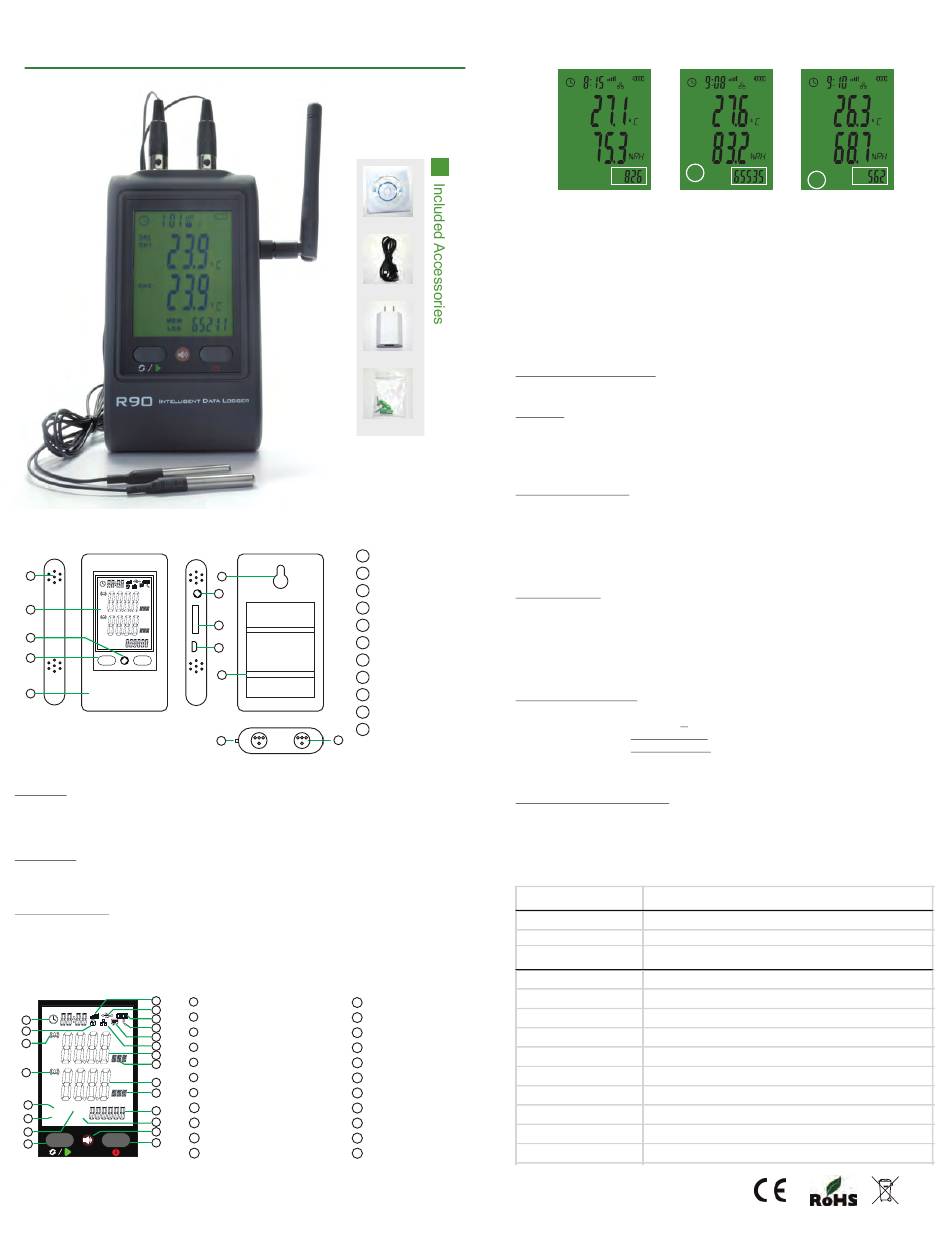

Thermco HIR90TTW Quick User Manual

HIR90TTW Quick User Guide
R90 Layout
1
CH1
CH3
2
CH2
CH4
3
MAX MEM
MIN LOG
4
R90
5
Intelligent Data Logger
Button Function
Left Button
1. Press the left button to check the current readings and historical data
press again to check MAX readings and the capacity.
press once again to check MIN readings and data waiting to upload.
2. Press and hold left button for 3 seconds will turn on/off the LOG function while in unlock mode.
Right Button
1. Press and hold right button for 3 seconds will turn on R90 from off sate.
Press and hold right button for 3 seconds will turn off R90 while in unlock mode.
2. Press right button to turn on/off back light function (optional function for device)
Left & Right Buttons
1. Press left and right buttons together will Lock/Unlock the device.
2. Press and hold left and right buttons for 3 seconds while in unlock mode will delete all data in R90.
LCD Layout
8
1
9
2
10
1
11
2
3
12
CH1
3
13
CH3 4
14
5
15
4
6
CH2
16
CH4
7
17
5
8
MAX MEM
18
MIN LOG
6
19 9
7 20
10
22
21
11
(LCD Working Temperature -30~70° C)
CD Software/Manuals
USB Cable
USB Pwr Adapter
Mounting Hardware
1 Vent
LCD Area
2
9
Alarm Indicator
3
6
Buttons (Left/Right)
4
5 Model Number
7
6 Antenna Connector
8
7
SIM Card Slot
10
USB port (5V 1A micro 5pin)
8
9
Wall-Mounting Slot
10
Flip Out Desk Stand
External Probe Connectors
11
6 11
CH-1 CH-2
Date and Time SMS Indication (gsm/gprs)
12
Buttons LOCK lndication 13 Wireless Connection
Temperature Value
Alarm lndication-CH1
14
Temperature Unit
Alarm lndication-CH2
15
Humidity Value
Maximum Value
16
Humidity Unit
Minimum Value
17
Records Indication Records
18
Logging Indication
Network Strength (wifi/gprs)
19
Alarm Indication
USB Conneted 20
Battery Indicator Switch and Log
21
Call Indicator (gsm/gprs)
22 ON/OFF
DISPLAY MODES
CH1
CH2
MEM
LOG
Current Readings
Records Recorded
PLEASE NOTE: This software should be installed on
a dedicated PC running 24/7 , not a office work station.
Download Software from Thermcoproducts.com
Support \ Downloads \ [ZIP] TronFlux
GETTING STARTED
Prerequisite Check Sheet
1. Complete the included form in this PDF to simplify setup.
R90 Unit
1. Attach antenna.
2. Connect probes (power off unit prior to connecting or disconnecting the probes).
3. Connect R90 to computer via USB cable.
4. Note: Fully charge battery prior to logging.
R90 Software Install
1. Unzip TronFlux.zip to C:\
2. Install USB/Com Driver.
Go to C:\TronFlux\Driver folder and run... SETUP.exe
3. Install System Server Software.
Go to C:\TronFlux\Setup.exe
Refer to "TronFlux User Guide.pdf" for detailed instructions.
Configure R90
1. Go to C:\TronFlux\LogLive folder and run... LogLive.exe
a) Set wifi (ssid, password).
b) Set IP of PC running software.
c) Assign a logger name.
d) Set Alarm/Alert Min-Max values.
(for GSM GPRS)
Refer to "LogLive User Guide.pdf" for detailed instructions.
Start Logging Service
1. Note: This must be running 24/7 for realtime data collection.
2. Set up Email for Alerts... Click Smtp Server.
a) Server = your email providers "outgoing smtp address".
b) Port = your email providers "port value" check SSL if using.
c) Account = your email address.
d) Password = your password.
Start Management Console
1. Open a Web Browser
2. Enter "localhost" or the PC's "IP" (that's running the server) in the address bar.
Refer to "TronFlux User Guide.pdf" for detailed instructions.
Specifications
C A T A L O G N o .
HIR 9 0 T T W
S P E C I F I C A T I O N S
T emp erat ure R ang e:
A ccuracy:
R eso lut io n:
Pro b es:
M emo ry C ap acit y:
Samp le R at e:
PC So f t w are:
Po w er:
D imensio ns:
N et W eig ht :
CH1 CH1
CH2 CH2
MAX MEM
LOG MIN
MAX Readings MIN Readings
Record Capacity
Record to Upload
D E S C R I P T I O N
2 C hannel W ireless T emp erat ure D at a Lo g g er
-4 0 ~12 5
±0 .5
±0 .1
2 Ext ernal
6 5,0 0 0
1s~2 4 h
U SB D river, Lo g Live, T ro nF lux W in X P/ 7/ 8 ( 3 2 o r 6 4 b it )
110 V ac t o U SB A d ap t er, R echarg eab le Li-B at t ery
14 2 mm×77mm×2 8 mm
18 0 g
MEM
LOG
