R16 High Frequency Ring Saw
R16 HIGH FREQUENCY RING SAW
P8000 Power Converter
P8000 POWER CONVERTER
R16 HIGH FREQUENCY RING SAW
AND P8000 POWER CONVERTER
OPERATIONS MANUAL
ORIGINAL INSTRUCTIONS
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Advertisement
Chapters
Table of Contents
Summary of Contents for TRAXX R16

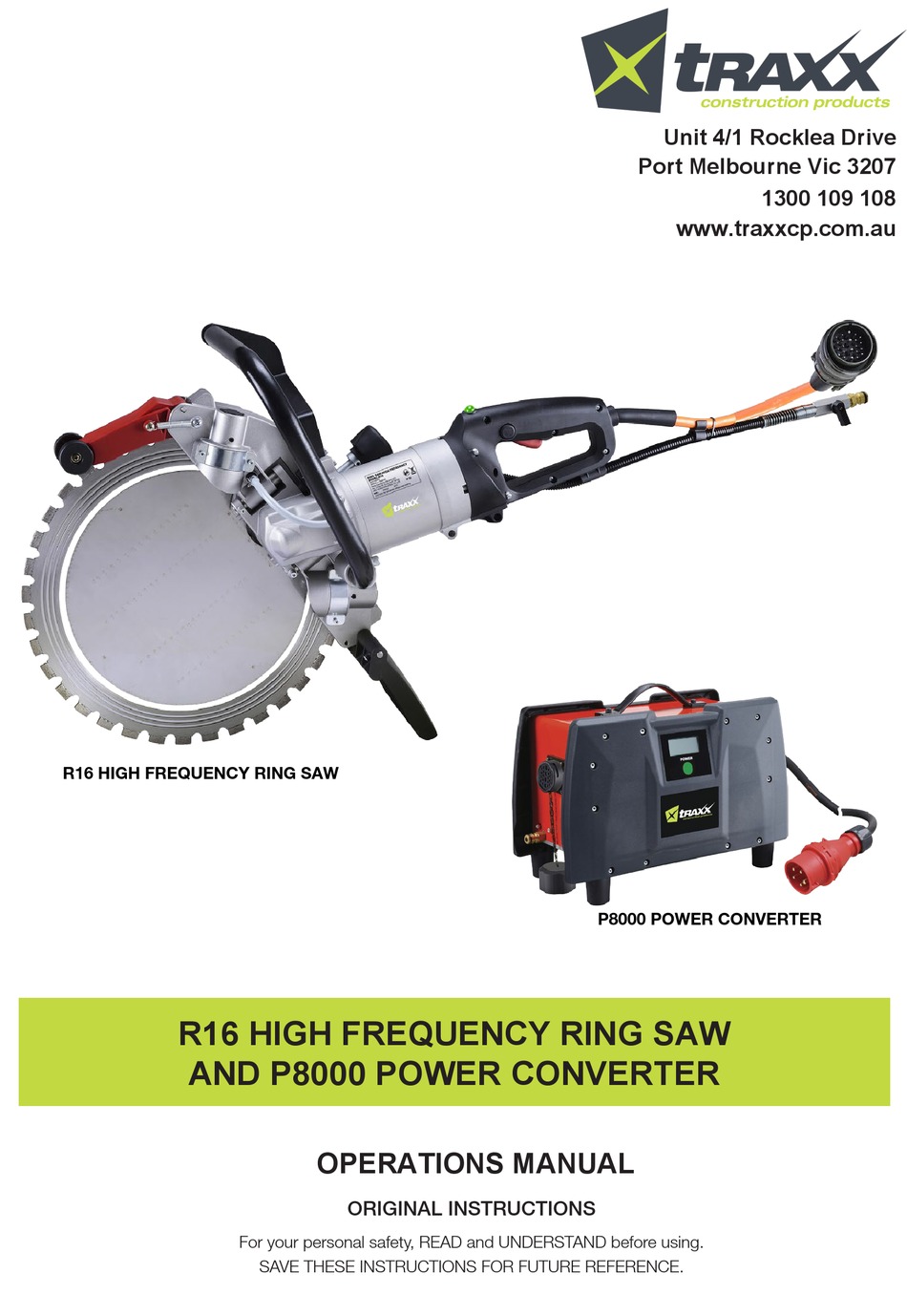

- Page 1 Unit 4/1 Rocklea Drive Port Melbourne Vic 3207 1300 109 108 www.traxxcp.com.au R16 High Frequency Ring Saw R16 HIGH FREQUENCY RING SAW P8000 Power Converter P8000 POWER CONVERTER R16 HIGH FREQUENCY RING SAW AND P8000 POWER CONVERTER OPERATIONS MANUAL ORIGINAL INSTRUCTIONS For your personal safety, READ and UNDERSTAND before using.
-
Page 2: Table Of Contents
On tools equipped with over load protection, when motor has been cut off due to over load, always switch on machine with no load for at least 3 minutes to reduce temperature before returning to operation to avoid burn out of the motor. R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 1... -
Page 3: General Safety Rules
Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 2... - Page 4 This will ensure that the safety of the power tool is maintained. Only use original parts for repair and maintenance. The use of incompatible accessories or spare parts can result in electric shocks or other injuries. R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 3...
- Page 5 Do not use damaged wheels. Before each use, inspect the wheels for chips and cracks. If power • R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 4...
- Page 6 Do not position your body in line with the rotating wheel. Kickback will propel the tool in direction opposite to the wheel’s movement at the point of snagging. R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 5...
- Page 7 Do not alter this plug in any way. • Use special care when working corners, sharp edges, etc. Avoid bouncing and snagging the R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 6...
- Page 8 CEE 16A 5P CEE 16A 5P Converter Supply Cable Ø~ 220V Adaptor Cable Male Plug Female Connector BROWN BROWN BLACK BLUE GREY GREEN / YELLOW GREEN / YELLOW R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 7...
-
Page 9: R16 Ring Saw And P8000 Power Converter Introduction
The diamond impregnated segments operate on a principle of controlled erosion. The bond matrix holding the diamonds is continually worn away by abrasion with the workpiece, exposing the harder diamonds to R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 8... -
Page 10: Sharpening A Glazed Blade
NOTE: Always replace the drive wheel with a new one when replacing a worn blade. The drive wheel and blade wear together and should be replaced as a set. R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 9... -
Page 11: Splash Guards
Water Feed Open Valve The water ow is controlled by the water feed valve. The water to the blade may be nely adjusted to the required amount. Closed R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 10... -
Page 12: Overload Protection, Overheat Protection
Connect the converter to the power supply OPERATION LCD screen • When the power converter power supply cable is plugged in, the Power Button supplied voltage will be displayed on the LCD screen R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 11... - Page 13 • The cutting sequence is important when making cutouts. Always make the last cut in a way that avoids the blade being pinched. Thus, make the R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 12...
-
Page 14: P8000 Power Converter Lcd Screen Codes
OFF: When the converter is plugged in, the screen will display the supply voltage. The voltage displayed will depend on the voltage of the supply ON: When the converter power button is pressed, the screen will display “ON” The connected tool is now live R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 13... -
Page 15: Specifications
14. Drive Tensioner Knob 2. Trigger Switch 15. Guide Tensioner Knobs 27. LCD Display 3. Release Button 28. Single Phase Adaptor Cable 16. Thumb Knob 4. Load Warning Lamp R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 14... -
Page 16: Error Codes
POWER button to turn the power OFF and then back converter and the tool ON again (If the problem persists, bring the unit to an authorized service center for repair) R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 15... -
Page 17: Maintenance And Cleaning
In accordance with the European Directive 2002/96/EG on Waste Electrical and Electronic Equipment and transposition into national law, used electric power tools must be collected separately and recycled in an environmentally friendly manner. R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 16... -
Page 18: R16 Illustrated Parts List
R16 Illustrated Parts List R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 17... - Page 19 R16 Illustrated Parts List EXPLODED VIEW R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 18...
-
Page 20: Parts List
OIL SEAL (Ø15 x Ø25.4 x 4.6) BALL BEARING (6201) BEVEL PINION GEAR (M1.5x20T) INTERNAL CIRCLIP (R-32) NYLOCK NUT (M10xP1.5) OIL SEAL (Ø15 x Ø32 x 7) R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 19... -
Page 21: Water Manifold
FLAT HEAD SOCKET CAP SCREW (M4x10xP0.7) SPRING FLAT WASHER (Ø4xØ10x1) PIN (Ø6x54) FLAT WASHER (1/2"xØ23x2) UPPER SPLASH GUARD TRUSS HEAD TAPPING SCREW-A (M5x12) FLAT WASHER (Ø5xØ12x1) WHEEL MOLDED GASKET MAIN HOUSING-R R16 High Frequency Ring Saw & P8000 Power Converter Operations Manual | 20... -
Page 22: P8000 Illustrated Parts List
Power Converter Illustrated Parts List Power Converter) EXPLODED VIEW ( C18 High Frequency Concrete Saw & P8000 Power Converter Operations Manual | 21... - Page 23 Power Converter Parts List Power Converter) PARTS LIST ( Parts Name Q'ty POWER SUPPLY CABLE CABLE GLAND PANHEAD TAPPING SCREW (M5x12) ENCLOSURE STRAP SOCKET CAP SCREW (M5x20xP0.8) SOCKET CAP SCREW (M4x10xP0.7) SPRING WASHER (M4) BRACKET MIL-SPEC SOCKET RECEPTACLE NYLOCK NUT (M5xP0.8) TETHER BAYONET COLLAR O-RING (AS-137)
-
Page 24: Wiring Diagram
WIRING High Frequency Ring Saw: BLACK BLACK Brown Brown BLUE BLUE WIRE CONNECTOR BLOCK SWITCH MOTOR Temperature Sensor ELECTRONICS UNIT Power Converter: ELECTRONICS UNIT BROWN BLUE BLACK DISPLAY C18 High Frequency Concrete Saw & P8000 Power Converter Operations Manual | 23... - Page 25 Unit 4/1 Rocklea Drive Port Melbourne Vic 3207 1300 109 108 www.traxxcp.com.au Traxx Constructions Products Operations Manual – Plate Compactor MS50/MS60/MS90/MS100...
