Amerec 6x9 Waterproof Speaker Installation Instructions

Ratings

Impendance:

Watts:

Min. Temperature: 32°F (0°C)

1. Cut a speaker mounting hole in the mounting surface using template (see pages 3 & 4).

2. Connect the speaker's two SPK terminals to the sound source. Insure that the positive terminal

of the speaker (red +) is connected to the positive (+) terminal of the sound source. This is very

important: if the speakers are connected out of phase the sound quality will be affected.

3. If using the speaker's LEDs - Connect the speaker's two LED terminals: connect the positive

LED terminal (red +) to a +12VDC control line and the negative (-) LED terminal to ground.

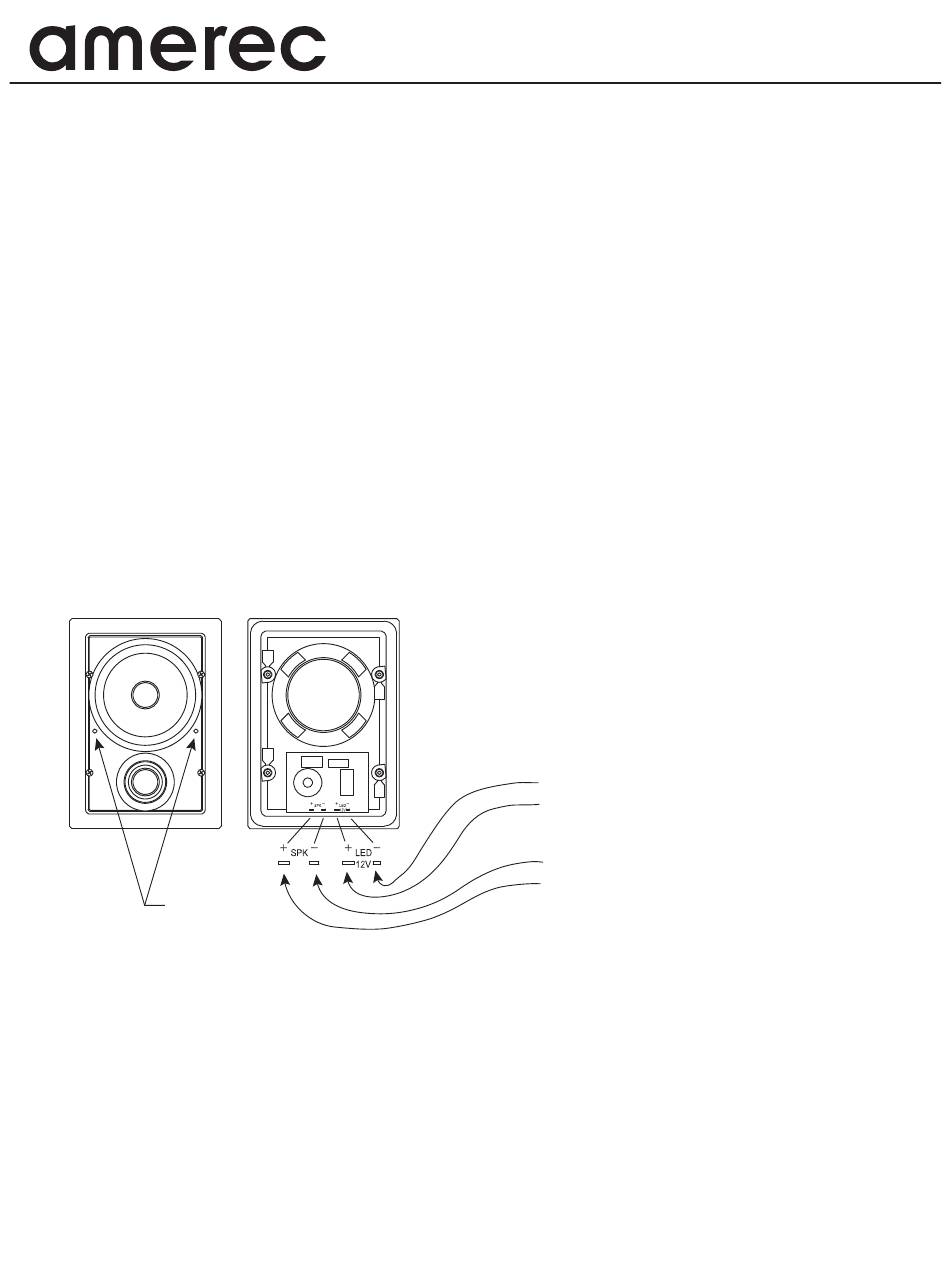

Front

LED Lights

6 x 9 Waterproof Speakers

4 Ω

90W max

Rear

Ground from iPod Dock/Harness

Triggered +12VDC from iPod Dock/Harness

Speaker (-) from iPod Harness

Speaker (+) from iPod Harness

4211-197 08-24-12

Table of Contents

Do you have a question about the 6x9 Waterproof Speaker and is the answer not in the manual?

Page 1 6 x 9 Waterproof Speakers Installation Instructions Ratings Impendance: 4 Ω Watts: 90W max Min. Temperature: 32°F (0°C) Installation 1. Cut a speaker mounting hole in the mounting surface using template (see pages 3 & 4). 2. Connect the speaker’s two SPK terminals to the sound source. Insure that the positive terminal of the speaker (red +) is connected to the positive (+) terminal of the sound source.
Page 2 7. Carefully place the foam sheet on the front of the speaker and remount the grill. For additional assistance contact Amerec Technical Support at 1-800-363-0251. P.O. Box 2258 Woodinville, WA 98072 800-363-0251 Fax: 425-951-1130 email: address: support@amerec.com...
Page 3: Installation Instructions
6 x 9 Waterproof Speakers Installation Instructions Drill 5/8” (16mm) Diameter 4.96” (126mm) Center-to-Center 5.60” (142mm) Edge-to-Edge 4211-197 08-24-12...
Page 4 6 x 9 Waterproof Speakers Installation Instructions 4211-197 08-24-12...
