Summary of Contents for Rose electronics Orion XT OX2-CNV-01CC

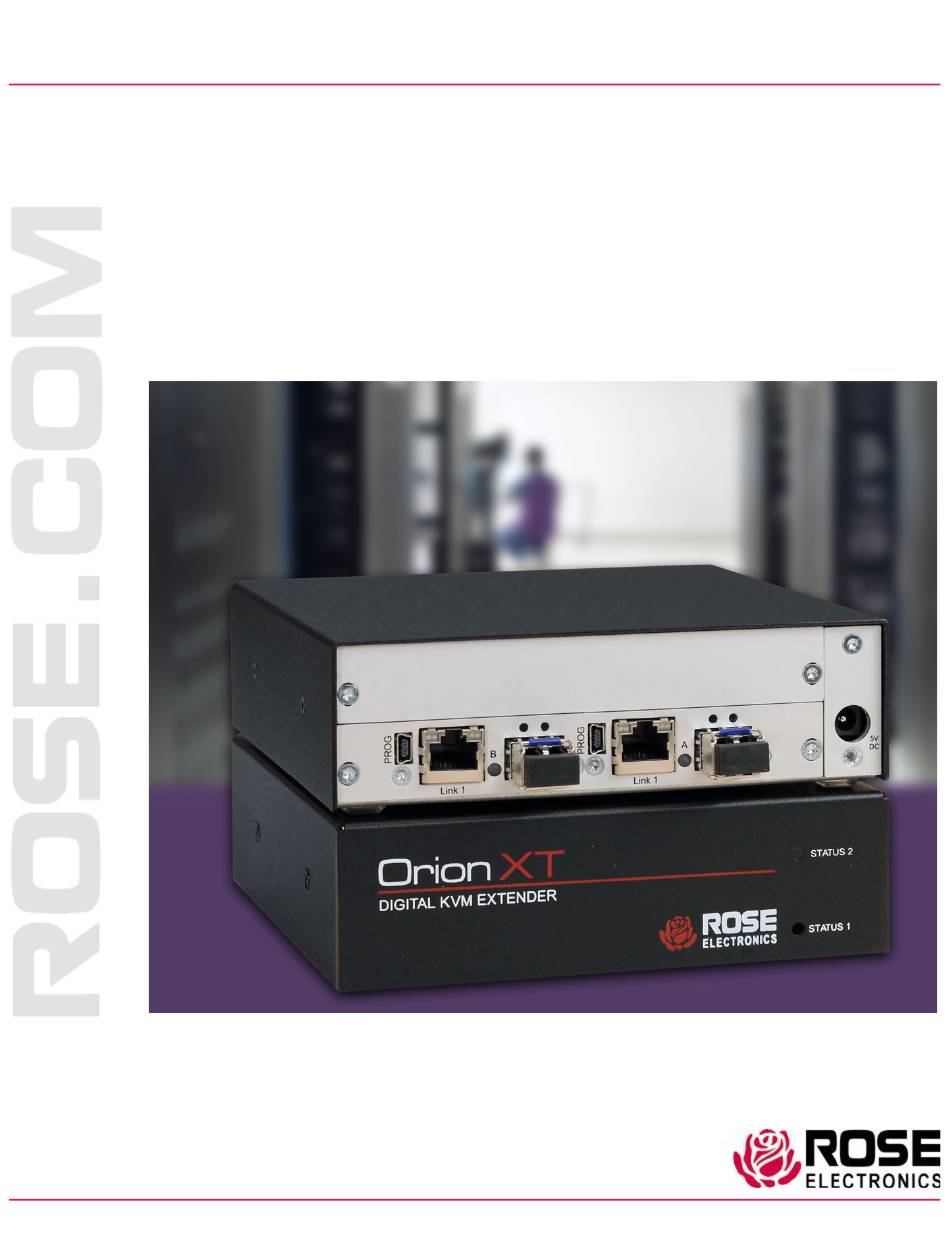

- Page 1 Orion XT Cross Repeater Modular CATx/Fiber Converter/Repeater Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 techsupport@rose.com...
- Page 2 Orion XT Cross Repeater to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 3 DECLARATIONS OF CONFORMITY This is to certify that, when installed and used according to the instructions in this manual, the Units listed described here are shielded against the generation of radio interferences in accordance with the application of Council Directives 2014/30/EU and 2014/30/EU, as well as these standards: ■...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Contents Disclaimer System Introduction Features Package Contents System Overview Orion XT Models Orion XT Plug-in Card Orion XT Chassis Installation Configuration Operation Status LEDs Safety Maintenance and Repair Technical Support Figures Figure 1. Cross-conversion of CATx and Fiber Signals Allow Extension to Great Distances Figure 2. -
Page 5: Disclaimer
(See limited warranty). System Introduction Thank you for choosing the Orion XT Cross Repeater. It is the result of Rose Electronics commitment to providing state-of-the-art solutions for today’s demanding workplace. The Orion XT Cross Repeater is an extender for increasing the transmission distance of Orion Xtender as well as Orion X and XC digital signals. -
Page 6: Features
Features ■ Extends Orion X signals by 460ft (140m) on either side of the unit over CATx cable ■ Extends Orion X signals by 32,808ft (10,000m) on either side of the unit over single-mode fiber cable ■ All ports are bidirectional and automatically configure as inputs or outputs ■... -
Page 7: System Overview
OVERVIEW System Overview An Orion XT Cross Repeater is used to increase the maximum cabling distance between the components of Orion Xtender or Orion X or XC matrix systems. It is available as pure CATx or fiber repeater models, or as combination CATx and fiber models (cross repeaters) for converting between electrical and optical signals. -
Page 8: Orion Xt Models
MODELS Orion XT Models An Orion XT Cross Repeater consists of at least one Cross Repeater card in an Orion Xtender chassis. Orion XT Plug-in Card Cards are available in six models as shown below. CATx: Single Port. CATx IN, CATx OUT CATx: Dual Port. -
Page 9: Orion Xt Chassis
Orion XT Chassis Each card occupies 1 card slot in an Orion Xtender chassis, available in 2, 4, 6, and 21 card sizes, as shown below. Figure 6. Orion Xtender Chassis Models Orion XT Cross Repeater Manual... -
Page 10: Installation
INSTALLATION AND OPERATION Installation Installation of the Orion XT Cross Repeater is very simple. 1. Ensure that power is disconnected from Orion XT Cross Receiver and all Orion X equipment. 2. Connect the appropriate interconnect (CATx or fiber) cables between the Orion XT and the input and output Orion X equipment to be extended. -
Page 11: Status Leds
Status LEDs The Orion XT Cross Repeater modules are fitted with a multi-color LED for overall status indication and two further LEDs above each connector for indication of the connection status. Figure 7. LED locations Figure 8. Status LEDs Orion XT Cross Repeater Manual... -
Page 12: Safety
PRODUCT SAFETY Safety The Orion XT Cross Repeater, like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. Follow all instructions and warnings marked on this Unit. ... -
Page 13: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 14: Appendices
APPENDICES Appendix A — Specifications Part Numbers Description OX2-CNV-01CC CATx / CATx, single port, 2 card chassis OX2-CNV-01SC CATx / Fiber, single port, 2 card chassis OX2-CNV-01SS Fiber / Fiber, single port, 2 card chassis OX2-CNV-02CC CATx / CATx, dual port, 2 card chassis OX2-CNV-02SC CATx / Fiber, dual port, 2 card chassis OX2-CNV-02SS... - Page 15 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
