Page 1: Owners Manual

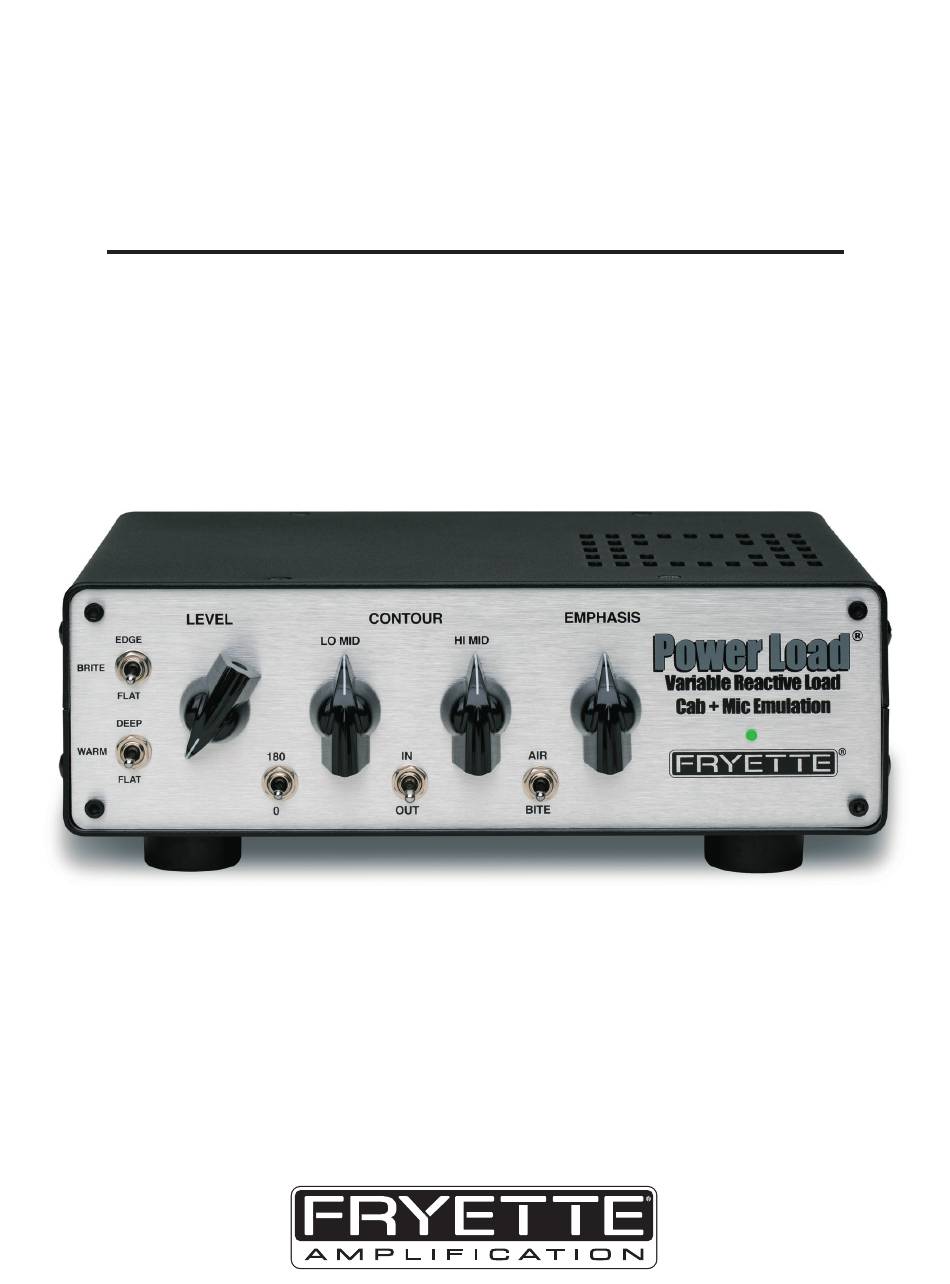

OWNERS MANUAL Power Load ™ VARIABLE REACTIVE LOAD BOX WITH CAB + MIC EMULATION MODEL PL-1... -
Page 2: Specifications
The Fryette Power Load™ is an easy to use, tunable reactive load coupled to a power ful analog Cab + Mic Emulation system that allows you to silently record your favorite cranked guitar tube amplifier. The Power Load™... -
Page 3: Important Safety Instructions
CAUSE OSCILLATION AND POTENTIAL DAMAGE TO THE AMPLIFIER. X THE POWER LOAD™ IS NOT INTENDED FOR USE WITH CLASS D OR PWM AMPLIFIERS. X FRYETTE® AMPLIFICATION IS NOT RESPONSIBLE FOR ANY DAMAGE TO YOUR AMPLIFIER THAT MAY OCCUR IN CONNECTION WITH ANY USE OF THE POWER LOAD™. -
Page 4: Front Panel Overview
Record Direct using your favorite tube amp The Fryette Power Load™ combines the variable reactive load of the Award-winning Fryette Power Station® coupled to a tunable analog Cab + Mic Emulation system that allows you to silently record your favorite tube amplifier. -
Page 5: Rear Panel Overview
OUT 1 12VDC PHASE GROUND CAUTION: DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. 500mA LIFT ACTIVE AMP + CAB + MIC PASSIVE FULL RANGE LINE OUT © 2018 Fryette® Amplification. All rights reserved. Specifications subject to change without notice. -
Page 6: Output Section
17. PHASE REVERSE SWITCH – Reverses the phase of the audio signal 180 degrees, for the DIRECT OUT 1 outputs only. © 2018 Fryette® Amplification. All rights reserved. Specifications subject to change without notice. - Page 7 23. FX RETURN L – High impedance effects return jack for use with external effects processor. 24. FX SEND – Sends a buffered low impedance mono signal out to your external effects. YOUR SETTINGS / NOTES © 2018 Fryette® Amplification. All rights reserved. Specifications subject to change without notice.
-
Page 8: Sample Settings
SAMPLE SETTINGS G12M TWEED 1X12“ SC 412 FANE © 2018 Fryette® Amplification. All rights reserved. Specifications subject to change without notice. -
Page 9: Application Examples
ACTIVE AMP + CAB + MIC PASSIVE FULL RANGE LINE OUT direct out Frye e 12VDC Standard ¼“ to ¼“ to mixer Adapter male speaker cable Amp Speaker Out © 2018 Fryette® Amplification. All rights reserved. Specifications subject to change without notice. - Page 10 PASSIVE FULL RANGE LINE OUT Standard ¼“ to ¼“ XLR (Balanced) male speaker cable or ¼” (Unbalanced) Amp Speaker Out Direct Out to mixer Speaker Cab In © 2018 Fryette® Amplification. All rights reserved. Specifications subject to change without notice.
- Page 11 LIFT ACTIVE AMP + CAB + MIC PASSIVE FULL RANGE LINE OUT to mixer The Power Load takes the amp signal and returns it through cab+mic emulation © 2018 Fryette® Amplification. All rights reserved. Specifications subject to change without notice.
-
Page 12: Troubleshooting Guide
WIDTH: 8.7 in (22 cm) INPUT IMPEDANCE: 2/4Ω/8Ω/16Ω (selectable) DEPTH: 6.2 in (15.7 cm) WEIGHT: 4.7 lb (2.1 kg) Product specifications are subject to change without notice. © 2018 Fryette® Amplification. All rights reserved. Specifications subject to change without notice. -
Page 13: Declaration Of Conformity
EN 60065 for low voltage, as laid down in Article 10 of the EMC Directive. Fryette Amplification 6850 Vineland Ave. Unit P North Hollywood, CA 91605 USA © 2018 Fryette® Amplification. All rights reserved. Specifications subject to change without notice. -
Page 14: Limited Warranty
LIMITED WARRANTY Subject to the obligations and exclusions found below, this product is warranted by Steven Fryette Design, Inc., (herein SFD) against manufacturing defects in materials and workmanship for the period of Five (5) Ye- ars from the date of purchase, with the exception of the tubes, fuses and speakers where applicable, which carry a 90 day warranty.
