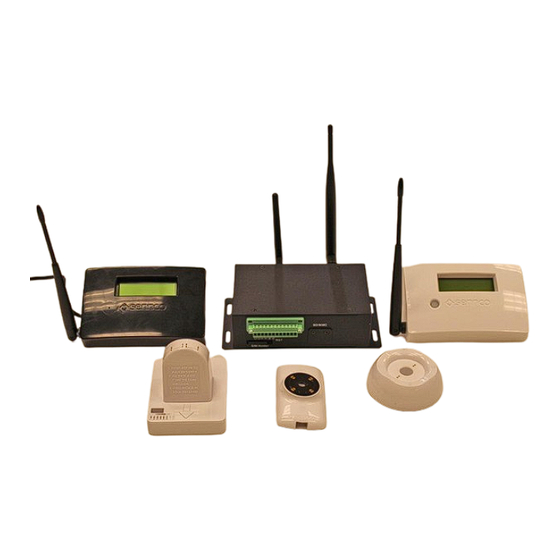

Sennco Solutions 150001 Instructions Manual

Wireless security system power & alarm solution
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
14407 Coil Plus Dr, Unit A | Plainfield, IL 60544
www.sennco.com | techsupport@sennco.com
815.577.3400 | Toll free 866.736.6261
Mon - Fri 9AM - 5PM CST
Instructions for Wireless Security System
Power & Alarm Solution
(Code 120-001) Rev 4
1
Patent pending
Prepared by KM 11/2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 150001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sennco Solutions 150001

Summary of Contents for Sennco Solutions 150001

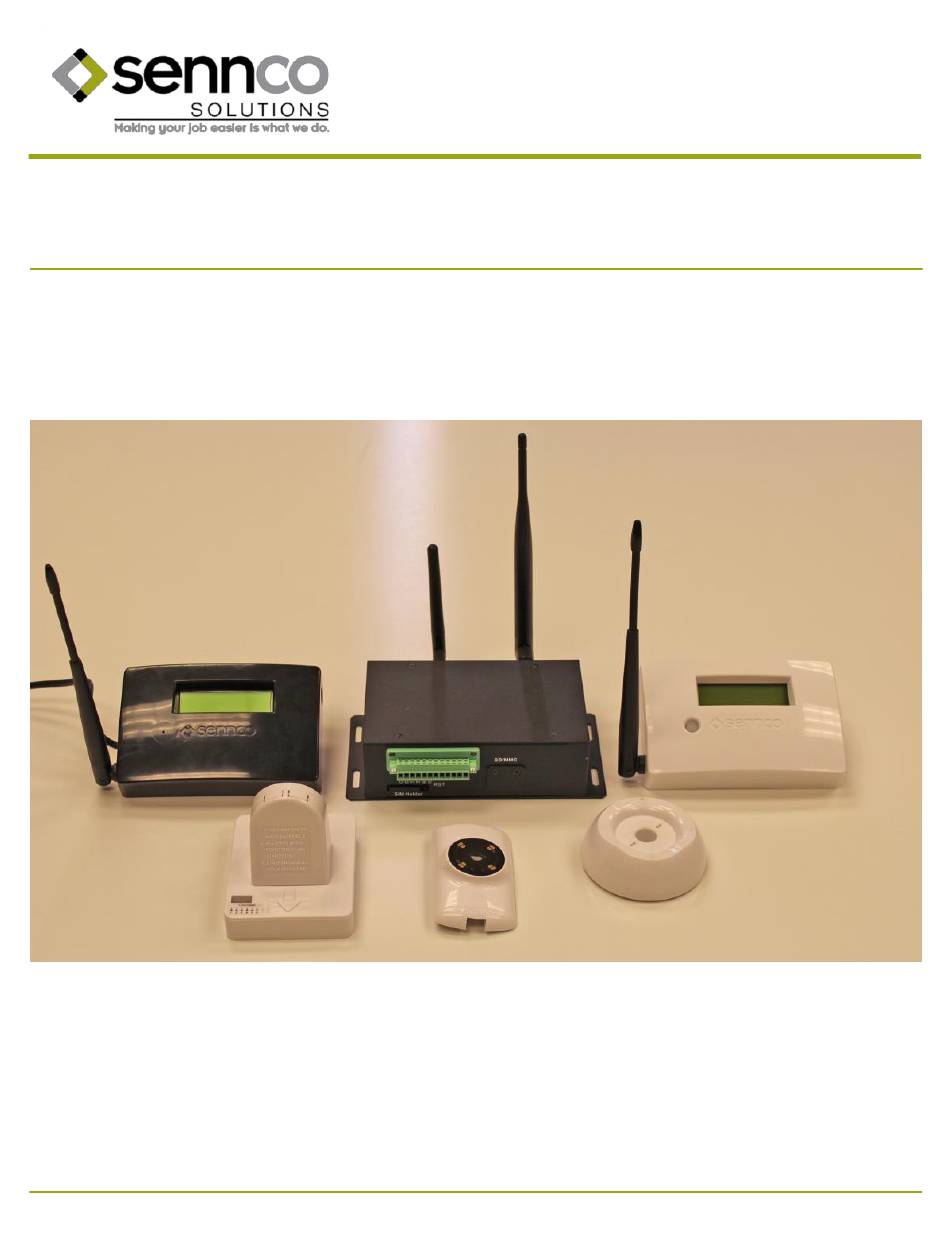

  • Page 1 14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST Instructions for Wireless Security System Power & Alarm Solution (Code 120-001) Rev 4 Patent pending Prepared by KM 11/2015...
  • Page 2 Patent No.: US 8,279,077 B1 Patent No.: US 8,558,714 B1 Sennco Solutions, Inc. is not held liable for any firmware or software changes implemented by the displayed product’s manufacturer, distributor, or reseller. Any changes/modifications to this equipment not approved by Sennco Solutions Inc. could void the user’s authority to operate the equipment.

  • Page 3: Table Of Contents

    14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST Table of Contents Parts List (What does it come with?) Main alarm……………………………………………………………………………..……. Page 4 Bubble maker……………………………………………………………………………….. Page 4 Sensor head…………………………………………………………………….…………….

  • Page 4: Parts List (What Does It Come With?)

    14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST I. Parts List A. Main alarm Main alarm unit AC power cable for main alarm DaKey B.

  • Page 5: Cradle

    14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST E. Cradle Cradle Cradle mounting plate Bolts with T nuts AC power cable Cordwinder 7 Adhesive for Cordwinder 7 F.

  • Page 6: Description Of Alarm (What Is This Part?)

    14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST II. Description of Alarm A. Main alarm Antenna DIP switches Button AC power port DaKey port Patent pending Prepared by KM 11/2015...

  • Page 7: Bubble Maker

    14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST B. Bubble maker Antenna (internal) DIP switches Antenna Arrow (all bubble makers must face the same direction) C.

  • Page 8: Sniffer

    14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST D. Sniffer Antenna USBA cable Antenna AC power port E. Cradle Plunger switch AC ower port AC power port Charging contacts...

  • Page 9: Gateway

    14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST F. Gateway WLAN antenna USB port 3G/GPRS antenna AC power port port (taller) port (shorter) Patent pending Prepared by KM 11/2015...

  • Page 10: Set Up (Where Do I Put These?)

    14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST III. Set Up A. Cradles Insert bolts through holes in cradle mounting plate. Thread a T nut onto each bolt. Place cradle mounting plate into position on the fixture.
  • Page 11 14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST 10. Pull the cable end up through the large hole in the cradle mounting plate. 11.

  • Page 12: Main Alarm

    14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST B. Main alarm Plug the barrel plug end of the AC power cable into the AC power port on the main alarm. Plug the other end of the cable into an outlet that has AC power available.

  • Page 13: Bubble Makers

    14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST E. Bubble makers Plug the barrel plug end of the AC power cable into the AC power port on the bubble maker. Plug the other end of the cable into an outlet that has AC power available.

  • Page 14: Sensor Heads

    14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST F. Sensor heads Clean the surface of the sensor head’s inside face using an alcohol wipe. Dry with a clean cloth. Peel the backing off of the shielding and carefully line it up with the edge of the sensor head’s inside face.

  • Page 15: Connecting Sensor Heads To Cordwinder Cables

    14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST 13. Center the sensor head on the back of the device to be protected. 14. Press firmly for about 15 seconds for a strong adhesive bond. 15.

  • Page 16: Teaching Dakeys (How Do I Program The Dakey?)

    14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST IV. Teaching DaKeys DaKeys will be programmed or “taught” to the system simply by inserting them into the DaKey port on the main alarm. The first DaKey inserted will be taught automatically.

  • Page 17: Configuring The System (How Do I Program The Alarm?)

    14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST V. Configuring the system Make sure that the main alarm has power, all bubble makers have power (indicated by a green LED), all of the cradles have power (indicated by a red LED on the underside of the cradle), and that all of the sensor heads have been activated by placing them on a powered cradle (indicated by two red flashing LEDs on the sensor head).

  • Page 18: Sensor Head Alarm

    14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST VI. Sensor head alarm If the sensor head is out of the “safe zone” sphere created by the bubble makers then the red LEDs on the sensor head will begin to flash. After 1-2 seconds the sensor head will emit an alarm tone that is audible to the person holding the device.

  • Page 19: Points Of Sensing

    14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST VIII. Points of Sensing A. Micro USB power cable If the Micro USB power cable is unplugged from the protected device, or from the sensor head, or if it is cut then the main alarm will immediately be triggered.
  • Page 20 14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST Questions? Please contact Sennco Solutions technical support at: Toll free phone: 866-736-6261 Email: techsupport@sennco.com Patent pending...
  • Page 21 14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST Notes Patent pending Prepared by KM 11/2015...
  • Page 22 14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST Notes Patent pending Prepared by KM 11/2015...
  • Page 23 14407 Coil Plus Dr, Unit A | Plainfield, IL 60544 www.sennco.com | techsupport@sennco.com 815.577.3400 | Toll free 866.736.6261 Mon - Fri 9AM - 5PM CST This page intentionally left blank. Patent pending Prepared by KM 11/2015...
