Audacy ESC1000 Product Manual

Downlight/led smart connector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

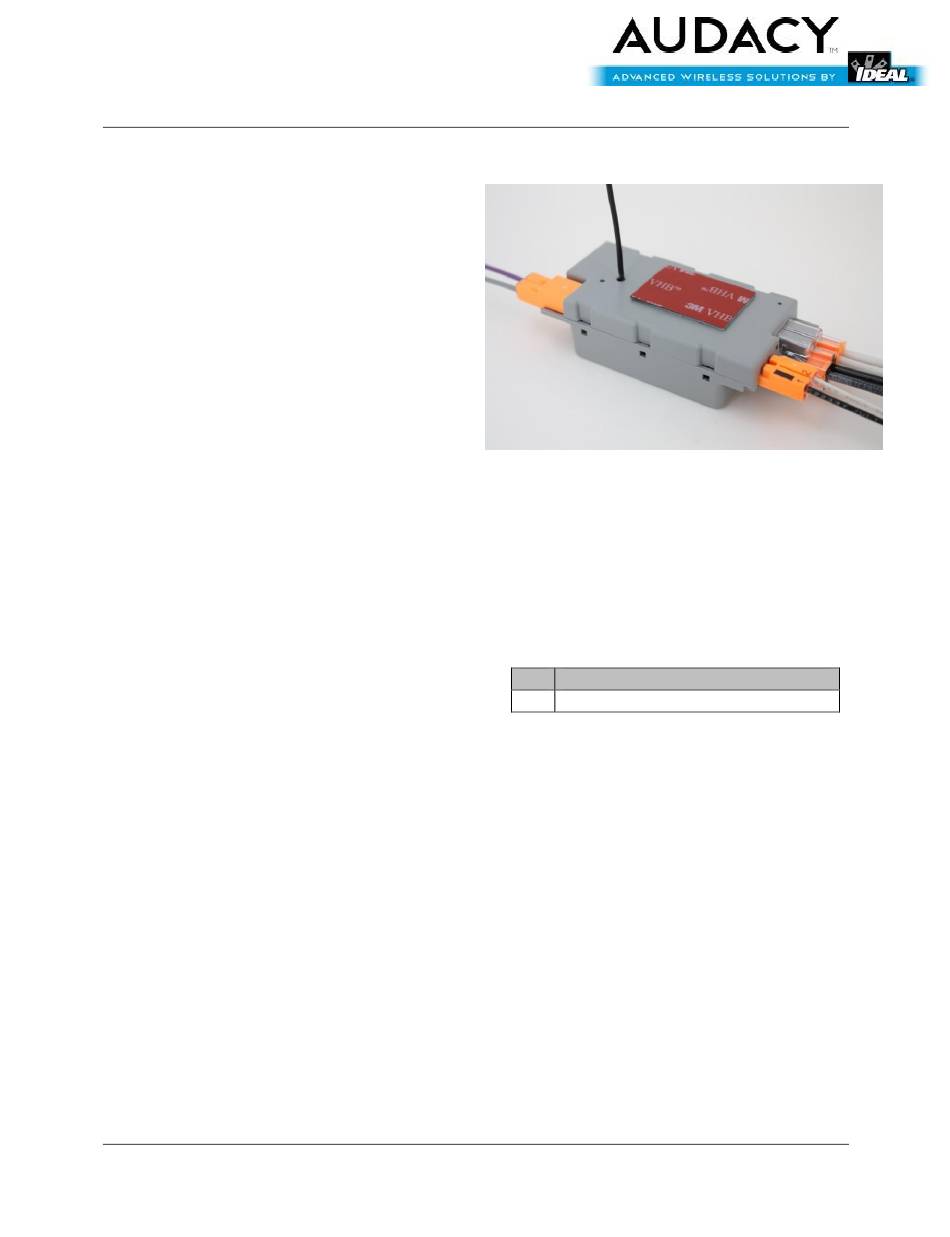

Product Manual
ESC1000 – Downlight/LED Smart Connector
PRODUCT DESCRIPTION
The DC Smart Connector is a wireless device
which
provides
electrical
between the light fixture (load) and 24V DC
power and provides on/off power control
and dimming signals to the load.
information that tells the connector to
power on/off/dim the fixture is acquired via
wireless signals that originate from a
building automation system or from room
controls,
based
on
conditions
and/or
programs.
KEY FEATURES
FCC and IC approved
Small form factor
Integrated Wire Antenna
RoHS compliant
Audacy®, Smart Connector® and Smart Switch® are registered trademarks of IDEAL INDUSTRIES.
All other trademarks are the property of their respective owners.
ND 8202-1 11/2015 Users Manual – ESC1000 Emerge Downlight/LED Smart Connector
connectivity
The
environmental
predetermined
PRODUCT CONTENTS
The following items are included inside the
package:
www.idealindustries.com
Qty Description
1
ESC1000 Smart Connector
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESC1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Audacy ESC1000

  • Page 1 Qty Description RoHS compliant ESC1000 Smart Connector Audacy®, Smart Connector® and Smart Switch® are registered trademarks of IDEAL INDUSTRIES. All other trademarks are the property of their respective owners. ND 8202-1 11/2015 Users Manual – ESC1000 Emerge Downlight/LED Smart Connector Page 1 www.idealindustries.com...

  • Page 2: Connecting The Wires

    Smart Connector. To re- connect, simply push the LINE connector into the corresponding port on the Smart ND 8202-1 11/2015 Users Manual – ESC1000 Emerge Downlight/LED Smart Connector Page 2...
  • Page 3 Smart Connector. To re- connect, simply push the DIM connector into the corresponding port on the Smart Connector. Fig. 3 Negative/gray/- conductor Positive/purple/+ conductor ND 8202-1 11/2015 Users Manual – ESC1000 Emerge Downlight/LED Smart Connector Page 3 www.idealindustries.com...
  • Page 4 1. After properly installing all wires per the instructions, fully extend the antenna. See Fig. 1. 2. Remove the backing of the double-sided tape on the ESC1000, exposing the adhesive. 3. Insert the antenna through an available open hole in the fixture trough, making sure that as much of the antenna extends into the plenum space above the fixture as possible.

  • Page 5: Specifications

    Product Manual ESC1000 – Downlight/LED Smart Connector Refer to the Audacy™ system configuration manual to associate smart connectors to other devices and to set up operating parameters for the Audacy™ lighting control system SPECIFICATIONS Item Description Radio 915 MHz External Antenna...
  • Page 6 Product Manual ESC1000 – Downlight/LED Smart Connector *Dimensions in inches ND 8202-1 11/2015 Users Manual – ESC1000 Emerge Downlight/LED Smart Connector Page 6 www.idealindustries.com...
  • Page 7 ESC1000 – Downlight/LED Smart Connector SUPPORT Technical support for IDEAL INDUSTRIES products can be initiated through the following methods: Website: http://www.idealindustries.com/support/ Telephone: +1 800-435-0705 Email: contactus@idealindustries.com ND 8202-1 11/2015 Users Manual – ESC1000 Emerge Downlight/LED Smart Connector Page 7 www.idealindustries.com...

  • Page 8: Compliance Statements

    Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne peut pas provoquer d'interférences, et (2) ce dispositif doit accepter toute interférence, y compris les interférences qui peuvent entraîner un mauvais fonctionnement de l'appareil. ND 8202-1 11/2015 Users Manual – ESC1000 Emerge Downlight/LED Smart Connector Page 8 www.idealindustries.com...

  • Page 9: Important Notice

    CUSTOMER ASSUMES THE SOLE RISK AND LIABILITY OF ANY USE OF IDEAL INDUSTRIES, INC. PRODUCTS IN CRITICAL APPLICATIONS, SUBJECT ONLY TO APPLICABLE LAWS AND REGULATIONS GOVERNING LIMITATIONS ON PRODUCT LIABILITY. ND 8202-1 11/2015 Users Manual – ESC1000 Emerge Downlight/LED Smart Connector Page 9 www.idealindustries.com...

  • Page 10: Product Manual

    This limited product warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state. ND 8202-1 11/2015 Users Manual – ESC1000 Emerge Downlight/LED Smart Connector Page 10...
