IDAHO
ASSEMBLY INSTRUCTIONS
BASE SIZE: 1.800m x 1.200m

Advertisement

loading
Need help?

Need help?

Do you have a question about the Idaho and is the answer not in the manual?

Questions and answers

Summary of Contents for Rustic Idaho

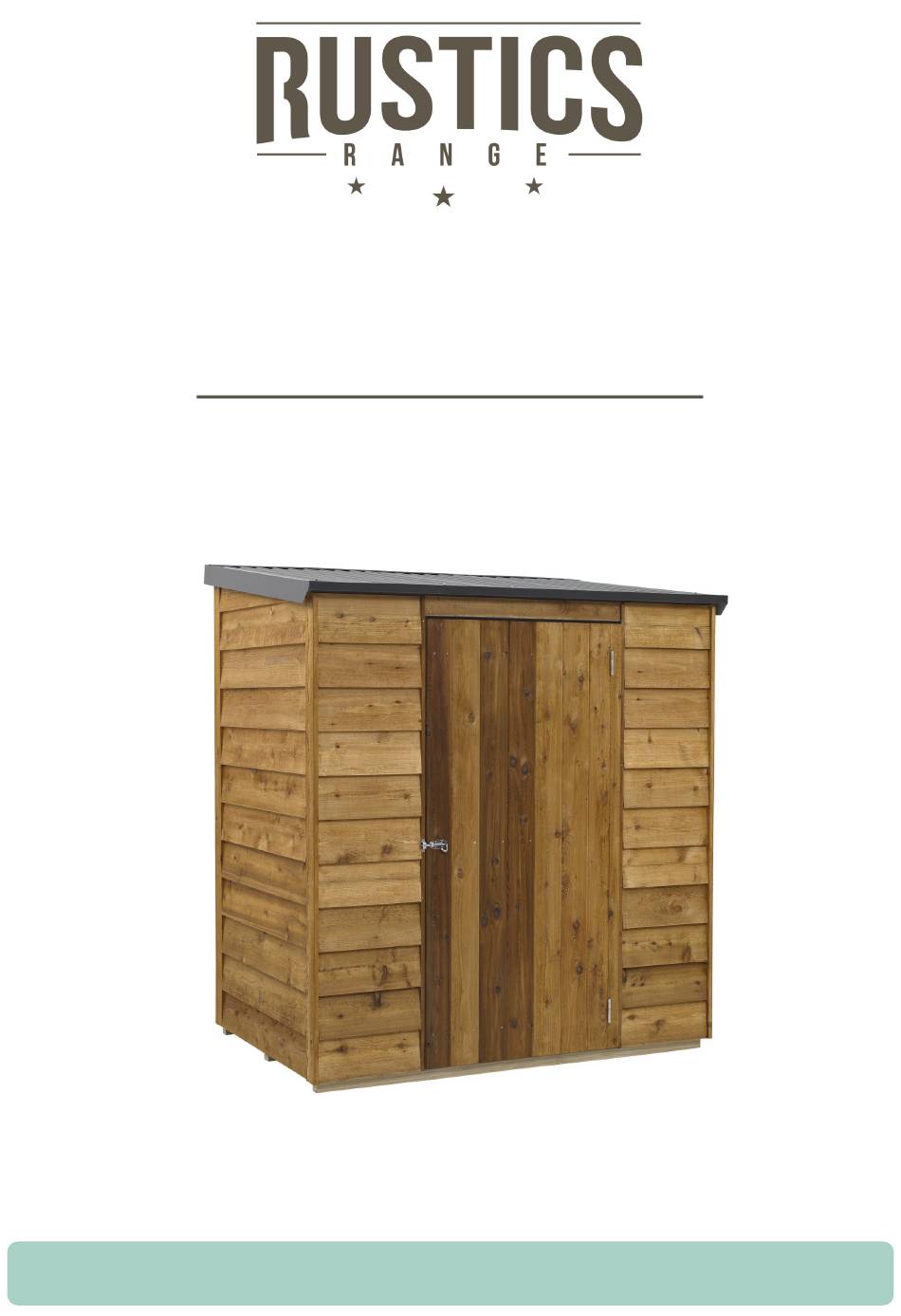

  • Page 1 IDAHO ASSEMBLY INSTRUCTIONS BASE SIZE: 1.800m x 1.200m...
  • Page 2 IDAHO • Battery Drill Tools Required: • Riveter • Hammer • Tape Measure • Ladder • Skillsaw • Level • Square Drive Bit—No.2 • 3/8 Hex Drive Bit • 8mm Hex Drive Bit • Drill Bit 3.2mm • Square Drive bit No.2 Before you start: •...
  • Page 3 IDAHO PARTS LIST Description Size PACK ONE - SHED Standard Door 895 x 1780 Front Wall Panels 450 x 1877 Back Wall Panels 900 x 2011 Side Wall Raking Panels (1L, 1R) 1110 x 2007 Door Lintel 110 x 900...
  • Page 4 IDAHO CONCRETE FLOOR OPTION Building a Raised Concrete Base Step 1: Establish size of shed and excavate sufficient area. Re- member to allow for rear roof overhang up to 150mm, and 120mm on each end. Step 2: Ensure that the base substrate is compacted firmly.
  • Page 5 IDAHO FLOOR OPTION Step 1: Lay out floor joists, spacing them evenly as shown. Using 50mm flooring nails, nail a floor board on each end, ensuring ends are flush with joists. Make sure floor is level and joists are sup- ported.
  • Page 6 IDAHO WALL PLAN 900R 900L 1110RE 1110LE 450L 450R 15 x 17mm Std Cedarbead 30 x 17mm Std Cedarbead Corner Clashing 45 x 15mm Packer Tek Screws (To secure the Walls to Floor) Please note: The walls are not screwed down to the floor until all the walls are erected, the roof is in place and the doors are about to be installed.
  • Page 7 IDAHO WALL INSTALLATION Step 4: Screw wall panels together using 75mm tek screws (3 per panel), ensuring end wall panels are inside the front and back panels as shown in the wall plan on page 5. Step 5: Silicone edge of weatherboards on the stand- ing panel, and lying your next wall down silicone the connecting edges weatherboards.
  • Page 8 IDAHO TOP LINTEL Step 7: Using the 15mm Packer screw the door lintel into place, using 2 x 75mm tek screws at each end. Screwing though the stud into the lintel. Tip: Using the screw to predrill a hole before Above Lintel from the outside, below Lintel from the inside.
  • Page 9 IDAHO CORNER CLASHINGS Step 10: Ensuring the clashing is flush at the top. Silicone and nail corner clashings on all corners as shown using 4 x bead nails per clashing. Note short clashings at the front, long clashings at the rear.
  • Page 10 IDAHO ROOF FLASHINGS Step 15: Leaving each end free and ensuring each end is flush with the edge of the roof. Rivet the ridge flashing to the roof sheets, starting from the third rib and then every eighth rib.
  • Page 11 IDAHO DOOR Step 17: Fit the temporary door stop in doorway. Check all wall panels are straight and panels either side of doorway are tight against door stop. Screw panels to floor using 1 x 75mm tek screw per panel as positioned in the Wall Plan.
  • Page 12 IDAHO Your shed is now complete. You can protect cedar by staining cedar weatherboards if required. PG 11...
  • Page 13: Warranty Registration

    TERMS AND CONDITIONS This warranty does not cover Rustic sheds with steel roofing if it is installed outside the inland corrosion zone or areas where the corrosion rate is more than 200g/m2 (as published by BRANZ) 1.
