Summary of Contents for Measurement Systems International MSI-6260CS

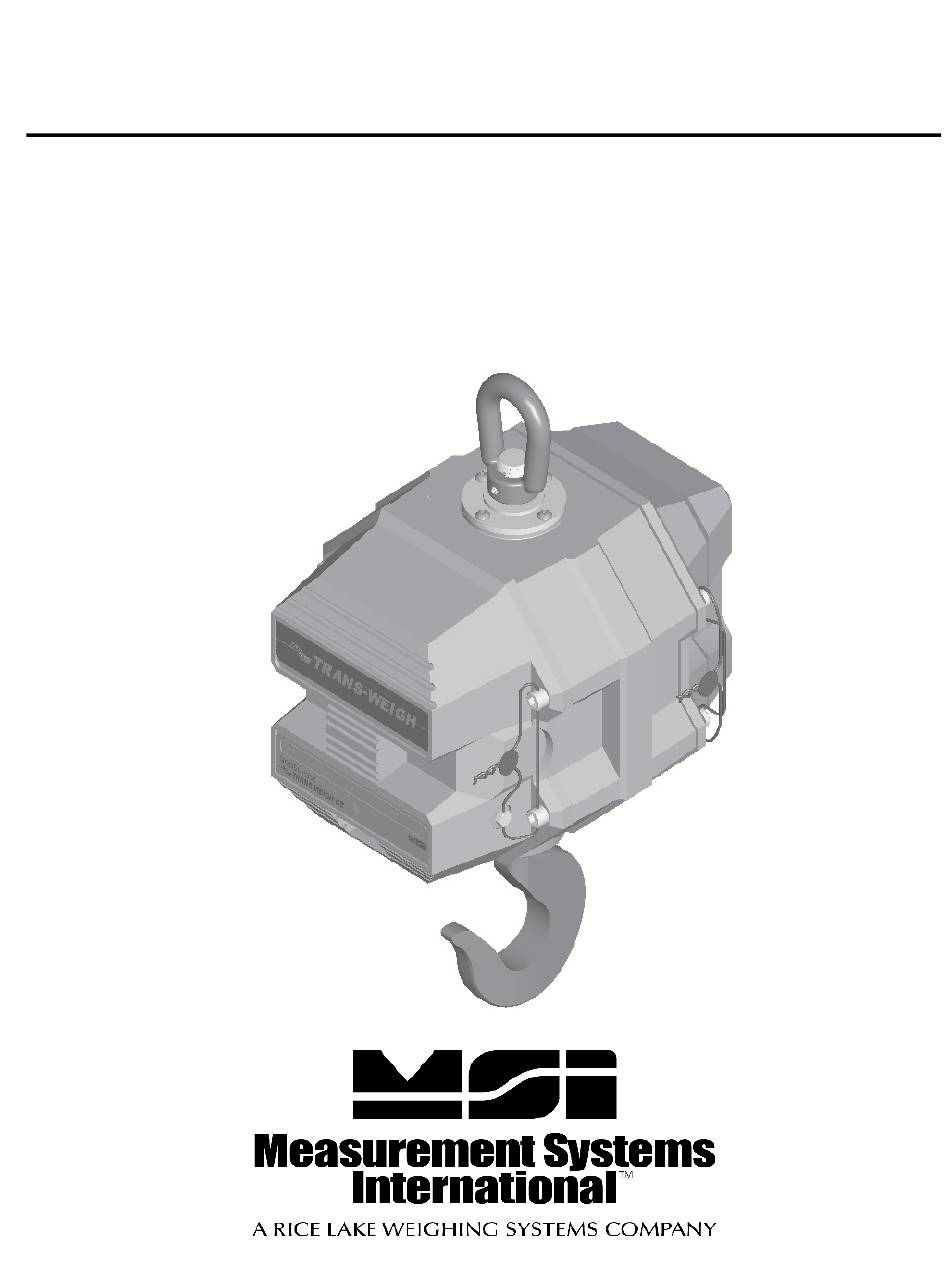

- Page 1 MSI6260cs RF Digital Crane Scale Operator’s Manual...
-
Page 2: Table Of Contents
..........12 ECTION MBEDDED CALE Accessing The CellScale ............12 Connection Procedure ..............12 Set Points ..................12 Scale Calibration .................12 Legal-For-Trade ................13 Sealing the MSI-6260CS Crane Scale ........13 – S & D ........16 PPENDIX PECIFICATIONS IMENSIONS Hardware Overview ..............16 General Features .................16 General Specifications ..............17 Dimensions and Load Train Specifications ........18... -
Page 3: Section 1 - Introduction & Installation
SECTION 1 – INTRODUCTION & INSTALLATION INTRODUCTION The MSI-6260CS Crane Scale is a member of the Measurement Systems International (MSI) CellScale system. CellScale™, the system’s central weighing and communication controller, gives you an unprecedented founda- tion for building your weighing system. For the first time, your weighing system may expand to virtually any combination of load sensors, weight displays and other data recorders —... -
Page 4: Battery Life
float charge on the battery to ensure the best possible operation times. For scales that are in high usage, MSI recommends obtaining a spare battery so one can always be on the charger. • Page 4 MSI-6260CS Crane Scale™ User Guide... -
Page 5: Battery Removal & Replacement
7) Reseat the access panel. 8) Reset the latches. Make sure the latches are completely latched and the plate is firmly in place. Rev 1 4/14/06 for SW Ver 5-xx • MSI-6260CS Crane Scale™ User Guide Page 5... -
Page 6: 6260Cs Battery Well
When opening the battery hatch, be sure to hold the battery to prevent it from falling. These batteries contain Lead and should be recycled when it has reached its end of life. • Page 6 MSI-6260CS Crane Scale™ User Guide... -
Page 7: Comm Port
CHASSIS GND Shield Ground Reference Resistor. 100Ω 1/2W 485 Termination At all receivers. Resistor. 120Ω 1/4W Terminate Shield Final receiver only. at only one end. Rev 1 4/14/06 for SW Ver 5-xx • MSI-6260CS Crane Scale™ User Guide Page 7... - Page 8 Always inspect the load train for stress and fatigue wear before returning the scale to use. There are no user servicable parts inside the 6260CS. Depot repair is performed with module and harness swaps. • Page 8 MSI-6260CS Crane Scale™ User Guide...
-
Page 9: Model 6260Cs Trans-Weigh Cs Crane Scale
MEASUREMENT SYSTEMS INTERNATIONAL REMOVING THE ELECTRONICS CASTING Rev 1 4/14/06 for SW Ver 5-xx • MSI-6260CS Crane Scale™ User Guide Page 9... -
Page 10: Section 2 - Rf Scale Communications
In conjunction with the 9020, MSI offers an advanced software solution to interface with the 6260CS, “CVM”. CVM provides a virtual meter interface for multiple scales and provides datalogging and other advanced features for computer/scale systems. • Page 10 MSI-6260CS Crane Scale™ User Guide... -
Page 11: 2.4 Ghz Interference
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their expense. Rev 1 4/14/06 for SW Ver 5-xx • MSI-6260CS Crane Scale™ User Guide Page 11... -
Page 12: Section 3 - The Embedded Cellscale
(up to 9 span points + Zero), but multi-point calibration is not usually necessary with our standard product line, being very linear from zero to capacity. The need for Multi-Point calibration is left up to the Scale Technician. • Page 12 MSI-6260CS Crane Scale™ User Guide... -
Page 13: Legal-For-Trade
The Industrial standard is just as accurate if calibrated properly, and allows multiple controller/indicators. SEALING THE MSI-6260CS CRANE SCALE The 6260CS is sealed with a standard lead-wire seal. The seal is used to prevent removal of the seal screw cov- ering the calibration enable switch. - Page 14 Cap Screws and the Seal Screw for Legal-For-Trade seal. Remove only this seal screw for access to the calibration enable switch. Do not remove the casting Cap Screws. Figure 3-1 • Page 14 MSI-6260CS Crane Scale™ User Guide...
- Page 15 MEASUREMENT SYSTEMS INTERNATIONAL The Battery Casting must be sealed to prevent tampering. This seal does not need to be removed for calibration. Figure 3-2 Rev 1 4/14/06 for SW Ver 5-xx • MSI-6260CS Crane Scale™ User Guide Page 15...
-
Page 16: Appendix - Specifications & Dimensions
Calibration is also available using the 3750CS, 9850 or 9750A Meters. Sealing the system is not necessary due to password protected calibration routines. Seal can be provided on front panel in Legal- For-Trade systems. • Page 16 MSI-6260CS Crane Scale™ User Guide... -
Page 17: General Specifications
3 Contacts internal (SS Relays). Programmable for form A or form B (normally open or normally closed). Relays rated for 60V @ 350mA. 2.5Ω maximum contact resistance. Accessible by special order. Rev 1 4/14/06 for SW Ver 5-xx • MSI-6260CS Crane Scale™ User Guide Page 17... -
Page 18: Dimensions And Load Train Specifications
Fast SLA Battery Charger (Included) – Cordsets available for Europe, UK, Australia, and USA/Japan. • Serial Input Cable 4m (Included) – MSI P/N 501705-0001. Used for addressing the embedded CellScale for Setup and/or Calibration. • Spare 12V SLA Battery – MSI P/N D00599-0004 • Page 18 MSI-6260CS Crane Scale™ User Guide... -
Page 19: The Msi Limited Warranty
INTERNATIONAL THE MSI LIMITED WARRANTY MEASUREMENT SYSTEMS INTERNATIONAL, INC., WARRANTS load sensing elements and meters against defects in workmanship and materials for a period of one year from date of purchase and warrants electrical cables and batteries against the same defects for a period of ninety (90) days from date of purchase. - Page 20 Measurement Systems International A RICE LAKE WEIGHING SYSTEMS COMPANY 14240 Interurban Avenue South Suite 200 Seattle, WA 98168-4661 Phone: 206-433-0199 Fax: 206-244-8470 www.msiscales.com © 2012 Rice Lake Weighing Systems...
