Summary of Contents for Aifro WaterEco

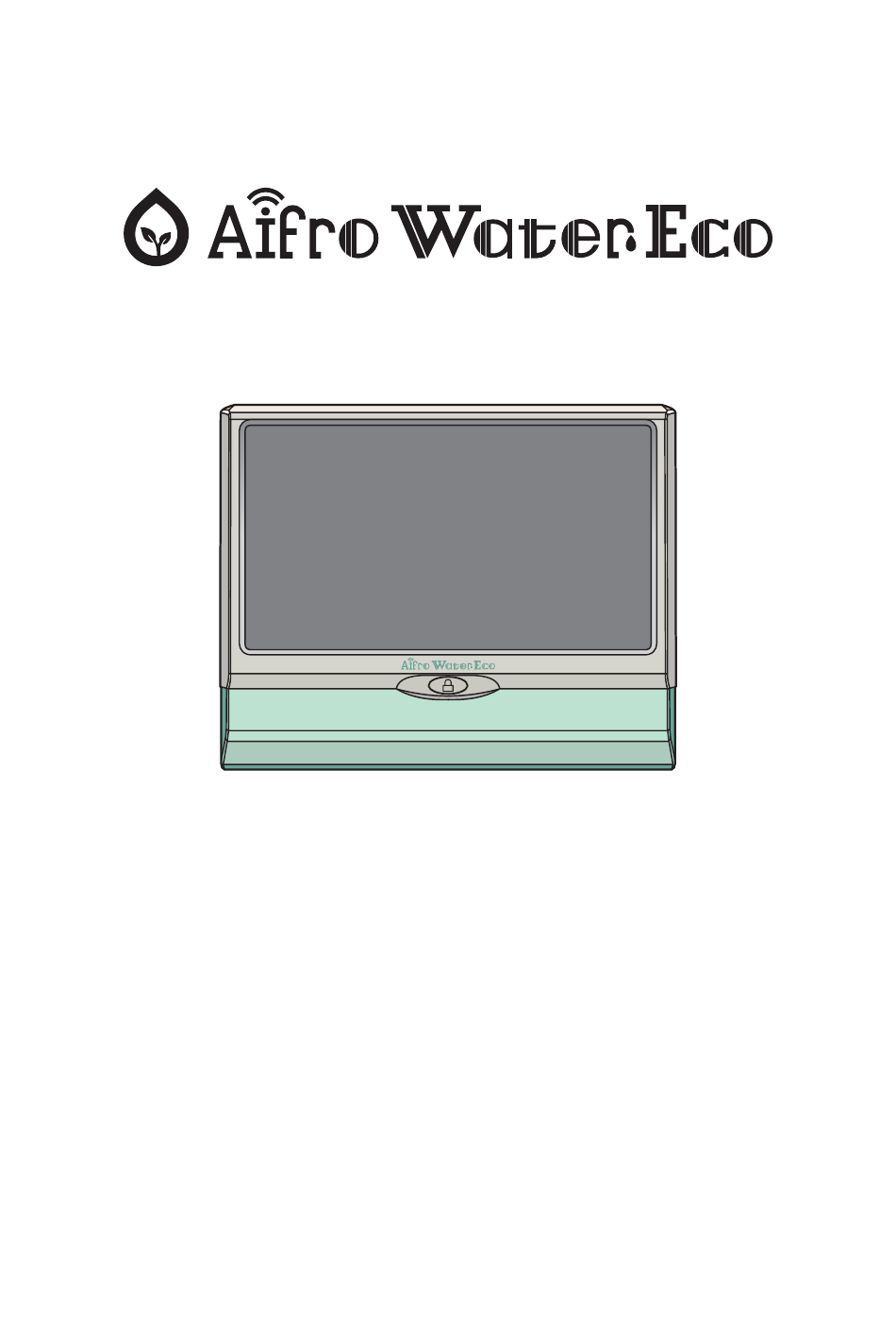

- Page 1 Aifro WaterEco User Manual...
- Page 2 In compliance with European Directive 2002/96/CE and EURONORM EN50419:2005, this device must not be thrown away with household garbage. This device must be the object of an appropriate, selective removal procedure in order to recuperate it. Aifro WaterEco User Manual...
-
Page 3: Table Of Contents
Create a Program to Water at a Set Time Advanced Options Reports Weather Forecast Wi-Fi Setting Restore the Factory Settings Specifications Hardware Features Programming Features Mechanical Specifications Wireless Specifications Troubleshooting Solutions to Common Problems Frequently Asked Questions Company FCC Standard Contact Us Copyright Statement Aifro WaterEco User Manual... -
Page 4: Check Box Contents
Check Box Contents Aifro WaterEco Quick Start Power Adapter Temperature Sensor Mounting Screws Quick Start Aifro WaterEco User Manual... -
Page 5: Introduction
If you want to resume the operation, please press the button and input the password. When you finish using Aifro WaterEco, you can also press the button to turn off the screen to save power. - Page 6 27. T3: Power negative end of 3-wire Temperature Sensor. 28. S1: Public terminal of 485 communication wire (Reserved). 29. S2: A terminal of 485 communication wire (Reserved). 30. S3: B terminal of 485 communication wire (Reserved). Aifro WaterEco User Manual...
-
Page 7: Installation
Installation When installing Aifro WaterEco for the first time, it is recommended that you complete the following steps in order. 1. Check box contents 2. Gather installation tools (See below) 3. Select a location 4. Mount Aifro WaterEco 5. Connect the power adapter 6. -
Page 8: Select A Location
2. Align the back of Aifro WaterEco on the screws and hang it on the wall, record the hole location on the lower-left and lower-right corner with the pencil. Remove Aifro WaterEco, drill holes on the recorded locations, insert the expansion plug and planish. -
Page 9: Connect The Power Adapter
(1) Open the green waterproof cover under the screen. (2) Connect the 24V AC power adapter to the terminals. NOTE: A 24V AC power adapter is necessary. An adapter of other models may damage Aifro WaterEco. Aifro WaterEco User Manual... -
Page 10: Wiring Connection
Do not route the zone wires through the same opening as the power wiring. Connect one end of the zone wires to the terminals of Z1 to Z16 and then connect the other end to the "COM" terminal. Aifro WaterEco User Manual... -
Page 11: Connect The Master Zone
Installation Connect the Master Zone Connect an optional Master Zone to Aifro WaterEco Connect one end of the zone wire to the "MST" terminal and then connect the other end to the "COM" terminal. Aifro WaterEco User Manual... -
Page 12: Connect An Optional Rain Sensor (Wired Or Wireless)
Connect an Optional Rain Sensor (Wired or Wireless) Connect an optional rain sensor to Aifro WaterEco NOTE: Aifro WaterEco is not compatible with a Normally Open rain sensor. It is designed for use with a Normally Closed rain sensor. Aifro WaterEco User Manual... -
Page 13: Connect The Temperature Sensor
Please connect wires strictly by color. Mismatched connection may damage the sensor. Reserved terminals of S1, S2, S3 Currently, the terminals of S1, S2 and S3 are not active. Please do not connect wires onto them. Aifro WaterEco User Manual... -
Page 14: Operation
Operation Setup Wizard When using Aifro WaterEco for the first time, you need to make some settings. After tapping the "Start Setup Wizard" button, select a proper Wi-Fi, input the correct password and tap the "Connect" button. Note: You can also tap the "Next" button directly to skip this step. - Page 15 You can also check the option "Automatically upgrade firmware at background" to upgrade the firmware automatically at background in the idle time when there is a new version. After the connection, you can change your password for managing Aifro WaterEco and modify the device name. The default device password is 12345678.
- Page 16 Operation Input the information about country, state, city and zip code to obtain accurate weather forecast. Set the date, time and time zone. Aifro WaterEco User Manual...
- Page 17 AI smart adjustment. You can tap the "?" button to get detailed information. Set the program configuration. You can select to define the repeat frequency, beginning time and delay between zones. You can tap the "?" button to get detailed information. Aifro WaterEco User Manual...
- Page 18 Operation After finishing the above settings, please tap the "Done" button to finish the setup wizard. Then it will jump to the main interface. Enjoy intelligent and automatic watering now! Aifro WaterEco User Manual...
-
Page 19: Several Watering Methods
Manually water all zones Manually water multiple zones Create a program to water at a set time Manually water one zone 1. Open Aifro WaterEco to enter the main interface. 2. Tap any zone you want to water. Aifro WaterEco User Manual... - Page 20 "Cycle and Soak", select the plant type, select the soil type and set the regular duration of watering. 2. If you don't want to water at once, tap the "Delay" button and set the delay time, such as 5 minutes later, 10 minutes later, 1 hour later, etc. 4. The watering starts. Aifro WaterEco User Manual...
-
Page 21: Manually Water All Zones
5. The watering is finished. It will go back to the main interface and the frame color of the watered zone will turn blue. Manually water all zones 1. Open Aifro WaterEco to enter the main interface. Aifro WaterEco User Manual... - Page 22 During the watering process, you can tap the "Stop" or "Pause" button to stop or suspend the watering anytime. 3. The watering is finished. It will go back to the main interface and the frame color of all zones will turn blue. Aifro WaterEco User Manual...
-
Page 23: Manually Water Multiple Zones
Operation Manually water multiple zones 1. Open Aifro WaterEco to enter the main interface. 2. Hold any zone for a few seconds, and then you can select multiple zones to water. Aifro WaterEco User Manual... - Page 24 During the watering process, you can tap the "Stop" or "Pause" button to stop or suspend the watering anytime. 4. The watering is finished. It will go back to the main interface and the frame color of the watered zones will turn blue. Aifro WaterEco User Manual...
-
Page 25: Create A Program To Water At A Set Time
Operation Create a program to water at a set time 1. Open Aifro WaterEco to enter the main interface. 2. Tap the three-dot sign on the top right side and select "Program settings". Aifro WaterEco User Manual... - Page 26 Note: You can also tap the zone and set the zone name, change the zone icon, enable/disable AI smart adjustment, enable/disable "Cycle and Soak", select the plant type, select the soil type and set the regular duration of watering. Aifro WaterEco User Manual...
- Page 27 You can add more programs in the same way and then the programs will be monitored. Note: If you want to delete programs, please tap the program area, and select "Delete" to delete the program. 5. When the set time arrives, zones will be watered automatically. Aifro WaterEco User Manual...
- Page 28 6. When the watering for the first zone is finished, there will be a delay interval as you set. If you did not set the value of "Delay between zones", zones will be watered consecutively without delay. 7. After the delay interval, subsequent zones will be watered in the same way. Aifro WaterEco User Manual...
- Page 29 Operation 8. After all zones are finished, it will get back to the main interface, and the frame color of the watered zones will turn blue. Aifro WaterEco User Manual...
-
Page 30: Advanced Options
Operation Advanced Options Aifro WaterEco User Manual... -
Page 31: Reports
Select whether to enable Aifro WaterEco to sleep at low temperature. Set a minimum value for temperature. When the temperature drops below the set value, Aifro WaterEco will suspend all watering tasks, which will save you plenty of water in winter. - Page 32 Operation Aifro WaterEco User Manual...
- Page 33 Operation Aifro WaterEco User Manual...
- Page 34 Operation Aifro WaterEco User Manual...
-
Page 35: Weather Forecast
Operation Weather Forecast This interface shows the information about weather forecast in the next 5 days. Aifro WaterEco User Manual... -
Page 36: Wi-Fi Setting
If you forgot your device password, the only method is to restore the factory settings to reset your password. Hold the "Reset" button for about 5 seconds and Aifro WaterEco will be reset. After Aifro WaterEco is reset, you can login with the default password "12345678" and modify the password on the "Settings" - "Advanced settings" interface. -
Page 37: Specifications
● Daily, every X days, specific week days Mechanical Specifications ● Dimensions: 18cm * 14.8cm (7.09 x 5.83 in) ● Weight: 440g (net weight), 1330g (gross weight) ● Package contains: Aifro WaterEco, temperature sensor, quick start, mounting screws, 24V power adapter Aifro WaterEco User Manual... -
Page 38: Wireless Specifications
Operating Temperature: 0 ℃ to 40 ℃ Environment Storage Temperature: -20 ℃ to 75 ℃ Operating Humidity: 10% ~ 90% (Non Condensing) Storage Humidity: 5% ~ 95% (Non Condensing) FCC (USA) CE Mark (Europe) Compliant RoHS Compliant Wi-Fi Compliant Aifro WaterEco User Manual... -
Page 39: Troubleshooting
Aifro WaterEco, iOS/Android devices and PC with almost the same interfaces. Does Aifro WaterEco communicate via Wi-Fi? Yes, it communicates via Wi-Fi only. If no Wi-Fi is available, Aifro WaterEco will still work but the mobile app can not be used properly. - Page 40 Does Aifro WaterEco consider different plant types for different zones and adjust watering amounts based on that? Yes, it does. You can select the plant type for each zone in "Zone Settings". Then, Aifro WaterEco will adjust your watering amount according to weather data.
-
Page 41: Fcc Standard
"Upgrade" button to finish the firmware update. Can Aifro WaterEco be set to not water if it 1) has rained in the last x hours/days, 2) is currently raining, 3) is forecasted to rain in the next x hours/days? What method... -
Page 42: Contact Us
Aifro Inc. Terms and Conditions of Use - Please read these terms carefully before using this site. The information contained in this site is provided by Aifro Inc. and may be used for informational purposes only. Disclaimer THE MATERIALS DISPLAYED ON THIS WEB SITE MAY CONTAIN INACCURACIES AND TYPOGRAPHICAL ERRORS. - Page 43 FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
