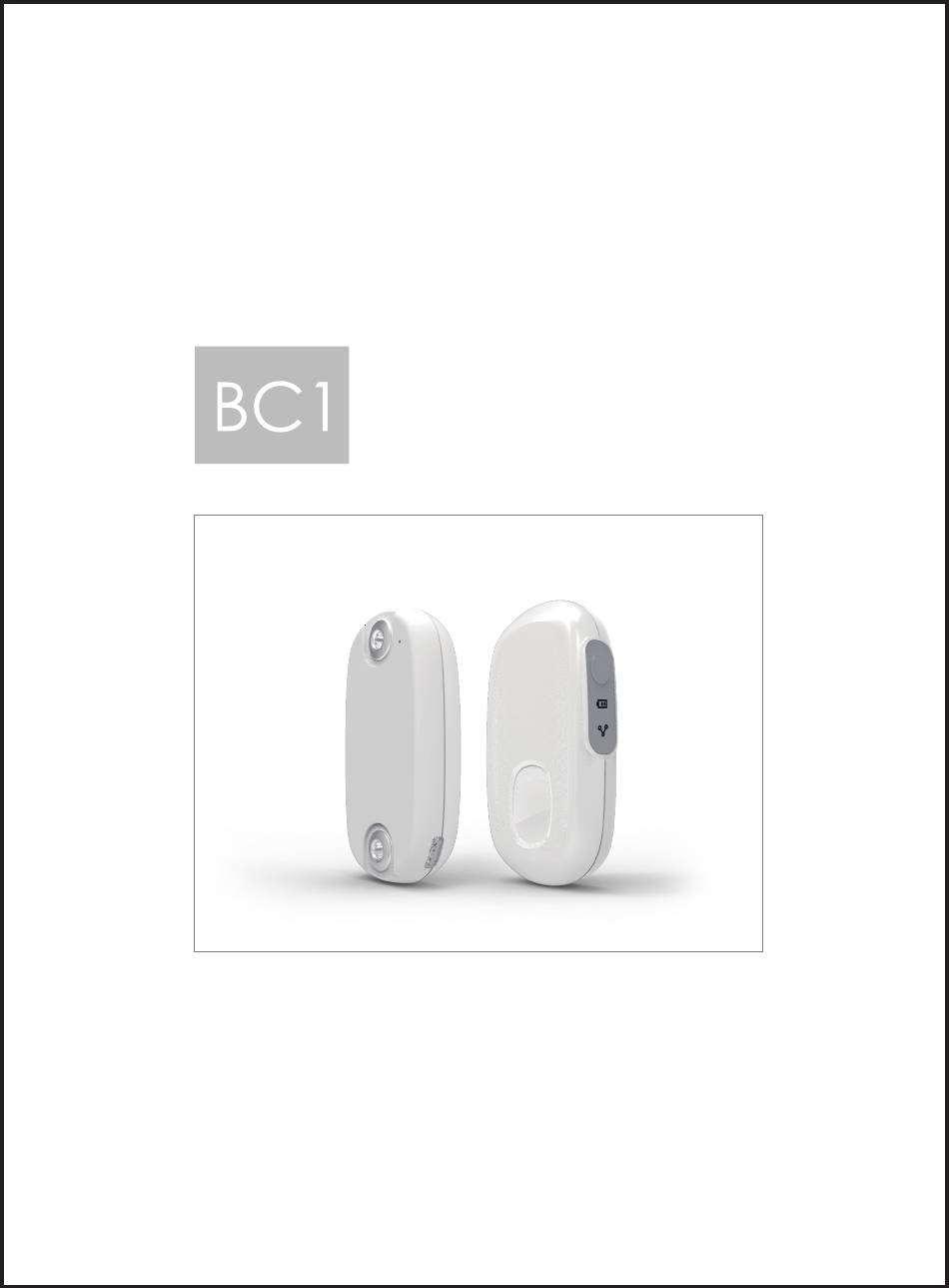

Page 1 Instruction Manual Portable ECG Monitor...
Page 2 Please read this entire instruction manual. If you are using this device for the very first time, please follow the instructions and use it correctly. Please keep the instruction manual for future reference. XYZlife does not bear legal responsibilities for any casualty or product damage caused by users’ misuse.
Page 3: Table Of Contents
Product Description and Indication of Use .........4 Components and Accessories Procedure of Set-up ..................7 Initial Set Up XYZlife BC1 Patch Procedure (with Optional Electrode Patch) Battery ......................9 Important Notes on Taking a Reading ..........9 Care and Maintenance ................10 Sound and Lighting Messages...
Page 4: Caution
Caution Safety Conditions This product is designed to monitor ECG (Electrocardiogram) only. Do not use for any other purpose: such as monitoring life signal or emergency. Use for self-diagnosis or self- treatment is dangerous, please always consult your doctor if you notice any change in your condition, regardless of your measurement result.
Page 5 Caution WARNING！ • Do not use the device in ICU or operation room. • Do not use the device in hospital or other medical institutions without the permission of physicians. This product could impact other medical devices. • Do not use the device together with defibrillator (AED). •...
Page 6: Product Description And Indication Of Use
The BC1 record and store user’ s physical data, wirelessly transmit such data to and display on user’ s smartphone. BC1 is intended to be use on users who require monitoring for non-life threatening arrhythmias at home.
Page 7 Product Description Component 1 / Main Unit Main Unit Function A. Power Button Press 1st time to power ON, 2nd time to power OFF LED light to display current battery life B. Battery LED Green light: Full power / Flashing red light: Charging / Red light: Battery hour is less than 6 hours LED light to show system status LED light to display current battery life...
Page 8 USB Connector Model:GS2U-006-050-A Input: 100-240V~0.2A 60/50Hz Output: 5V 1200mA 6W Max Charger is complied with 60601-1 3.0 regulation * Please use charger designated for XYZlife Patch only Electrode Patch Device Name: Medi-Trace 200 and Medi-Trace 200-30 ECG Electrodes 510(k) Number: K960968...
Page 9: Procedure Of Set-Up
2.Download BC1 App to your mobile device (The device supports Android4.4 or more updated version, as well as iOS7.0 or more updated version.) Please find and download Apps for XYZlife Patch on Google Play or App store). 3.Follow APP instruction to complete initial set up and Bluetooth connection.
Page 10: Initial Set Up
Initial Set Up 3. Calling Key -Press the calling key on the front of the main unit to make warning beep sounds. -After 30 seconds, the main unit will send calling texts to preset contact persons. WARNING： Press calling key again to stop mis-trigger (Warning beep sounds will stop) 4.
Page 11: Battery
Battery Battery Life and Charge 1. The product is using Li ion rechargeable battery. 2. Use designated charger to charge the battery. Please charge fully in first time use. 3. Battery LED displays GREEN light when charging is completed. 4. The battery with full power works continuously for 8 hours. 5.
Page 12: Care And Maintenance
Care and Maintenance Sound and Flashing Sound Message Note 1. Confirm POWER ON/OFF Beep/ 1 short beep 2.Detect ECG signal Beep/ Battery power is less than 60% 3 long beeps Beep/ System Error Please refer to troubleshooting 5 long beep Continuous Calling beeps...
Page 13: Troubleshooting
Care and Maintenance Troubleshooting Problem Cause Solution Battery is exhausted and Please charge the device, Unable power ON voltage is too low waiting for GREEN light. Make sure the distance Device unable to Distance between the device between device and mobile sync with mobile and mobile is too far.
Page 14: Storage
Care and Maintenance Storage 1. Do not place any object on the top of the main unit, or strike it. This could damage it. 2. Do not wipe the device or electrode connecting point with benzene, gasoline, paint thinner, concentrated alcohol, or other solvent detergents. 3.
Page 15: Fcc Statement
Guidance and manufacturer’ s declaration - electromagnetic Emissions The BC1 ECG monitor is intended for use in the electromagnetic environment specified below. The customer or the user of the BC1 ECG monitor should assure that it is used in such an environment.
Page 16 Guidance and manufacturer’ s declaration - electromagnetic immunity The BC1 ECG monitor is intended for use in the electromagnetic environment specified below. The customer or the user of the BC1 ECG monitor should assure that it is used in such an environment.
Page 17 This Device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Page 18: Specification
This regulation defines the bearable interference level from any medical device, and the level of output electromagnetic. XYZlife manufactured medical device is complied with EN60601-1-2:2012 regulation. However, it is strongly recommended to follow WARNING points below: 1.Do not use the device near high volt or EMC filed.
Page 19 Battery Spec. : Li-ion, 620mAh Charger Spec. : Input: 100-240V~0.2A 60/50Hz / Output: 5V 1200mA 6W Max Contents : BC1 main unit, Charger (comply with medical device regulatory), Carry bag, Instruction Manual, Quick guide/ Manual Other symbols: Please carefully read the manual NOTE: Specifications may be changed without prior notice.
Page 20 Symbols Used for Product or Package Symbols Meanings Manufacture: Kinpo Electronics, Inc. Address: 10F, No. 99, Sec5, NanJing E. Rd, Taipei City 105, Taiwan Website: www.xyz-life.com Manufactured in Thailand Manufacturing batch / lot No. Protection type and range against electrical shock (Body Floating isolated applied part) Date of manufacture, Century year xxxx month xx date xx...
Page 21 Symbols Used for Product or Package Symbols Meanings The device complies with Federal Communications Commission Recycling Symbol International protecting mark Serial Number of product WARNING and Cautions Please follow the instructions carefully Transportation and storage temp. requirement Transportation and storage humanity requirement Warning symbol denoting a device's susceptibility to electrostatic discharge.
Page 22 NOTE...
Page 23 NOTE...
Page 24 NOTE...
Page 25 HDWM4912Z00...
