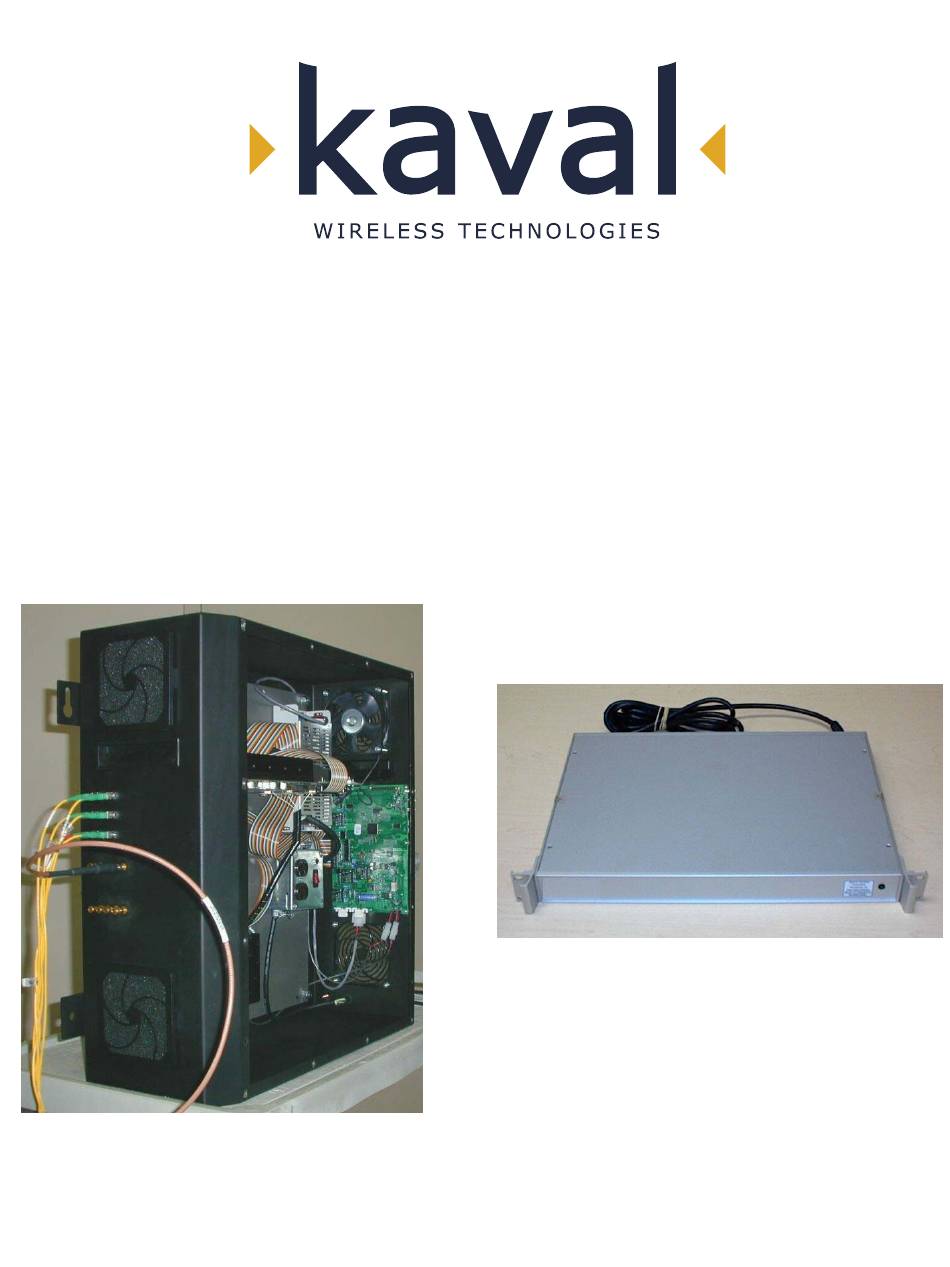

L i n k N e t
S a t e l l i t e
U n i t
( L S U )
R F -
F I B E R
I n t e r f a c e
M o d u l e s
U s e r
M a n u a l
I n s t a l l a t i o n , O p e r a t i o n
A n d M a i n t e n a n c e
KAVAL WIRELESS TECHNOLOGIES
60 Gough Road
Markham, Ontario, L3R 8X7
Telephone: (888) 86-KAVAL
Web: www.kaval.com
E-mail: info@kaval.com
Document #DCM000000052, Rev.5a
June 17, 2003
Advertisement
Table of Contents
Related Manuals for Kaval LNKFIB-H01
Summary of Contents for Kaval LNKFIB-H01
- Page 1 I n s t a l l a t i o n , O p e r a t i o n A n d M a i n t e n a n c e KAVAL WIRELESS TECHNOLOGIES 60 Gough Road...
- Page 2 TECHNOLOGIES waives responsibility for any labour, materials, or costs incurred by any person or party as a result of using this document. KAVAL WIRELESS TECHNOLOGIES, and any of its affiliates shall not be liable for any damages (including, but not limited to, consequential, indirect or incidental, special damages or loss of profits or date) even if they were foreseeable and KAVAL WIRELESS TECHNOLOGIES has been informed of their potential occurrence, arising out of or in connection with this document or its use.
-
Page 3: Table Of Contents
SatelLink USER MANUAL DCM000000052 T A B L E C O N T E N T S LSU MODULES ........4 ........11 ODULE PECIFICATIONS ..12 EMOTE ODULE ARRIER ATING ............. 4 VERVIEW ............13 PERATION Theory Of Operation......... 4 Normal Operation ........... -
Page 4: Lsu Modules
This is a Wall-Mounted Remote Module that connects to the Single- LNKFIB-R01 Mode Fiber-Optic Distribution Lines and provides eight local Distribution Antennae for Signal Extension. NOTE: With these Modules, there is always a grouping of three (3) of LNKFIB-H01's to every four (4) LNKFIB-R01's. Revision Date:6/19/03 Printed: 03.06.19,16:02... -
Page 5: Lsu Head-End Module
SatelLink USER MANUAL LSU Head-End Module Block Diagrams RF Out #1 RF Out #2 RF Out #3 SM F.O. In (PIN Diodes) RF Out #4 PreAmps RF Input SM F.O. Out (Lasers) Laser Diode PreAmp Power Supply FO Laser and PIN Diode Monitors 120 / 240 VAC Fault Relay... -
Page 6: Lsu Remote Module
SatelLink USER MANUAL LSU Remote Module 1.9 GHz 1.9GHz 1.9GHz 869-894 MHz Cellular 800-900MHz 851-869 MHz IDEN & Four Antenna 928-941 MHz SM F.O. In Ports PreAmp (PIN 1.9GHz Loose 1.8 GHz Couplers Cellular 824-849 MHz Notch 851+ IDEN & 806-824 MHz Notch 894- 2 RF Ports to... -
Page 7: Connections
SatelLink USER MANUAL LSU Head-End Module Connections Head-End Connections SC/APC SingleMode Fiber-Optic & SMA RF Connectors AC Power Cord TX In Downlink Optical Outputs Uplink Optical Inputs Uplink RF Outputs Downlink RF Input The Head-End has one Downlink RF Input providing the signal for four Downlink Optical Outputs, thus each Head-End Module services one and only one of the three Fiber-Pairs (PCS, Cellular, or iDEN/Trunking). -
Page 8: Lsu Remote Module
SatelLink USER MANUAL LSU Remote Module Antenna Port Connections SMA Connections Four Direct Antenna Connections Downlink Sampler Port Uplink Sampler Port Two Expansion Antenna Connections The Remote Module has 8 SMA RF Connections.. Main Antenna Ports (4): Used to connect to four identical distributed indoor antenna systems. - Page 9 SatelLink USER MANUAL Fiber Optic Port Connections SC/APC SingleMode Fiber-Optic Connectors PCS Downlink Optical Input PCS Uplink Optical Output Cellular Uplink Optical Output Cellular Downlink Optical Input iDEN/Paging Uplink Optical Output iDEN/Paging Downlink Optical Input The Remote Module has 6 SC/APC Single-Mode Fiber-Optic Connections for cabling to the Head-End...
-
Page 10: Lsu Head-End To Remote Interconnects
SatelLink USER MANUAL LSU Head-End to Remote Interconnects Head-End to Remote Fiber-Optic Connections Groupings of 3 Head-Ends to every 4 Remotes PCS Head-End To 3 More Remote Modules Remote Module Cell Head-End To 3 More Remote Modules iDEN / Paging To 3 More Head-End Remote Modules... -
Page 11: Specifications
SatelLink USER MANUAL DCM000000052 Downlink: 851-869 MHz iDEN & Pub Safety Module Specifications 869-894 MHz Cellular 928-941 MHz Paging 1930-1990 MHz PCS Frequency Bands Uplink: 806-824 MHz iDEN & Pub Safety 824-849 MHz Cellular 896-902 MHz Paging 1850-1910 MHz PCS iDEN/Cell/Paging Combined: Maximum Power +35 dBm IP3 Typical... -
Page 12: Ating
+16.1 +14.8 Note: The above levels are for Analog Narrowband FM. For CDMA, TDMA, GSM Signals the levels must be typically 3 to 5 dB lower than those shown. Consult Kaval Wireless Technologies for further information. Revision Date:6/19/03 Printed: 03.06.19,16:02... -
Page 13: Peration
Displays or Sets the Cellular Transmit Gain (in tenths of a dB). GAINPAGE ###: Displays or Sets the iDEN and Paging Transmit Gain (in tenths of a dB). Please consult Kaval Wireless Technologies for further support. Revision Date:6/19/03 Printed: 03.06.19,16:02... -
Page 14: Safety
SatelLink USER MANUAL DCM000000052 • Laser Safety Both the Head-End and Remote Modules have Class IIIb Laser Devices as Fiber-Optic Transmitters. • Under normal installation both Modules are intrinsically-safe (Class I) since the Fiber-Optic cabling will be installed. • Only qualified service personnel should remove / install the Fiber-Optic cabling! Revision Date:6/19/03 Printed: 03.06.19,16:02... -
Page 15: Installation
Signal Taps at various points connected to the fixed-mounted Indoor Antennae. This is shown in the figure in the Introduction. The Indoor Antennae are simple 1/4 Wavelength (0 dB Gain) types. They are used with KAVAL WIRELESS TECHNOLOGIES 12, 16, or 20 dB Cable Taps. As such the maximum EIRP will be at the first Tapped Antenna, which will be 12 dB below the maximum signal level of the LSU (+40 dBm);...
