Summary of Contents for MICRO-EPSILON optoCONTROL EDU190

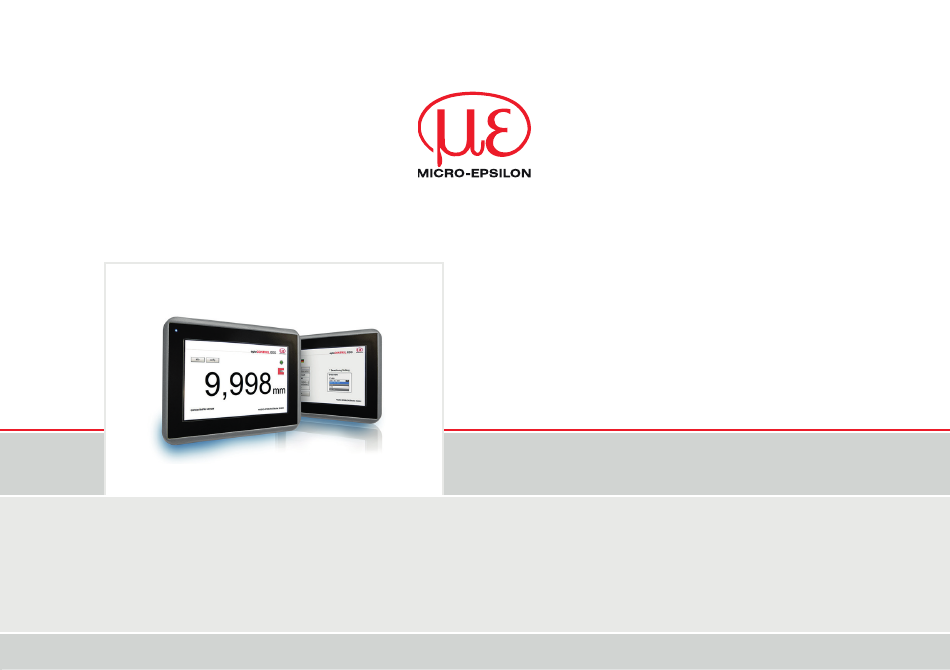

- Page 1 Operating Instructions optoCONTROL EDU190 EDU190-4 Pro EDU190-7 Pro MICRO-EPSILON Eltrotec GmbH Heinkelstraße 2 · 73066 Uhingen / Germany Tel. +49 (0) 7161 / 98872-300 · Fax +49 (0) 7161 / 98872-303 eltrotec@micro-epsilon.de · www.micro-epsilon.com...
- Page 2 Digital Display MICRO-EPSILON Eltrotec GmbH Heinkelstraße 2 73066 Uhingen / Germany Tel. +49 (0) 7161 / 98872-300 Fax +49 (0) 7161 / 98872-303 eltrotec@micro-epsilon.de www.micro-epsilon.com...
-
Page 3: Table Of Contents
Software ..........................20 Basic Settings ..............................20 Software ................................. 22 5.2.1 Settings ............................22 5.2.2 Display Measurement Value ......................25 5.2.3 Sensor Information ........................27 Liability for Material Defects ....................28 Service, Repair ........................28 Decommissioning, Disposal ....................28 optoCONTROL EDU190... - Page 4 Appendix Accessories ..........................29 A 1.1 Connecting the Digital Display to ODC1202 / ODC1220 ................29 A 1.2 Connecting the Digital Display to ODC2500 / ODC2600 ................29 A 1.3 Connecting the Digital Display to ODC2520 ....................29 optoCONTROL EDU190...
-
Page 5: Safety
In case of eye contact, hold the eye open, flush with plenty of water and get medical attention. > Risk of injury, damage to the eyes or skin Connect the power supply according to the safety regulations for electrical equipment. > Risk of injury, damage to or destruction of the system optoCONTROL EDU190 Page 5... -
Page 6: Notes On Ce Marking
Avoid use in direct sunlight, strong magnetic fields, high temperatures and sudden temperature changes. > Color alterations on the display or system failure Notes on CE Marking The following apply to the optoCONTROL EDU190: - EU Directive 2014/30/EU - EU Directive 2011/65/EU Products which carry the CE mark satisfy the requirements of the EU directives cited and the European harmonized standards (EN) listed therein. -
Page 7: Intended Use
Safety Intended Use The optoCONTROL EDU190 digital display is designed for use in industrial and laboratory applications. It is used to display the measurement values and parameters of all optical optoCONTROL ODC micrometers with digital interface. The system must only be operated within the limits specified in the technical data, see 2.2. -
Page 8: Functional Principle, Technical Data
The digital display is compatible with all optical micrometers from Micro-Epsilon that have a digital interface. The sensors can be connected either serially (RS232, RS422) or via Ethernet. -
Page 9: Technical Data
-10 °C … +60 °C (+14 ... +140 °F) front IP 66 IP 65 Protection class rear IP 20 Shock 15 g, semi-sinusoidal, 11 ms (IEC60068-2-27) Vibration 1 g (IEC60068-2-6) Certifications CE, UL 61010-2-201 Weight approx. 0.5 kg approx. 0.8 kg optoCONTROL EDU190 Page 9... - Page 10 Functional Principle, Technical Data Model EDU190-4 Pro EDU190-7 Pro Display polyester on glass, ITO film Material Housing (rear) powder-coated aluminum Frame material Autoflex EBA 180L Installation front panel installation Cut-out dimensions 130 x 89 mm 189 x 128 mm optoCONTROL EDU190 Page 10...
-
Page 11: Delivery
If there is damage or parts are missing, immediately contact the manufacturer or supplier. Optional accessories are available in the appendix, see A 1. Storage Storage temperature: -20 ... +70 °C (-4 ... +158 °F) Humidity: 5 to 85 % (non-condensing) optoCONTROL EDU190 Page 11... -
Page 12: Installation And Assembly
Avoid use in Ex areas. WARNING > Death or injury due to explosion hazard Avoid use in direct sunlight, strong magnetic fields, high temperatures and sudden temperature changes. > Color alterations on the display or system failure optoCONTROL EDU190 Page 12... - Page 13 Cut out dimensions for the installation of the digital display: 130 x 89 mm (5.12 x 3.50 inches) 189 x 128 mm (7.44 x 5.04 inches) Fig. 2 Dimensional drawing optoCONTROL EDU190-4 Pro, Fig. 3 Dimensional drawing optoCONTROL EDU190-7 Pro, dimensions in mm (inches), not to scale...
-
Page 14: Pin Assignment
- Digital display: +24 VDC (18 - 32 VDC) - Sensor: The exact values can be found in the operating instructions of the respectively con- nected sensor. Power consumption: - EDU190-4 Pro: 12 W (24 V) - EDU190-7 Pro: 14.4 W (24 V) optoCONTROL EDU190 Page 14... -
Page 15: Cables
RS232 9-pol. SubD ODC1220 EDU190 PC190-2 29011209 Power Green 24 VDC power connector supply Please refer to the individual operating instructions of the corresponding Micro-Epsilon sensors for cables and connections required to operate the individual sensors. optoCONTROL EDU190 Page 15... -
Page 16: Connections For Optocontrol Odc1202 / Odc1220
Power supply COM connection RS422 / RS232 8-pin. female connector Binder series 712 (SPS female connector) Ports on the display bottom side Ports on the controller for ODC1202/ ODC1220 Fig. 6 Connections for optoCONTROL ODC1202 / ODC1220 optoCONTROL EDU190 Page 16... -
Page 17: Connections For Optocontrol Odc2600 / Odc2500
Power supply LAN connection COM connection Receiver Light source RS422 / RS232 (12-pin) (5-pin) (3-pin) Ports on the display bottom side Ports on the controller for ODC2600 / ODC2500 Fig. 7 Connections for optoCONTROL ODC2600 / ODC2500 optoCONTROL EDU190 Page 17... -
Page 18: Connections For Optocontrol Odc2520
ODC2520 sensor separately with the operating voltage. The RS422 connection requires the PC/SC2520-3/IF2008 and PC/SC190-3 cables, see A With the RS422 variant (red lines), the ODC2520 sensor is supplied via the EDU190 digital display. optoCONTROL EDU190 Page 18... -
Page 19: Displays
No flashing when the digital display is not connected with the sen- sor. The ON/OFF status is dis- played on the blue multicolor LED on the left side of the digital display. optoCONTROL EDU190 Page 19... -
Page 20: Software
If connection problems occur with Ethernet, please check whether the sensor has been set to the standard IP address. If necessary, reset the sensor to factory settings. In order to use a different IP address of the EDU190, please contact the MICRO-EPSILON Eltrotec GmbH support, see When using the RS232/RS422 serial interface, the standard baud rate of the respective optoCONTROL ODC must be used. - Page 21 - Defining limit and master values - Monitoring the connection status Depending on the sensor, a large number of additional settings such as filters, measuring programs and calculation functions can be set via the sensor’s web interface. optoCONTROL EDU190 Page 21...
-
Page 22: Software
The settings view is displayed via the Config. button, see Fig. 10. Master value settings Settings IP address Language setting Circumference calculation from diameter measurement Activating limit value measurement and setting upper High limit and lower Low limit value. optoCONTROL EDU190 Page 22... - Page 23 Press the respective button (German or English flag) to set the desired language. Circumference calculation (4) Circumference calculation is only available with the diameter measurement. Setting the checkmark activates the circumference calculation. The mastered or unmastered measurement value is then multiplied with PI and output as circumference value. optoCONTROL EDU190 Page 23...
- Page 24 Switches when the stated lower limit value is not reached. Black measurement value is highlighted in red. OK = okay NOK = not okay High limit = upper limit value Low limit = lower limit value Warn. limit = warning limit optoCONTROL EDU190 Page 24...
-
Page 25: Display Measurement Value
Display of limit value status OK, >High limit, <Low Limit, >Warn.limit, <Limit, >Limit OK = okay NOK = not okay High limit = upper limit value Low limit = lower limit value Warn. limit = warning limit optoCONTROL EDU190 Page 25... - Page 26 Please note that the meaning of the displayed icons for the measuring programs may differ significantly depending on the connected sensor. Therefore, please refer to the corresponding operating instructions of the connected sensor for the exact measurement program meaning of the connected sensor and the displayed measuring program icon. optoCONTROL EDU190 Page 26...
-
Page 27: Sensor Information
5.2.3 Sensor Information Fig. 12 View sensor information Selected measuring program Info about selected sensor type/connection type RS422 or Ethernet Trigger mode state optoCONTROL EDU190 Page 27... -
Page 28: Liability For Material Defects
Within this period, defective parts, except for wearing parts, will be repaired or replaced free of charge, if the device is returned to MICRO-EPSILON Eltrotec with shipping costs prepaid. Any damage that is caused by improper handling, the use of force or by repairs or modifications by third parties is not covered by the liabil- ity for material defects. - Page 29 Supply and interface cable RS422; 3 m long (imperative for power supply of the sensor and the digital display) 2901925 SCD2520-3 Digital output cable, 3 m long, Ethernet connection 29011209 PC190-2 Supply cable for digital display EDU190-x, 2 m long optoCONTROL EDU190 Page 29...
- Page 30 X9751398-A011108HDR MICRO-EPSILON Eltrotec GmbH Heinkelstraße 2 · 73066 Uhingen / Germany MICRO-EPSILON Eltrotec Tel. +49 (0) 7161 / 98872-300 · Fax +49 (0) 7161 / 98872-303 eltrotec@micro-epsilon.de · www.micro-epsilon.com *X9751398-A01*...
