Garrison Rugged 2.4GHz
RFID Active Tag
(Model: HKRAT-RT02)
User Manual
Update
By Hong Kong RFID Ltd.
New Product Development Team
Tel: 3426 2135
© 2006 Hong Kong RFID Ltd. All rights reserve
Hong Kong RFID Limited
Address: Unit 11, 9/F, Wah Wai Centre,38-40 Au Pui Wan Street,Fotan, Shatin, N.T., Hong Kong
Tel: (852) 3426 9136 Fax: (852) 3426 9519 Email: info@hk-rfid.com
1
Advertisement
Table of Contents
Related Manuals for Hong Kong RFID Garrison HKRAT-RT02
Summary of Contents for Hong Kong RFID Garrison HKRAT-RT02

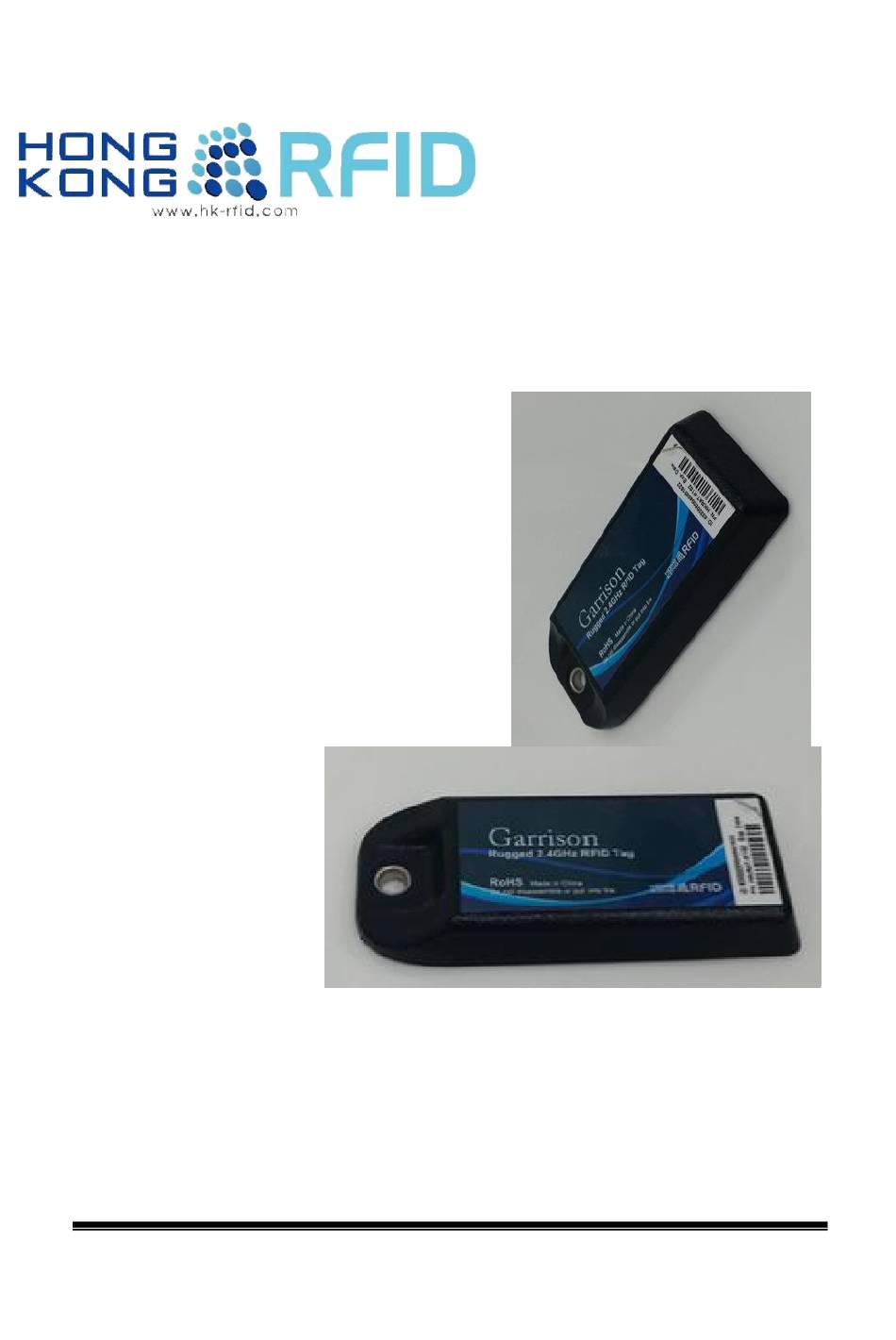

- Page 1 By Hong Kong RFID Ltd. New Product Development Team Tel: 3426 2135 © 2006 Hong Kong RFID Ltd. All rights reserve Hong Kong RFID Limited Address: Unit 11, 9/F, Wah Wai Centre,38-40 Au Pui Wan Street,Fotan, Shatin, N.T., Hong Kong...
-
Page 2: Disclaimer
Hong Kong RFID. P a g e Copyright© Hong Kong RFID Ltd., All rights reserved. Reproduction of any part is strictly prohibited. -
Page 3: Fcc Compliance
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. P a g e Copyright© Hong Kong RFID Ltd., All rights reserved. Reproduction of any part is strictly prohibited. -
Page 4: Ce Compliance
All electrical and electronic products including batteries should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. P a g e Copyright© Hong Kong RFID Ltd., All rights reserved. Reproduction of any part is strictly prohibited. -
Page 5: Table Of Contents
Part or the whole of the case body turns yellow ................. 17 Can’t purchase the proper battery ....................17 Contact plate of the battery is deformed or floated up .............. 17 Sticker fall off ..........................17 Hong Kong RFID Limited... - Page 6 Problems about reading range ...................... 17 Specification ............................18 Technological Specification ......................18 Power Supply Specification ......................18 Environmental & Hardware Specification ..................... 18 Product Dimension ..........................19 Maintenance ............................20 Contact Information ..........................21 DISCLAIMER ............................. 21 Hong Kong RFID Limited...
-
Page 7: Introduction
RT02’s mounting design allows users to fix it on various items easily. It is user-friendly and convenient to install. Feature Waterproof, Dust proof, Shock proof, IP65 Replaceable Battery Convenient Mounting Design Stable Performance Durable with special plastic Hong Kong RFID Limited... -
Page 8: Applications
RT02 is waterproof, dust proof and shock proof. It makes RT02 can work in a heavy dusty and harsh environment such as construction site. Application cases are endless. Please send E-mail to if you are interested. sales@hk-rfid.com Hong Kong RFID Limited... -
Page 9: Battery Installation And Power On
Battery Installation and Power On Loosen the two screws Remove the battery cover. Hong Kong RFID Limited... - Page 10 Insert the CR2450 battery from the side with its positive pole upward and negative pole downward. (Please do not use other battery model) Lay the battery cover flat on the compartment that has installed battery and put the two screws into the holes. Hong Kong RFID Limited...
- Page 11 OK vii. Finish installation, RT02 start work Because RT02 has factory default setting when delivery, customers simply install the battery according to above steps and the tag will start communication with readers. Hong Kong RFID Limited...
-
Page 12: Method To Read Tag Id
Method to Read Tag ID Hong Kong RFID Limited provide two device for reading active Tag which include RR02. One of them can be used for using RR02 Tag ID. 1. Use Empress EM02 Handheld 2. Use PC with Empress... -
Page 13: Empresstm Em02 Handheld
EmpressTM EM02 Handheld (Please reference to Empress EM02 Handheld User Manual for Detail) 1. Open the apps on the Handheld 2. Click “Read TagID” to discover surrounding all active Tag with include RR02 Hong Kong RFID Limited... -
Page 14: Pc With Empress Tm Em02 Reader
EM02 Reader (Please reference to Empress EM02 User Manual for Detail) 1. Connect Empress EM02 to PC (Comport/Ethernet) 2. Open the software on PC to discover surrounding all active Tag with include RR02 Click “Start read” Hong Kong RFID Limited... -
Page 15: Problem Shooting
Replace battery (Refer to Low battery Battery Installation) Check the reader installation Reader installed wrongly (Refer to EMWF reader User Manual) Case Damaged Possible Cause Solutions Improper storage or hit by hard objects Please contact your supplier for replacement Hong Kong RFID Limited... -
Page 16: Contact Plate Of The Battery Rusted
Guarantee Period Contact plate of the battery rusted Possible Cause Solutions Improper storage or affected by moisture Please contact your supplier to purchase a new tag. Put it in dry and airy place Hong Kong RFID Limited... -
Page 17: Part Or The Whole Of The Case Body Turns Yellow
2) Use it in dry and airy open space The direction of antenna of the reader Adjust the direction of the antenna Hong Kong RFID Limited... -
Page 18: Specification
Power Supply Specification Battery CR 2450 (Battery Replaceable) Battery Life for Operation About 1-3 year, depends on Tx interval Environmental & Hardware Specification Working Temperature -20°C to 60°C Case Material Plastic Case Dimension 78.8mm x 33.6mm x 9.7mm Hong Kong RFID Limited... -
Page 19: Product Dimension
Product Dimension Hong Kong RFID Limited... -
Page 20: Maintenance
, failure to provide a suitable operating environment, improper transportation and storage or other events beyond HK-RFID control and damage that is caused during shipping for warranty and maintenance services and any Device that Hong Kong RFID Limited... -
Page 21: Contact Information
Contact Information Address: Hong Kong RFID Ltd. Unit 11, 9/F, Wah Wai Centre,38-40 Au Pui Wan Street, Fotan, Shatin, N.T., Hong Kong Tel: + (852) 3426 9136 Fax: + (852) 3426 9519 Email us: General Enquiries: info@hk-rfid.com...
