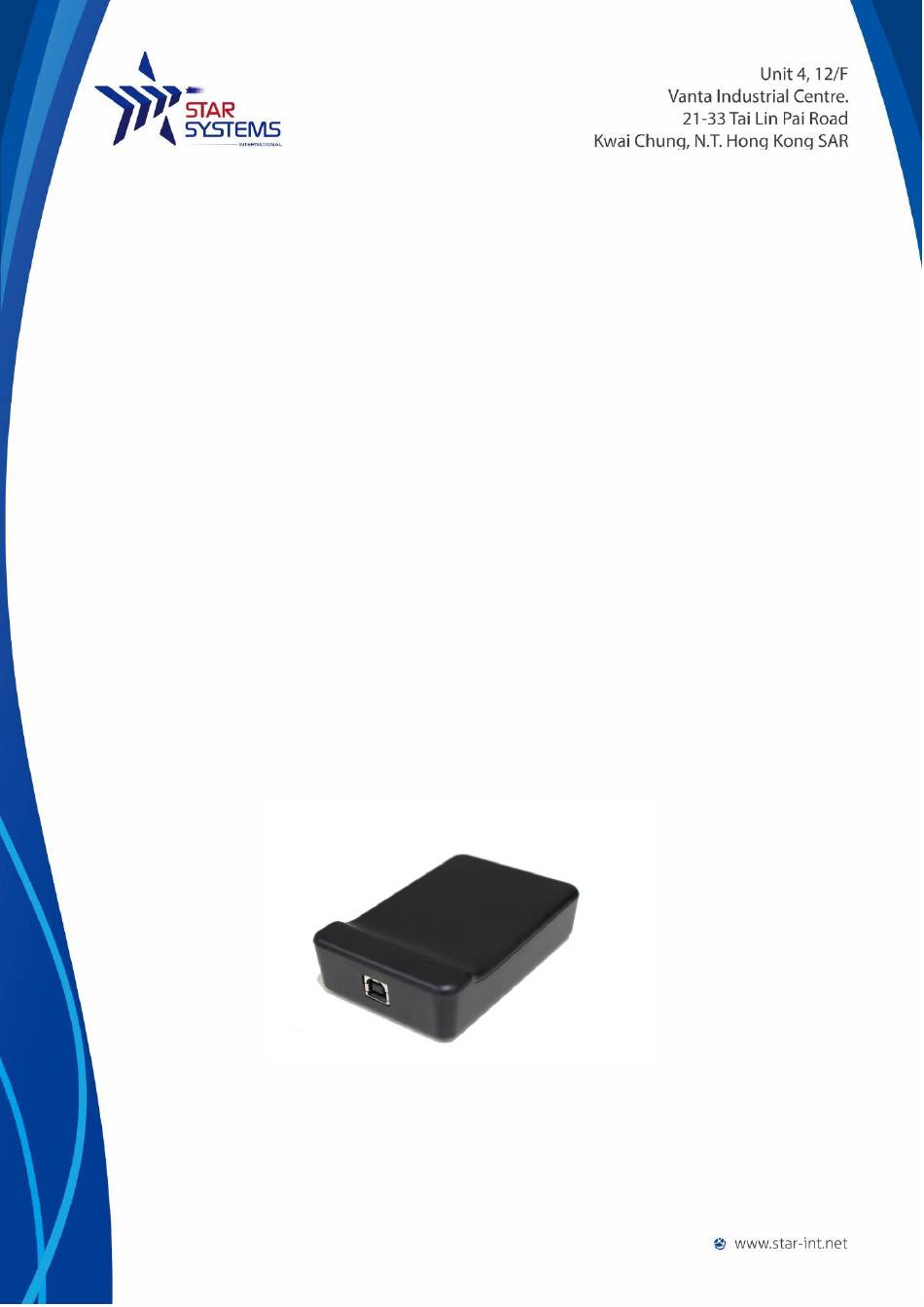

  • Page 1 Ranger USB Reader Model No: HRD1800F User Guide V1.2...
  • Page 2: Table Of Contents

    Document History Date Description Edit by Draft 2015/09/20 V1.0 2015/09/29 V1.1 Minor amendment Added Photos to package 2015/10/08 V1.2 content Table of Content Reader Overview ..........................2 Package Content ..........................3 Installing the reader .......................... 3 Mechanical installation......................3 Software installation ......................3 System requirement ........................
  • Page 3: Reader Overview

    Reader Overview The Ranger is a new compact, full-featured ISO18000-6C/EPC C1G2 reader which is perfect for use in a variety of tag reading, writing and programming applications. Ranger is powered by a standard USB connection (requires USB 2.0 or above), no additional power supply is needed.
  • Page 4: Package Content

    Package Content Ranger Reader x 1 USB Cable x 1 Installing the reader The reader is intended to work on a desktop environment. We recommend to operate the reader on a NON-Metal desktop surface. Since metal cause reflection of RF, and may cause undesirable performance of the reader.
  • Page 5: System Requirement

    System requirement 64 MB Ram 200 MB of Harddisk space Windows 2000, Windows Vista, Windows 7 and Windows 8 Driver installation The Ranger Reader use serial protocol to communicate with host PC. In order for the host PC to be able to communicate with the reader, it may be necessary to install the USB to serial driver.
  • Page 6: Troubleshooting

    Troubleshooting  If you cannot see the “CP201x USB to UTRA bridge” in device manager, ensure the USB cable connect to the reader properly and the reader LED is on.  If you see a (!) symbol at the side of the “CP201x USB to UTRA bridge” in device manager, this indicates that the PC is not able to run the driver properly.
  • Page 7 If the software failed to connect to the reader automatically, you will see a pop up error message: In case where the software failed to automatically connect the correct com port, you can manually input the com port to connect to. 1.
  • Page 8: Reading Tags In Inventory Mode

    Reading tags in Inventory Mode At the main page, click “Start Inventory” Button, information on tag being read will be displayed in the center of the screen as a list. If multiple tags are being read, multiple records will be shown. To stop the reader from reading tags, click “Stop Inventory Run”...
  • Page 9 Change EPC To change EPC click on the Change EPC option and a window will pop up. Input the new EPC and access password (if necessary). Finally click ok to confirm the change, the reader will write the new EPC to the tag.
  • Page 10: Reader Settings

    To read/write other memory banks of the click on Data Operation option. A new window will pop-up. Select different memory banks to read/write. Tag locking operation can also be performed in this window. Reader Settings To change settings of the reader, click on the setting buttons on the right to bring out the setting menu.
  • Page 11: Communication Setting

    Communication setting Serial port communication setting can be configured in this tab. Q-Value Setting Q-Value setting of the reader can be configured Frequency Power Setting This tab allow user to change the output power of the reader.
  • Page 12: Reader Specification

    Reader Specification Power: 5V , no battery (USB power) Working Frequency: 902-928MHz Input Voltage: DC 5V Maximum Power Output: 20mW Storage Temperature: -45°C~ +95°C Operating Temperature: -20°C~ +65°C Dimensions: 105 * 70 * 25mm Weight: 75g Regulatory Compliance: FCC Supported protocol: ISO 18000 6C, EPC C1G2 Warranty Terms The warranties for GTSYS products are set forth in the limited warranty terms accompanying such products.
  • Page 13: Disclaimer And Limitation Of Liability

    Disclaimer and Limitation of Liability Under no circumstance that Star System International Limited shall be responsible for the damage caused by misuse of the product or usage of the product in applications that it is not designed for. This product is not designed, intended, authorized or warranted to be suitable for life support applications or any other life critical applications which could involve potential risk of death, personal injury, property damage, or environmental damage.
  • Page 14 (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Star Systems International Ltd. Unit 04, 12/F Vanta Industrial Centre 21-33 Tai Lin Pai Road, Kwai Chung...
