  • Page 1 Instruction Manual Stand Alone Multipoint System BE6043-16...

  • Page 2: Table Of Contents

    Viewing Measurement Data ..................21 Viewing Alarm log Data ..................22 Display the Homepage of the gas monitor ..............23 10.0 Use BZ7007 to Upload data to a PC................24 _____________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 2 of 25...
  • Page 3 Instruction Manual ________________________________________________________________________ Copyright © 2018 LumaSense Technologies A/S All rights reserved. No part of this publication may be reproduced or distributed in any form or by any means without prior consent in writing from LumaSense Technologies A/S, Denmark _____________________________________________________________________________...

  • Page 4: Introduction

    1.0 Introduction The Stand Alone Multipoint System is a system comprising a Gas Monitor (Innova Type 1314i, 1412i, 3434i or 1512) and a Multipoint Sampler Innova Type 1409. In some situations, it may be an advantage to have the system to perform measurements without having the instrument online connected and controlled from a PC.

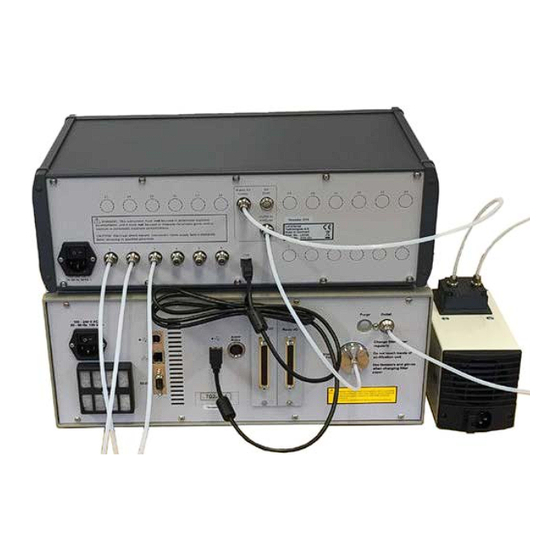

  • Page 5 Figure 1. Tube and Cable connection with connection to an external pump. _____________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 5 of 25...

  • Page 6: Set-Up From The Gas Monitor Front Panel

    The Multipoint Sampler branch becomes available in the Gas Monitor’s set-up menu when a Type 1409 is connected to the Gas Monitor via the USB Host interface. _____________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 6 of 25...
  • Page 7 Stand Alone system with a Type 1409 the print functionality as described in the Gas Monitor User manual Chapter 10 is disabled. Data logging is still available. _____________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 7 of 25...
  • Page 8 The Analog/Relay branch is only available when an Analog/Relay Module is installed in a Type 1314i (UA1373) or in a Type 1512(UA1374). The Multipoint Sampler branch is only available if a Type 1409 is attached to a Gas Monitor (Type 1412i, 3434i, 1314i or 1512) _________________________________________________________________________________________________________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 8 of 25...
  • Page 9 Instruction Manual _________________________________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 9 of 25...

  • Page 10: Set-Up The Gas Monitor

    ◄ & ► enable you to move across number fields or go to the Previous & Next gases, respectively. ↵ , depending on the situations, acts as an “Enter” or “Go To Head” key. _____________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 10 of 25...

  • Page 11: Set-Up Concentration Units

    Auto: the tube length is to be define Fixed time: the chamber- and tube-flush times are to be defined. The minimum and maximum values for the tube flush settings are: _____________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 11 of 25...

  • Page 12: Set-Up Alarm Limits

    If you do not wish to activate the alarm function for a particular gas, select the DEFAULT. This will “blank out” the alarm level value for the gas and deactivate the alarm for that gas. _____________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 12 of 25...
  • Page 13 & 2 and make electrical connection between pins 1 and 3. Fig.5 Alarm Relay 2: Alarm Relay 2: correspond to High Alarm Limit 2. Pin 4 and 6 are normally closed _____________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 13 of 25...
  • Page 14 4 - 6 Power off initializing Ready for use Calibration Measurement running Alarm limit 1 exceeded Alarm limit 2 exceeded 1 = closed and 0 = open _____________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 14 of 25...

  • Page 15: Setting Up The Analog/Relay Interface Module

    The set-up of the Analog/Relay interface Module can be performed either from the Front Panel of the Gas Monitor or by using the BZ7007 Remote and Offline SW. Please consult the BZ7007 User _____________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 15 of 25...

  • Page 16: Analog Output Connector

    Analog GND Filter B Analog GND Filter C Analog GND Filter D Analog GND Filter E Analog GND Filter W Channel information Analog GND Barometric Pressure Analog GND _____________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 16 of 25...

  • Page 17: Relay Output Connector Gas Mode

    Filter W limit 1 R11 NO R11 NC R12 COMMON Filter W limit 2 R12 NO R12 NC VO: Voltage output. CO: Current output. NO: Normally opened. NC: Normally closed. _____________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 17 of 25...

  • Page 18: Relay Output Connector Channel Mode

    Before any monitoring task is started, all data stored in the Monitor’s Display Memory is removed (cleared). The Display Memory is where the Monitor stores the results of all measurements while it is _____________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 18 of 25...
  • Page 19 To start the measurement immediately, press S1. To delay the start, press S2. The following warning then appears on the display: WARNING : DISPLAY MEMORY WILL BE DELETED PROCEED STOP _____________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 19 of 25...
  • Page 20 Immediate Start If you selected an immediate start, the following text appears on the screen: MEASUREMENT IN PROGRESS RESULTS NOT YET AVAILABLE _____________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 20 of 25...

  • Page 21: Viewing Data Using The Gas Monitor

    The push-buttons  and  have a repetitive function, which means that if they are pressed continuously they will allow the user to scroll very quickly through a list. _____________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 21 of 25...

  • Page 22: Viewing Alarm Log Data

    The alarm log list is a closed loop. 6) Press  or ↵ to return to the main screen. _____________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 22 of 25...

  • Page 23: Display The Homepage Of The Gas Monitor

    Error and warning messages will also be displayed on the homepage. The grey "Update Measurements" link can be used to update the homepage with the last measurement results. Figure 7. The gas monitor homepage _____________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 23 of 25...

  • Page 24: Use Bz7007 To Upload Data To A Pc

    Stand Alone system with a Type 1409 the print functionality as described in the Gas Monitor User manual Chapter 10 is disabled. Data logging is still available. _____________________________________________________________________________ BE6043-16 Stand Alone Multipoint System LumaSense Technologies A/S Page 24 of 25...
  • Page 25 Stand Alone Multipoint System LumaSense Technologies A/S Tel.:(+45) 44 20 01 00 Energivej 30 Fax: (+45) 44 20 01 01 DK-2750 Ballerup, Denmark http://www.lumasenseinc.com...
