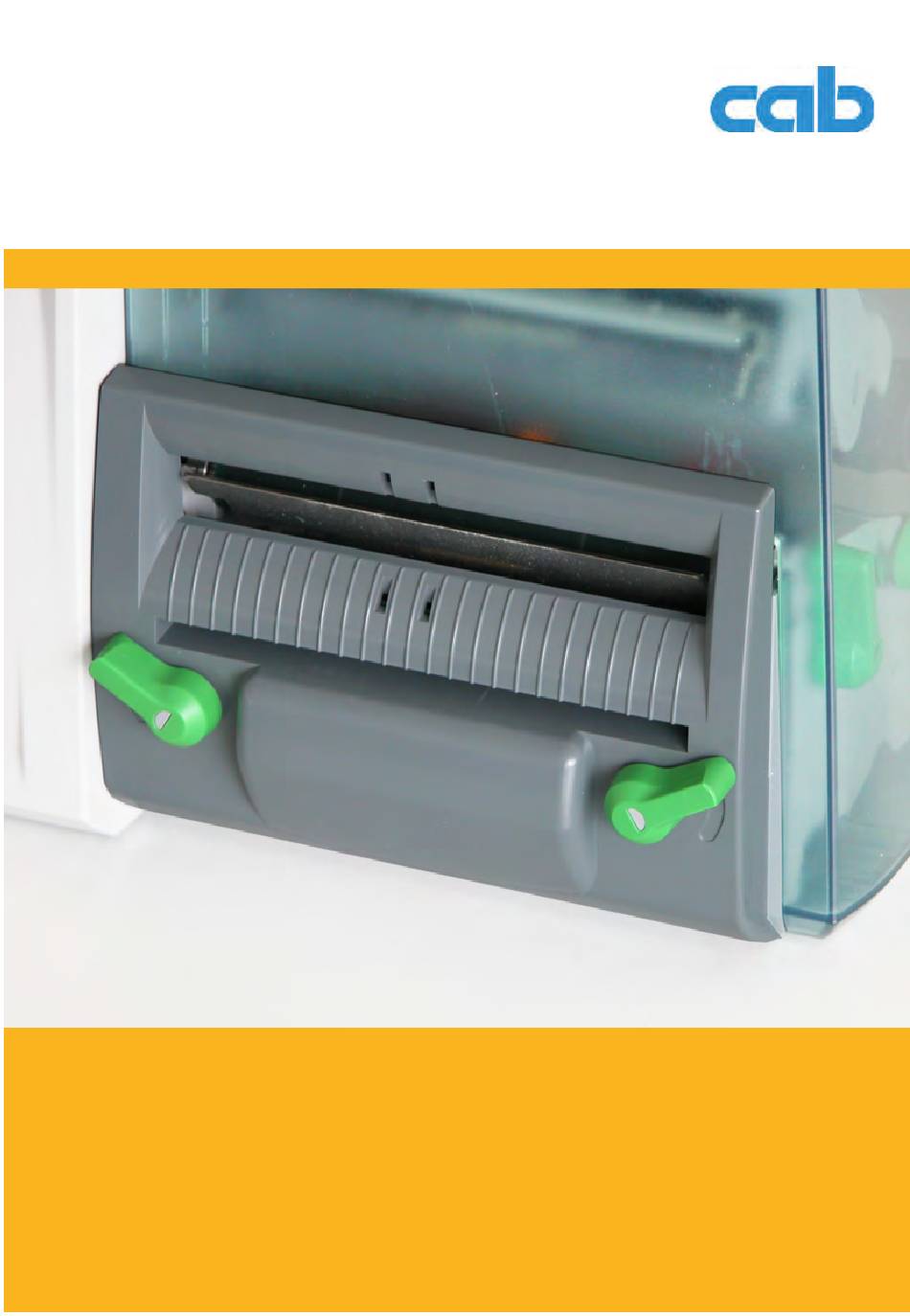

- Page 1 Operator's Manual Dispenser module EOS4 P...
- Page 2 Operator's Manual Edition: 06/2013 - Part No. 9009544 Copyright This documentation as well as translation hereof are property of cab Produkttechnik GmbH & Co. KG. The replication, conversion, duplication or divulgement of the whole manual or parts of it for other intentions than its original intended purpose demand the previous written authorization by cab.
-
Page 3: Table Of Contents
Table of Contents Introduction ..................4 Instructions ..................4 Intended Use ...................4 Safety Instructions ................5 Environment ..................5 Technical Data .................6 Mounting ..................7 Media Loading ................8 Operation ..................9 Synchronizing the Paper Feed ............9 Operation in Peel-off Mode ............10 Maintenance ................. 11 EC Conformity Declaration ............12... -
Page 4: Introduction
Introduction 1.1 Instructions Important information and instructions in this documentation are designated as follows: Danger! Draws your attention to an exceptionally grave, impending danger to your health or life. Warning! Indicates a hazardous situation that could lead to injuries or material damage. -
Page 5: Safety Instructions
Introduction • The device is manufactured in accordance with the current technological status and the recognized safety rules. However, danger to the life and limb of the user or third parties and/or damage to the device and other tangible assets can arise during use. •... -
Page 6: Technical Data
Introduction 1.5 Technical Data for printer type EOS4 Liner width up to 120 mm Label width single-lane 10 - 116 multi-lane 5 - 116 Label height 20 - 200 Power supply peripheral connector of the printer Attention! Limitations may apply to small labels, thin materials or strong adhesives. -
Page 7: Mounting
Mounting Attention! Disconnect the printer from the electrical outlet before mounting or removing the dispenser module. Mounting the peel-off plate 1. Fold down the cover with the tear-off plate (3). 2. Press the bars (1) out of the holders (2) an remove the cover. 3. -
Page 8: Media Loading
Mounting Mounting the Dispenser module 1. Press the bars (1) of the dispensing unit into the holders (2). 2. Fold up the dispensing unit until it locks at the peel-off plate. Media Loading 1. Load ribbon and media as described in printers manual. Use the tear-off mode information for loading media. -
Page 9: Operation
Operation Attention! Risk of media jam ! Ensure that the liner (2) can run off without hindrance. 4.1 Synchronizing the Paper Feed After the label stock has been inserted, for peel-off mode a synchronization of the paper feed is required. That way the first label, which is detected by the label sensor, will be transported to the print position and all labels in front (1) will be fed out of the printer. -
Page 10: Operation In Peel-Off Mode
Operation 4.2 Operation in Peel-off Mode 4.2.1 Standard Operation Under Setup - > Print param. - > Print on demand select the setting Off. ( Configuration manual). Active the peel-off mode in the software. With direct programming it is controlled with the "P command"... -
Page 11: Maintenance
Maintenance Cleaning the Drawing Roller Accumulations of dirt on the drawing roller may impair the peel-off quality. Attention! Damage of the drawing roller. Do not use sharp objects (knives, screwdrivers, etc.) to clean the drawing roller. 1. Push both levers (3) downwards and fold down the dispenser module. 2. -
Page 12: Ec Conformity Declaration
This declaration is valid only when the dispenser module is used together with EOS4 printers. Manufacturer: cab Karlsruhe. Description: Dispenser module...
