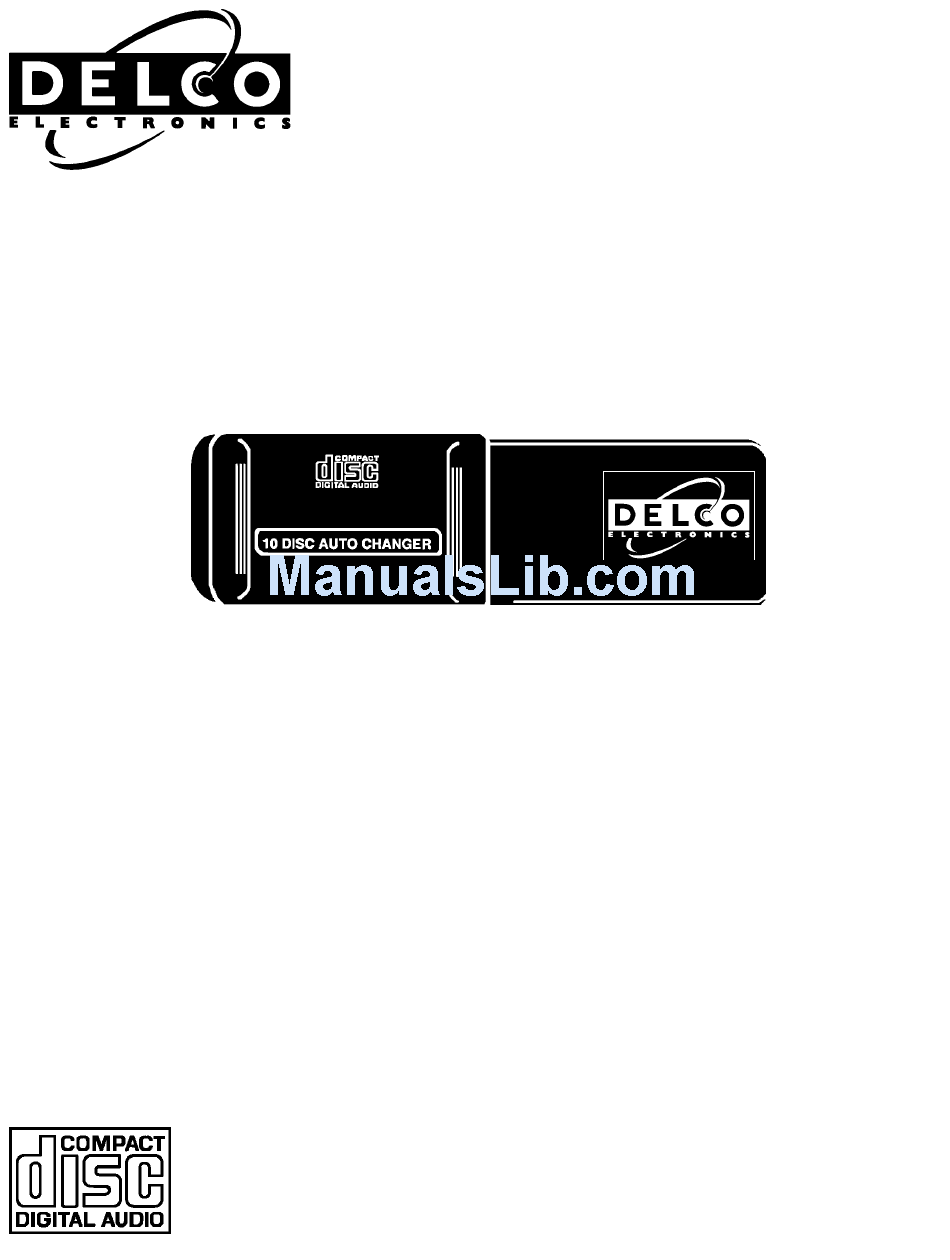

INSTALLATION MANUAL
HOLD FOR DELCO APPROVAL - NEW LOGO
Form No. 128-4487A
Rev. A - Replaced old Delco
Logo with New. 2-1-95.

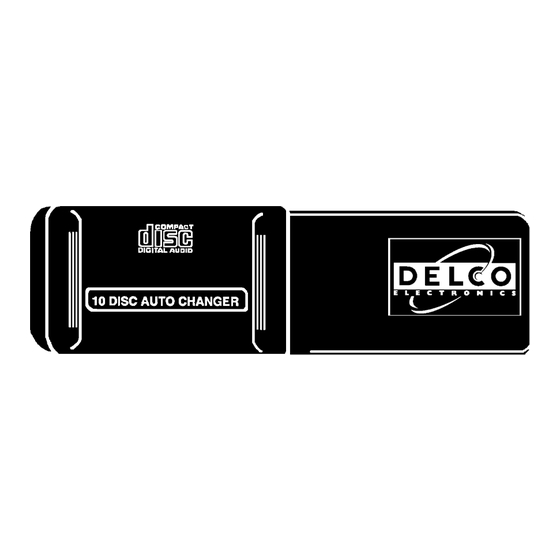

COMPACT DISC CHANGER SYSTEM
with COMMANDER & FM-MODULATOR
# 12344632

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD Changer System none and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Delco CD Changer System none

  • Page 1 INSTALLATION MANUAL HOLD FOR DELCO APPROVAL - NEW LOGO Form No. 128-4487A Rev. A - Replaced old Delco Logo with New. 2-1-95. COMPACT DISC CHANGER SYSTEM with COMMANDER & FM-MODULATOR # 12344632...
  • Page 2: Packing List

    PACKING LIST MAIN UNIT Changer INSTALLATION PARTS Bracket (L) Tapping screw (M5 x 12) OTHER ACCESSORIES CD Magazine Commander Bracket (R) Tapping screw Din 8 pin cable (M3 x 12) 5 m x 1 Index seal sheet FM Modulator Hexagonal bolt with washer (M5 x 8) Seal...
  • Page 3: Before Installing The Unit

    BEFORE INSTALLING THE UNIT Transport Lock Screws The mechanism in the CD changer is "locked" into place during shipment by the transport screws. Be sure to remove the screws prior to installation. Caution After removing the transport lock screws, place the supplied seals over the screw holes.
  • Page 4: Installation

    INSTALLATION (1) The unit can be installed vertically or horizontally. The position of the built-in anti-vibration springs (left and right side), must correspond to the mounting position chosen. If the springs are not set correctly for the type of installation chosen, the anti-vibration compensation will not be effective.
  • Page 5 INSTALLATION (2) Procedure for Vertical Installation Note If the anti-vibration spring position has been changed and verified for vertical mounting (as shown on page 3), start with step 2. It is necessary to change the spring attachment position. 1) Remove the lock screws on the side of the set using a Phillips screwdriver.
  • Page 6 WIRING RF output (89.1MHz or 88.7MHz) Antenna socket To +12V ACC, Speaker FM Radio DIN cable (8pin) INTERFERENCE ON 89.1 MHz If a clear signal cannot be obtained on 89.1 MHz, change the position of the frequency select switch on the back of the FM Modulator and tune the radio to 88.7 MHz when using the CD changer.
  • Page 7 INSERT VEHICLE WIRING DIAGRAM DWG. NO. 128-4487S...
  • Page 8 Features: Shuffle Play Disc Select Track Search Track/Disc Repeat Track/Disc Scan Wired Remote Warranty Delco Electronics 10 Disc Changer Part #12344632 Also requires applicable antenna adapters listed: All Geo's through 1995, Pre-1988 GM, most Domestic and Foreign Vehicles: -No adapters required. 1988 - 1993 Vehicles with 12 Pin Radios: -No adapters required.
