Summary of Contents for Star TVD30

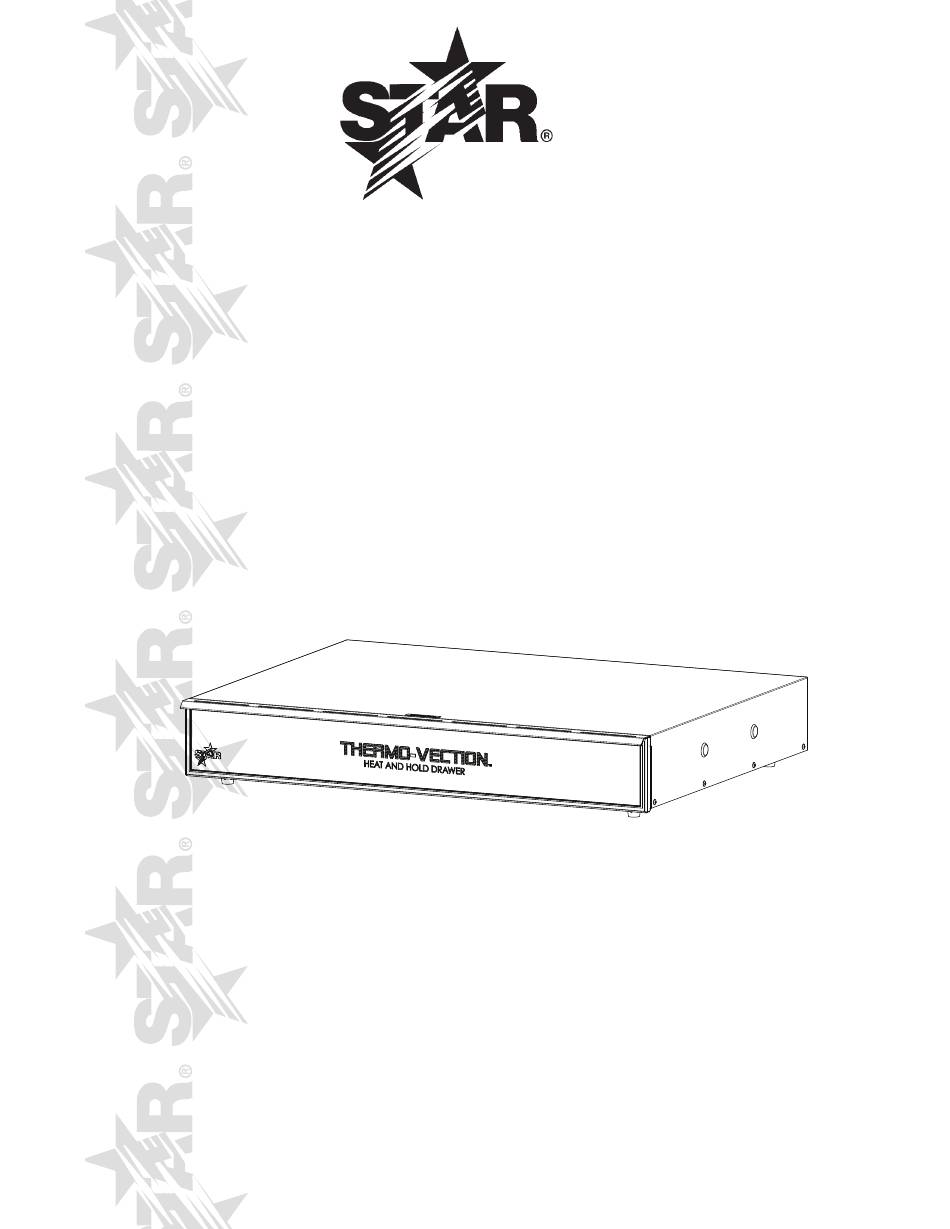

- Page 1 THERMAL VECTION Heat and Hold Drawer MODEL TVD30, TVD50 Installation and Operation Instructions 2M-Z14279 Rev. A 7/16/13 IL2263...
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: Specifications
SPECIFICATIONS Width Depth Height IL2186 Electrical Specifications Model Voltage Watts Amps Cord TD30 5.8A 120V NEMA 5-15P TD50 1370 11.4A Dimensions Width Depth Height TD30 24" 29.75" 6.25" TD50 36" This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the CAUTION general public in food service locations. -
Page 4: Operation
OPERATION START-UP When the unit is first turned on it will begin the PRE-HEAT mode. The current hold temperature will be displayed for 3 seconds, then “PHT” (PREHEAT) will flash along with the “HEAT ON” lamp until the unit has reached its preset hold temperature. When this has been reached, the audible alarm will beep 3 times, the “HEAT ON”... - Page 5 TIME / TEMP HEAT TEMP RESET HOLD COOK IL2139 PROGRAMMING THE COOK TEMPERATURE MODE The cook temperature and time can be programmed with the following steps. The unit comes from the factory set at 325°F (163°C) for 30 minutes. 1. Simultaneously press and hold the “TEMP” and “COOK” buttons for approx 3 seconds. 2.
- Page 6 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
- Page 7 WIRE #11 AND #12 FROM WIRE DIAGRAM. WHITE BLACK GREEN 5-15P-PLUG WIRE DIAGRAM, 120V STAR MANUFACTURING INTERNATIONAL INC. THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC. NO REPRODUCTION OR SK2469 Rev A 1/13/2011 DISCLOSURE OF ITS CONTENTS IS PERMITTED.
- Page 8 See Detail See Detail MODEL: TVD THERMAL VECTOR STAR MANUFACTURING INTERNATIONAL, INC. SK2514 Rev. - 5/25/11 MAIN BREAKDOWN...
-
Page 9: Parts List
TVD50-120 A4-Z14679 CORD SET-120V-15A-RING TR IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc. - Page 10 Detail Detail 17 18 MODEL: TVD THERMAL VECTOR STAR MANUFACTURING INTERNATIONAL, INC. DETAIL BREAKDOWN SK2515 Rev. - 5/25/11...
- Page 11 SCREW 6-32X1/4 THP SS TVD50-120 IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
- Page 12 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
