Summary of Contents for Quantum ROLLERSHADE HARDWARE SYSTEM

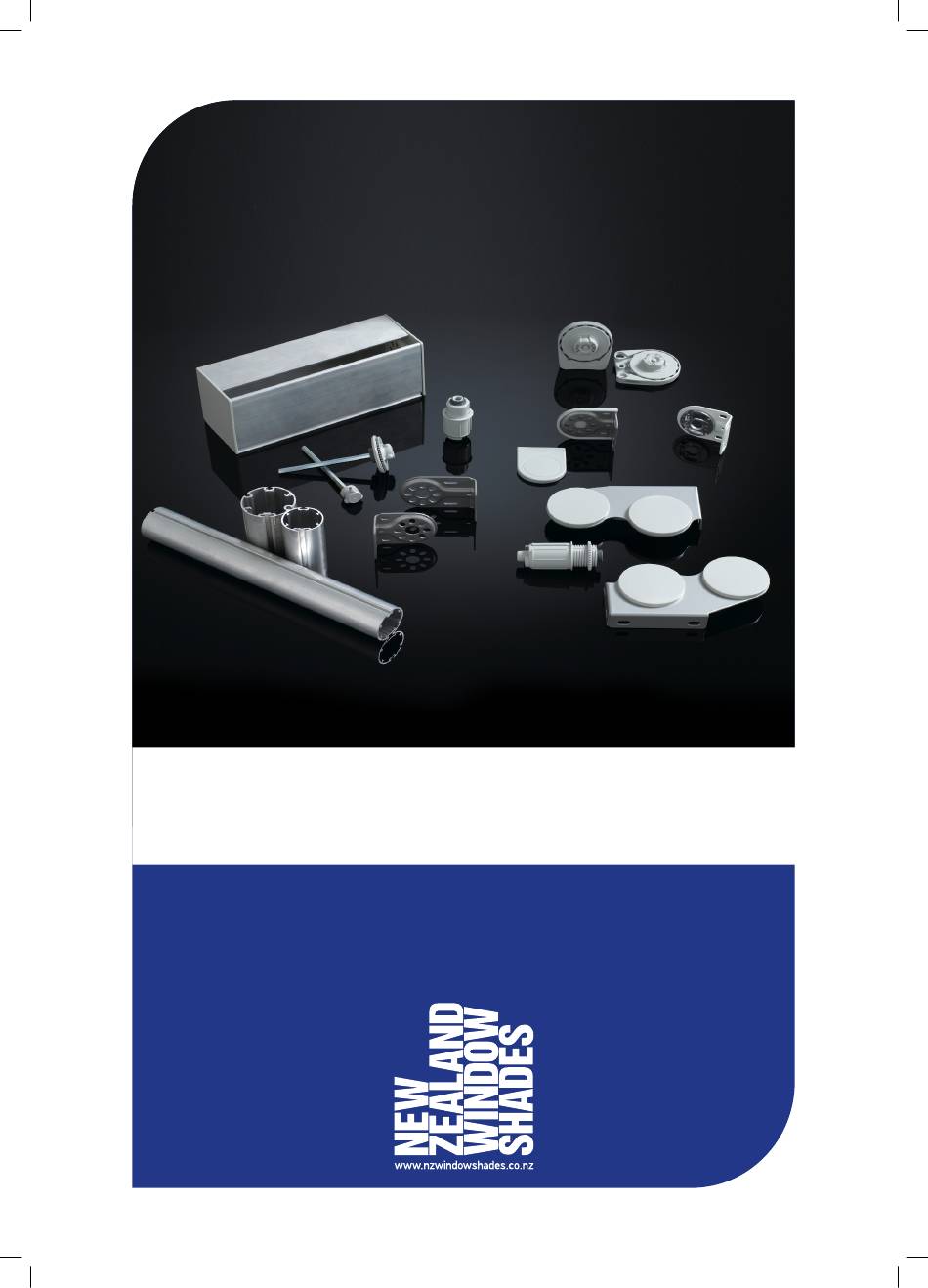

- Page 1 Q U A N T U M R O L L E R S H A D E H A R D W A R E S Y S T E M I N S T A L L A T I O N M A N U A L February 2014...
- Page 2 Q UA N T U M M E A S U R I N G D E D U C T I O N S Corners in Reveal- Front Edge Deductions CORNERS Through Blind +50mm(from corner) Note: For windows in reveal brackets must be top fixed for deductions to work.
- Page 3 Q U A N T U M I N S T A L L A T I O N INSTALLATION - STANDARD ROLLER SYSTEM 1. Fix bracket with the screws 2. Place the chain drive in the 3. Slide it down until it provided bracket (1) clicks (2).
- Page 4 Q U A N T U M I N S T A L L A T I O N INSTALLATION - STANDARD ROLLER SYSTEM WITH LEVELLER BRACKET 1. Make sure that the opening 2. To adjust skewing, put the for the Allen key is pointing provided Allen key into the downwards before installing the screw of the leveller and turn...
- Page 5 Q U A N T U M I N S T A L L A T I O N INSTALLATION - LINKED BLINDS 1. Place the tube adaptor on the 2. Fix the outer bracket with the 3. Slide the aligner or the chain drive head.
- Page 6 Q U A N T U M I N S T A L L A T I O N REMOVAL - LINKED BLINDS 1. Slide the end cap towards 2. Unfasten the locking ring. 3. Move the blind downwards you. Slide a screw driver between out of the bracket.
- Page 7 Q U A N T U M I N S T A L L A T I O N INSTALLATION - HEADBOX SYSTEM 1. Fix headbox back plate to wall 2. Slide end caps into the 3. Clip headbox front plate inside by drilling through extrusion headbox back plate.
- Page 8 INSTALLATION MANUAL INFORMATION This Installation Manual is only a guide to the measurement and installation procedures for the Quantum Hardware System. New Zealand Window Shades Limited does not warrant the accuracy contained in this manual. The information contained in this Installation Manual is based on the measurement and...
