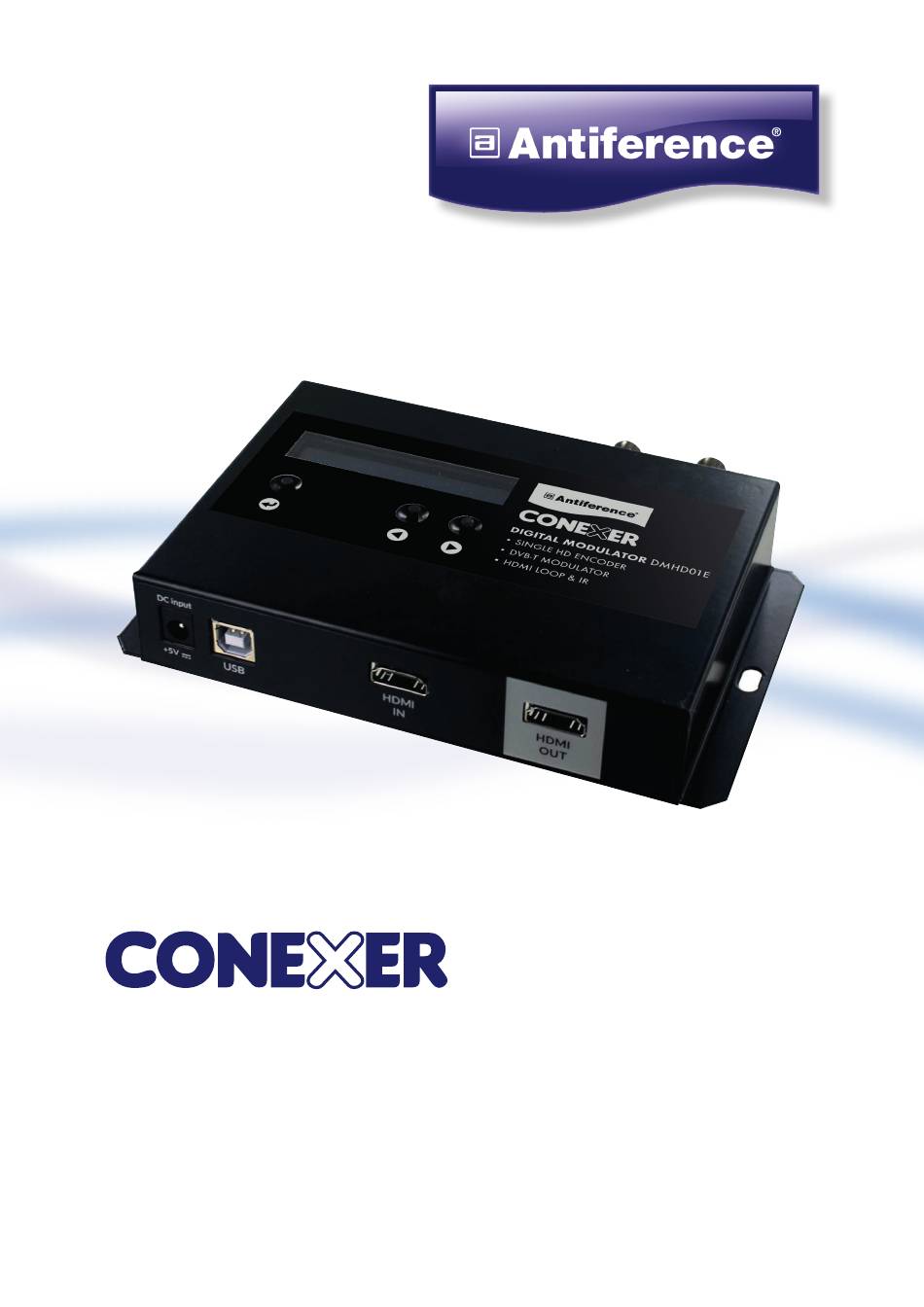

- Page 1 DIGITAL MODULATOR DMHD01E HD ENCODER DVB-T MODULATOR HDMI LOOP USER MANUAL...
-
Page 2: Table Of Contents
DVB-T signal. Standalone configuration is made easy through three tactile switches and ergonomic menus To make the configurations of the DMHD01E is very simple as special DMHDiFace software is available for you to download off our website: www.antiference.co.uk... -
Page 3: Installation
Do not install the module on unstable items, a fall can cause physical or material damage. 2 - Installation Please find a typical connection and installation layout for the DMHD01E. IR Control The IR function enables the user to control the source device from a remote location over the coax cable network. -
Page 4: Description Of The Different Elements
DMHD01E 3 - Description of the different elements HDMI input IR eye 5V/2A Power supply connection USB for PC connection HDMI output RF Output RF Input Digital Display DMHDO1E Cancel/Return/ Enter button Backward/Up button Forward/Down button... -
Page 5: Setting Up The Dmhd01E
DMHD01E 4. Setting up the DMHD01E The DMHD01E has a quick menu to allow for quick basic settings. For more detailled settings an advance menu is also available 4.1 - The Quick menu To enter the quick menu please press the following sequence of buttons:... -
Page 6: Advanced Menu
DMHD01E 4.2 - The Advanced menu To enter the advanced menu please press the following sequence of button: When entered successfully, the advanced menu becomes available, use the buttons to move between the different menu options. Press and hold the to select that option and use to change the value to that option. -
Page 7: Programming Using A Pc
Leave the menu EXIT (YES) 5 - Programming using a PC The settings of the DMHD01E can also be changed using a PC. First, please install the software DMHDiFace on your PC. You can download this software from our internet site... -
Page 8: Technical Specifications
0.9kg 7 - Declaration of Conformity: We, ANTIFERENCE LIMITED herewith declare that the modulator CONEXER DMHD01E complies with all essential requirements and any other applicable conditions set forth on directive 2014/30/EU. According to the WEEE (Waste Electrical and Electronic Equipment) EU Directive, do not dispose of this product as household waste or commercial waste.
