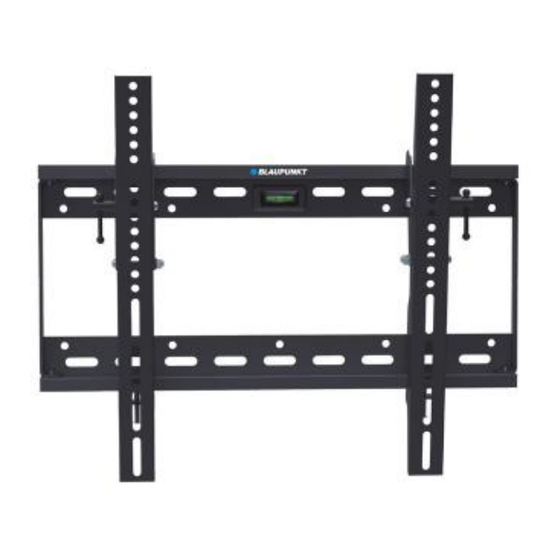

- Page 1 Model Number 330319 Owner's Manual Universal TV wall mount 22” - 40”...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to install this product. This will assure you years of trouble free performance. IMPORTANT NOTES This safety and operating instruction should be retained for future reference.
- Page 3 IDENTIFYING THE PARTS In the box Please check the parts in the package with the following list. Make sure all parts are in the package. Never use defective parts. Never replace a part with di erent speci cations. Note: Incorrect installation may cause injury – if in doubt please consult a quali ed professional.
- Page 4 INSTALLATION Installing a Blaupunkt TV Wall Mount is as easy as putting up a shelf. Easy to follow installation instructions are included with each product. As easy as 1-2-3 Most Blaupunkt TV brackets come pre-assembled so installation is simple. 1 - Attaching the TV brackets to the TV (Always start with the TV.
- Page 5 Stud wall installation STEP-1 Step1: Interior Wall Stud Drill mounting holes for wall plate using an electronic stud finder, identify and mark the locations of 2 interior wall studs. Using the wall plate as a template,mark and then drill 4 holes with 3/16” diameter drill bit. Hard Wood Wall Note: We do not recommend installation in hollow core concrete blocks,only solid blocks...
- Page 6 WARNING Correct installation is extremely essential, and falls outside the scope of responsibility of Blaupunkt. The fastening material provided is exclusively intended for installation on walls made of solid wood, bricks, concrete or solid-wood columns with a maximum of 3 mm wall nishing.
-
Page 7: Specifications
SPECIFICATIONS Maximum Load : 75kg Size of at panel TV: 22”-40” Weight of mount : 2.45kg Distance from Wall: 50mm Pitching angle: 0°~-10° GUARANTEE This product is guaranteed for twelve months from the date of original purchase. If any defect should occur due to faulty materials or workmanship, please return it to the store it was purchased from.
