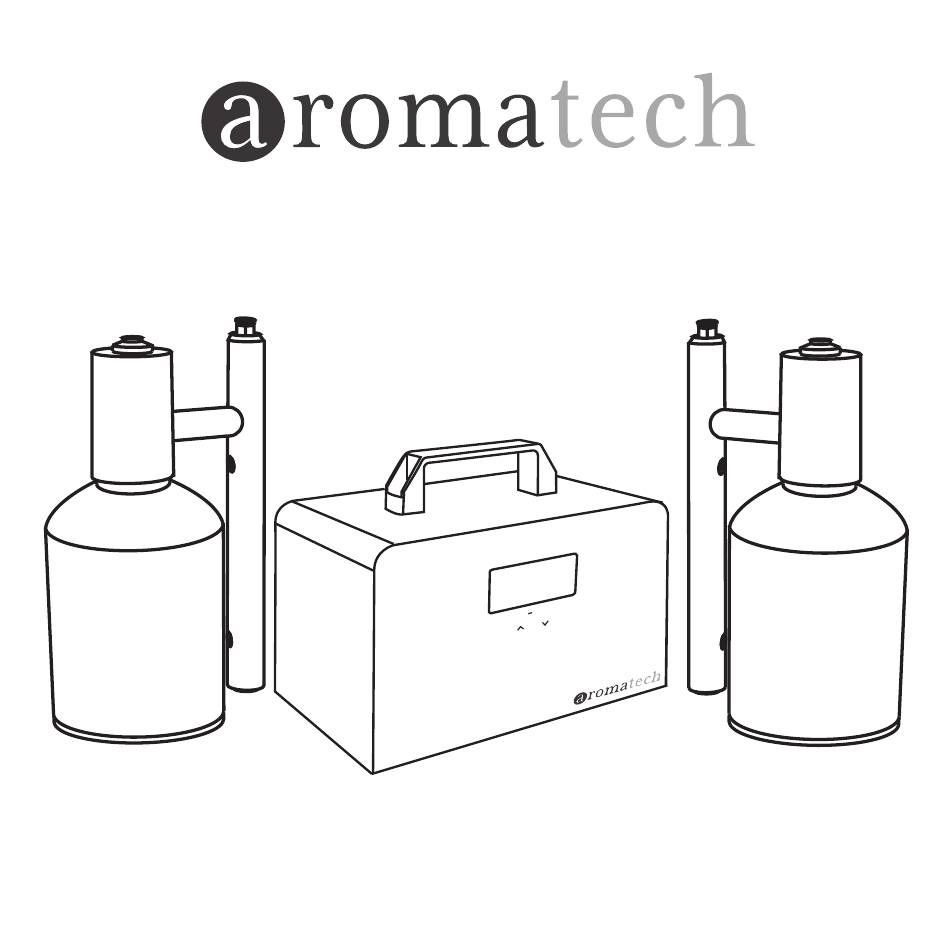

  • Page 1 Think Scent E N T S E T Air Stream Duo Manual Essential Oil Nebulizing Diffuser...
  • Page 2 Please comply with the following for safety reasons. Do not modify or disassemble the scent machine without first consulting AromaTech. In case of product failure please contact us. Do not use the power cord if it is damaged, kinked or cut. It's a fire hazard.

  • Page 3: Table Of Contents

    CONTENTS DISCOVER THE POWER OF SCENTING! ............3 FEATURES ......................3 TECHNOLOGY .......................4 SPECIFICATIONS ....................5 DIAGRAM OF PARTS ....................6 ACCESSORIES ......................6 WHERE TO PLACE THE DIFFUSER ..............7 INSTALLATION INSTRUCTIONS ................8 HVAC INSTALLATION ..................10 TIMER SETTINGS....................15 INTENSITY AND CONSUMPTION..............18 AROMA OIL CONSUMPTION................19 MAINTENANCE....................20 TROUBLESHOOTING..................21 CAUTIONS......................22...

  • Page 4: Discover The Power Of Scenting

    The Air Stream Duo will change what you think about scent and enable a multitude of ways to use scenting in your home or business. Simply add your favorite AromaTech scents and transform your space to whatever you want it to be.

  • Page 5: Technology

    TECHNOLOGY The Air Stream Duo uses nebulization (cold-air diffusion) to diffuse our aroma oil blends. This is a process that breaks down the oils into a very fine, dry mist. Nebulization preserves the intention and integrity behind our oils while maximizing their olfactive and therapeutic powers, without diluting in water, solvent, or using heat.

  • Page 6: Specifications

    SPECIFICATIONS [ Model Air Stream Duo [ Dimensions 305 x 150 x 150 mm / 12"w x 6"h x 6"d [ Machine N.W. 10lbs without oil [ Voltage Input: AC100V-240V 50/60Hz Output: DC12V 2A Cable length: 100cm / 3.3ft [ Technology...

  • Page 7: Diagram Of Parts

    DIAGRAM OF PARTS Front Panel of Air Pump Back Panel of Air Pump Handle Air Intake LCD monitor Controls Air outlet Air pump switch DC connector Diffuser Mounting bracket ACCESSORIES Power 2 Oil 2 Air Tubes Manual 2 HVAC Screws 2 Handles 2 Mounting PTFE tape Silencer adaptor drums...

  • Page 8: Where To Place The Diffuser

    floor, gyms, conference rooms, homes and much more. Scenting Coverage: Air Stream Duo can be adjusted to scent an area ranging from 1000 sq.ft. to 15,000 sq.ft. (100 to 1500 sq.m) Scent Intensity: Adjust your scenting experience and hours of operation through the internal touch LCD timer.

  • Page 9: Installation Instructions

    Air Stream Duo directly connects to your HVAC/AC system, please follow the below instructions. Parts and Tools Required You will require the following tools to wall mount or connect the Air Stream Duo to your HVAC. 1. A level to ensure the wall mount bracket is exactly vertical.
  • Page 10 Wall Mount Installation: HVAC connection Air outlet hole 1. Use the screws to fasten the bracket to the wall. 2. Wrap the neck of the bottle with PTFE tape to seal it and screw the bottle to the diffuser. 3. Connect the air tube to the pump's air outlet. 4.

  • Page 11: Hvac Installation

    HVAC INSTALLATION HVAC Pre-installation Checklist Please complete this checklist before installing the scent diffuser 1. Plan the area to be scented. 2. Locate the Air Handling Unit or duct that serves the area to be scented. 3. Make sure the Air Handling Unit does not use an open gas flame. 4.
  • Page 12 Open gas flames should absolutely be avoided. If installation must be over gas heated coils or open gas flames, contact AromaTech Technical Support. The best location for the Scent Machine is below the Scent Point. The air tube should run upward as short a distance as possible, and NEVER MORE THAN 3 FEET.
  • Page 13 7. Take a second HVAC adaptor and screw it into the Air Stream Duo. 8. Either wall mount the Air Stream Duo to the duct, the wall or place on a shelf directly under the Scent Point connection. It’s important to keep the Air Stream Duo as close as possible to the scent point.
  • Page 14 MAX. 3 FEET. Do not leave any slack. Coiling or excess air tube will create air pockets and buildup of scent inside the tube. 10. Connect the AirStream Duo to the 110V-240V plug and set the timer. Air Stream Duo HVAC Connection Diagram (Figure A) Scented air flow Air flow...
  • Page 15 Warning: After installation, please keep the machine vertical. Tilting or placing it flat may cause an oil overflow. If the Air Stream Duo is tilted, the oil will over flow inside and may potentially damage the machine. INCORRECT CORRECT...

  • Page 16: Timer Settings

    TIMER SETTINGS local time Mon-Sun 7-day timer work icon Intensity level Power ON Connect the 12V adaptor to the outlet and turn ON the power switch. Local time and scent intensity level will appear. Screen Lock and Unlock The LCD screen will automatically lock itself after 10 seconds if not used. Press SET and hold for 5 seconds to unlock the display.
  • Page 17 Setting Hours of Operation There are 5 working periods available to set the hours of operation (Figure 2). Touch SET button to set working period 1 (ON 1 & OFF 1). Press or button to adjust the ON time hours, then press ENT to move to the next position.
  • Page 18 This is a unique and powerful performance feature of the Air Stream Duo. Once you have chosen the right setting, you should only have to adjust slightly with the different fragrances.

  • Page 19: Intensity And Consumption

    INTENSITY AND CONSUMPTION Intensity level and Time Cycle 300s 150s 120s 120s 150s 300s Using the UP or DOWN button allows you to control the intensity of the fragrance output.

  • Page 20: Aroma Oil Consumption

    AROMA OIL CONSUMPTION Air Stream Single Consumption(ml/h) Note: 1. Above data is based on using AromaTech aroma oil. 2. Using another type of oil may affect the consumption rate. Recommended Intensity Settings. The grading system starts from 1 being the lowest and ends with 20 being the highest.

  • Page 21: Maintenance

    MAINTENANCE Machine cleaning: 1. We recommend cleaning the Air Stream Duo every 8-12 months. 2. When changing oil clean out the diffuser. 3. If scent diffusion becomes weak, cleaning is recommended. Cleaning steps: 1. Empty the oil from a canister and replace with 100-200 ml of rubbing alcohol.

  • Page 22: Troubleshooting

    TROUBLESHOOTING Before submitting a warranty claim, please try the below steps to diagnose the problem and fix the issue. For warranty information, please contact AromaTech at (for home) +1.888.276.6245, (for business)+1.877.347.5239 or send us an email at help@aromatechsystems.com. Problem Solution - Check if the power is ON or OFF.

  • Page 23: Cautions

    • Do not cover the diffuser with objects or material while in use. • Keep the device at least 24” from the ceiling. • Use only AromaTech diffuser blends; other oils may contain fragrances, base oils or synthetics that could result in malfunction. Some single note essential oils are also too thick or heavy for use in the ultrasonic diffuser.
  • Page 24 Avoid getting aroma oil in contact with wood or other delicate surfaces. NOTE: Do not place the Air Stream Duo near a HVAC return grill, exhaust fan or vent, open door or a window as that will cause the scent to escape the space. Remember you want to work with the natural airflow, not against it.

  • Page 25: Faqs

    Q: Where can I place the Air Stream Duo? You must place the Air Stream Duo on a flat surface. If placing on the table top or a shelf, make sure it doesn’t tip over. Alternatively, you can wall mount the diffuser with drum when connect- ing to your HVAC/AC system.
  • Page 26 Q: How do I unlock the LCD if it is locked and I can’t control the device? The Air Stream Duo’s intuitive timer is designed to lock itself (shut off) after 10 seconds if not in use. To unlock the display simply press and hold the SET button for 5 seconds.
  • Page 27 Q: Is Air Stream Duo safe to use with children and pets? Yes. When used as directed and only with AromaTech™ essential and aroma oil blends, Air Stream Duo is the safest cold-air diffuser available. Make sure to request our SDS if you require more info about the oil being diffused.
  • Page 28 Designed by AromaTech Inc. Vancouver, BC, Canada Consumer http://aromatechscent.com Toll Free: +1.888.276.6245 Business http://aromatechsystems.com Toll Free: +1.877.347.5239 Support http://support.aromatechsystems.com help@aromatechsystems.com...
