• Suitable age for 3+ Years
• Maximum user weight: 30kg
• Adult assembly required

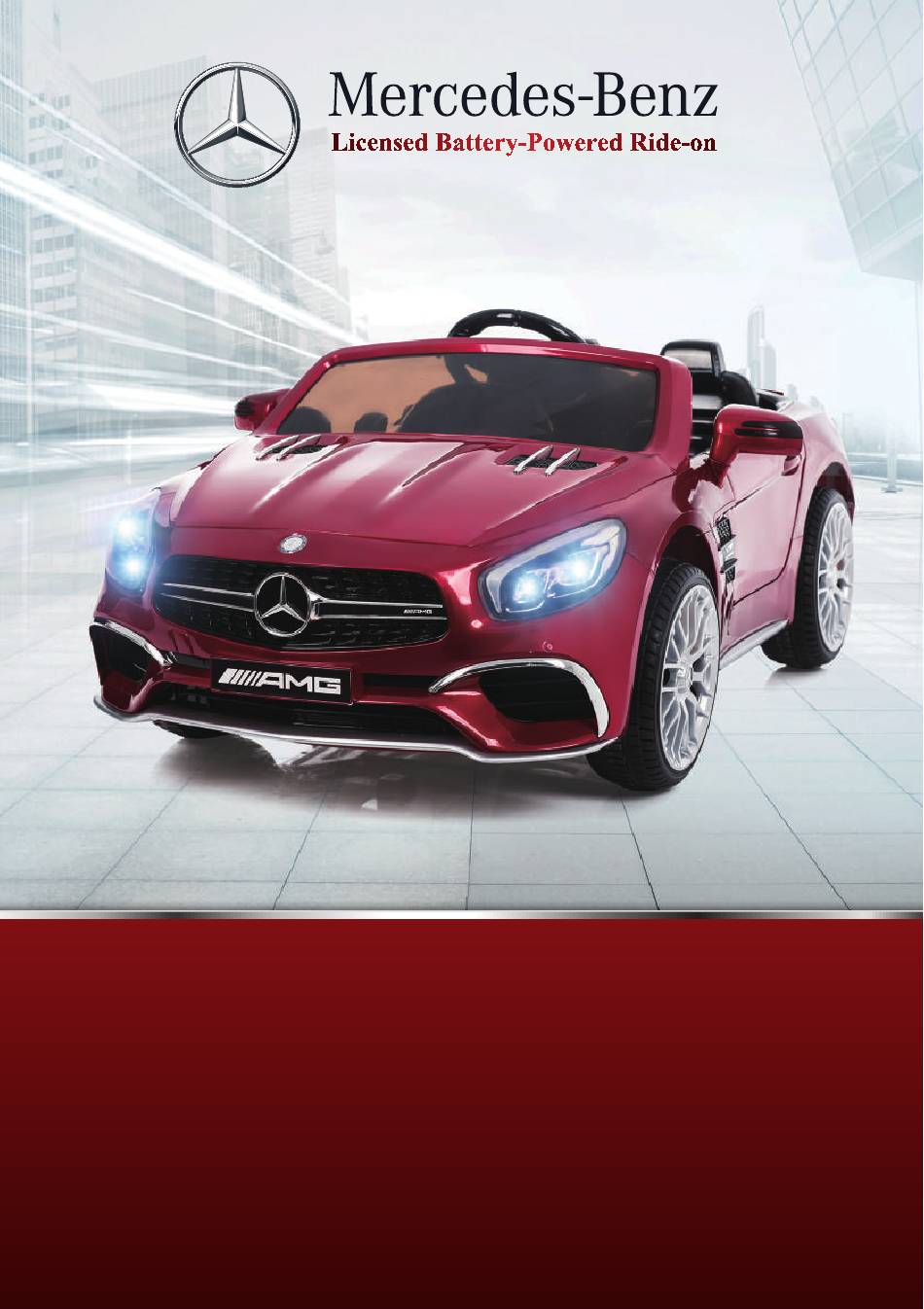

OWNER'S MANUAL
Read and understand this entire manual before using!
Please keep this manual for future reference as it contains important information.
Before first time use, charge the battery for at least 8-12 hours.
Styles and colo(u)rs may vary
with Assembly Instructions
Advertisement
Table of Contents

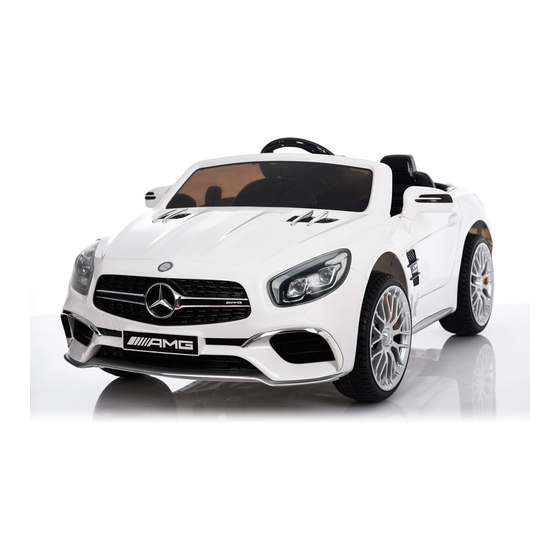

Summary of Contents for Truemax Mercedes Benz SL65 AMG Ride On Car
- Page 1 Styles and colo(u)rs may vary • Suitable age for 3+ Years • Maximum user weight: 30kg • Adult assembly required OWNER’S MANUAL with Assembly Instructions Read and understand this entire manual before using! Please keep this manual for future reference as it contains important information. Before first time use, charge the battery for at least 8-12 hours.
-
Page 2: Parts List
Parts List Q’TY (PCS) REMARK PART NAME Vehicle body Driving wheel Normal wheel Φ10 washer Lock nut Wheel cover View mirror Windshield Seat Φ4x12 screw For attach the adjustable seat Steering wheel M5X45 machine screw Φ5 nut Charger Remote controller Spanner •... -
Page 3: Parts Diagram
Parts Diagram... - Page 4 Safety PREVENT INJURIES AND DEATHS: • NEVER LEAVE CHILD UNATTENDED. ADULT DIRECT SUPERVISION IS REQUIRED. Always keep child in view when child is in vehicle. • This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.
-
Page 5: Attach The Rear Wheels
Attach the Rear Wheels HINT: If your vehicle is Two Wheels Driving Type, see the next page please. Rear bottom view Rear axle Turn over the vehicle body. 1. Slide the driving wheel onto the rear axle from Left Side. And keep the driving wheel match with the gear box. - Page 6 Attach the Rear Wheels Rear bottom view Rear axle Turn over the vehicle body. 1. Slide the driving wheel onto the rear axle from Left Side. And keep the driving wheel match with the gear box. 2. Slide the Ø10 washer onto the rear axle. 3.
-
Page 7: Attach The Front Wheels
Attach the Front Wheels Front bottom view Front axle 1. Slide the Ø10 washer onto the front axle. 2. Slide the Front wheel onto the front axle. 3. Slide the Ø10 washer onto the front axle. 4. Tighten a lock nut to the end of the front axle with a spanner. 5. - Page 8 Attach the Steering Wheel, MIrrors & Windshield 1. Plug the sound unit connector in the steering wheel into the connector in the vehicle body. 2. Fit the steering wheel to the end of the steering column. 3. Line up the holes in the steering wheel with the hole in the steering column, insert the M5x45 machine screw.
-
Page 9: Connect The Power Supply
Connect the Power Supply power connector vehicle connector 1. Open the rear trunk lid. 2. Plug the Red power connector on the battery into the blue connector on the vehicle. - Page 10 Attach the Normal Seat HINT: If you want to use the Adjustable Seat, see the next page please! 1. Fit the seat to the vehicle body. 2. Tighten two Ø4x12 flat head screws to secure the seat to the vehicle.
- Page 11 Attach the Adjustable Seat Button for adjust the seat 1,2. Aligned the slide strip under the seat with the slide way on the top of seat base, and press the button located the front of seat base and push the seat to the innermost postion.
- Page 12 Use Your New Vehicle IMPORTANT! Always stop vehicle when changing the speed or direction to avoid damage the gears and motor. 1. Power Switch: Turns the vehicle on and off. 2. Forward/Reverse switch: Changes the direction that vehicle moves from forward to reverse. 3.
- Page 13 Use the Remote Controller Speed select button Brake button Forward/Reverse joy stick Left/Right Joy stick High speed indicator Connection button Normal speed indicator Low speed indicator The remote control has precedence over foot pedal operation. (The foot pedal won’t work while you operate the Remote Controller) ASSEMBLY Lift the battery compartment door on the back of the controller and insert two AAA(LR03) batteries.
- Page 14 Use the Pull Handle & Remove the battery HOW TO USE THE PULL HANDLE 1. Rotate the support wheels out. 2. Rotate the Pull handle out. 3. You can move the vehicle by pulling. How to remove the battery from the vehicle 1.
- Page 15 Charging • The POWER SWITCH must be turned in OFF position when charging. • Before the first use, you should charge the battery for 4-6 hours. Do not recharge the battery for more than 10 hours to avoid overheating the charger. •...
-
Page 16: Troubleshooting Guide
Troubleshooting Guide Possible Cause Solution Problem Vehicle does not run Battery low on power Recharge battery. Thermal fuse has tripped Reset fuse, see <Fuse> Check that the battery connectors are firmly plugged Battery connector or wires into each other. If wires are loose around the motor are loose contact your distributor please. - Page 17 Disposal Of Battery ● Your sealed lead-acid battery must be recycled or disposed of in an environmen- tally sound manner. ● Do not dispose of your lead-acid battery in a fire. The battery may explode or leak. ● Do not dispose of a lead-acid battery in your regular, household trash. The incineration, land filling or mixing of sealed lead-acid batteries with household trash is prohibited by law.
