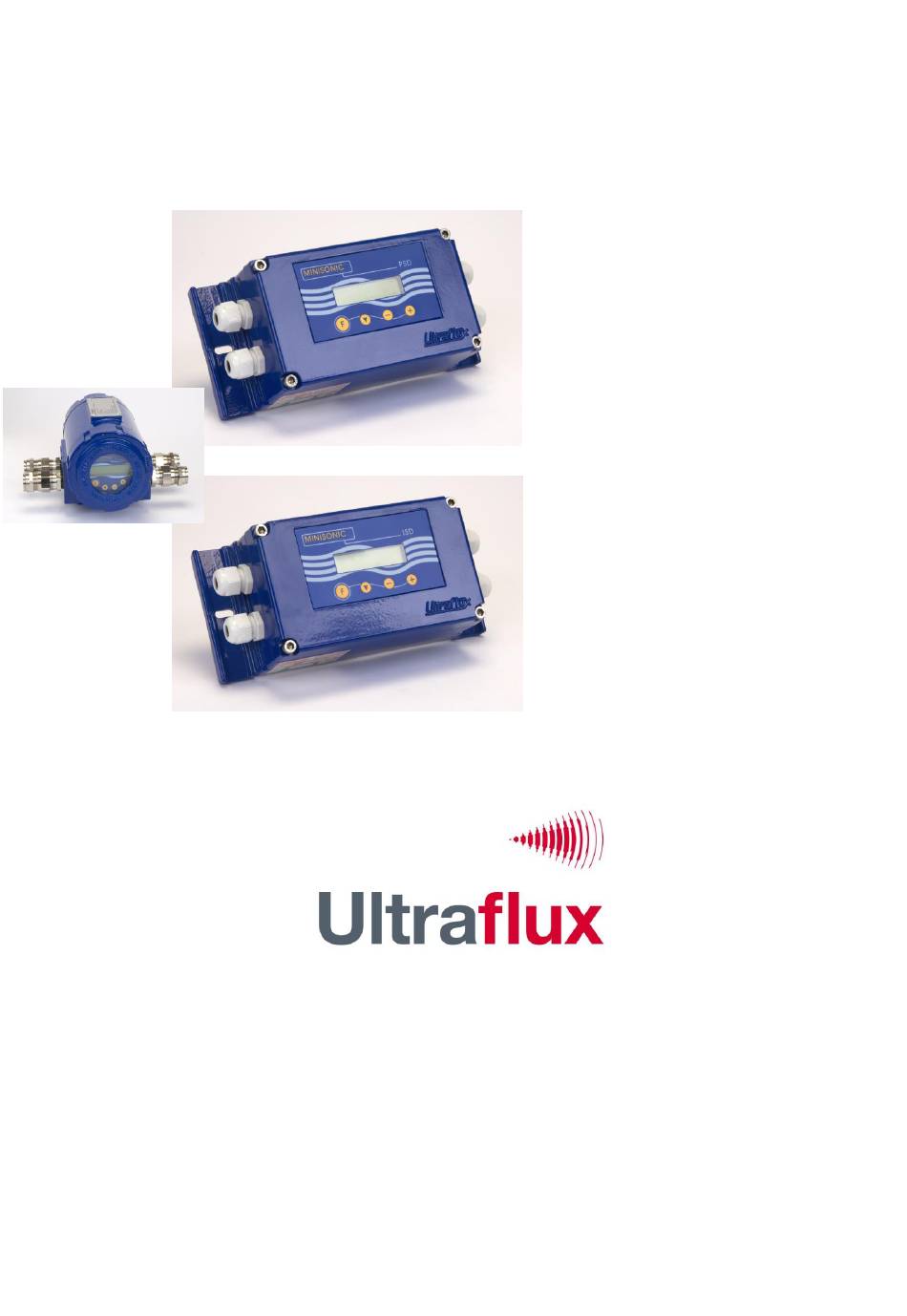

Explosion-proof
enclosure
Ultraflux NT 216C GB1
Revision: 29/04/2013
NT216C GB1
User Manual
Bâtiment TEXAS
Éragny Parc
9, Allée Rosa Luxemburg
95610 ÉRAGNY, FRANCE
Tél : 33 (0)1 30 27 27 30
Fax : 33 (0)1 30 39 84 34
www.ultraflux.net
Minisonic PSD
Pig and sphere detector
Minisonic ISD
Interface, pig and sphere detector
1 / 26
Advertisement
Table of Contents
Summary of Contents for Ultraflux Minisonic ISD
- Page 1 Interface, pig and sphere detector Bâtiment TEXAS Éragny Parc 9, Allée Rosa Luxemburg 95610 ÉRAGNY, FRANCE Tél : 33 (0)1 30 27 27 30 Fax : 33 (0)1 30 39 84 34 www.ultraflux.net Ultraflux NT 216C GB1 Revision: 29/04/2013 NT216C GB1 1 / 26...
- Page 2 PREAMBLE: Thank you for choosing Ultraflux to help your petroleum product quality survey during pumping operations by pipe-line or other process as pipe cleaning or product separators detection . We offer a new range of detectors backed by 30 years’ expertise and experience using Ultrasonic techniques.
-
Page 3: Table Of Contents
SUMMARY: 1 – Typical Applications: Measurement principle Sound velocity in petroleum products Pig detection in Gas pipes 2 – Composition of a measurement point . Certification Applicable standards MiniSonic limitations 3 – Ergonomics and dimensions Wall mounted industrial Version. Ex d, ATEX certified version. 4 –... -
Page 4: Typical Applications
The detection time corresponds to the end of the passed sphere or pig. When MiniSonic-ISD is connected to an Ultraflux digital correcting unit (M 1189-N …), it is possible to repeat a sphere or pig passage from this correcting unit if they are connected by R/S serial link . -
Page 5: Measurement Principle
These numerous echo phenomena can make necessary to reduce the measurement rate of the MiniSonic ISD or PSD so that the echo phenomena generated by the preceding transmission can be completely absorbed before a new transmission. - Page 6 1-2: Sound velocity in petroleum products – Relation with density : The sound velocity in any fluid can be related to some other physical characteristics such as density but also fluid pressure (P) and temperature (T) , mixture ratio if two or many products …and another data which presents a good analogy for liquids : the compressibility.
- Page 7 Sound velocity change in a variable binary mixture, during an interface: Sound velocity B concentration in % ( c (B) ) Pure product A Pure product B The relation is perfectly linear. A MiniSonic ISD can be used as a dosimeter or concentration analyzer. NT216C GB1 7 / 26...
- Page 8 Effect of Pressure ( P ) and Temperature ( T ) on sound velocity : We remind that P and T are also influencing actual density. Pressure influence: Naphta 100 bars Global Coefficient varies with density range. Here we have from + 0.4 up to 0.7 m/s per bar.
- Page 9 Same, when temperature can vary fast, as it is when the detection is just by a refinery with successive pumping of cold or hot product, it is recommended to do a correction from a reliable temperature information, with a the sensor closed to our ultrasonic probe. But, when the temperature varies only with seasons, it is not absolutely necessary to do a correction until end user accepts that the equivalent density display can show some deviation.
-
Page 10: Composition Of A Measurement Point
MINISONIC LIMITATIONS: MiniSonic ISD & PSD are designed for pipes from 100 mm ( 4”) up to 1500 mm (60”) MiniSonic ISD follows up with accuracy the product quality through its sound speed characteristics up to 2000 m/s. -
Page 11: Ergonomics And Dimensions

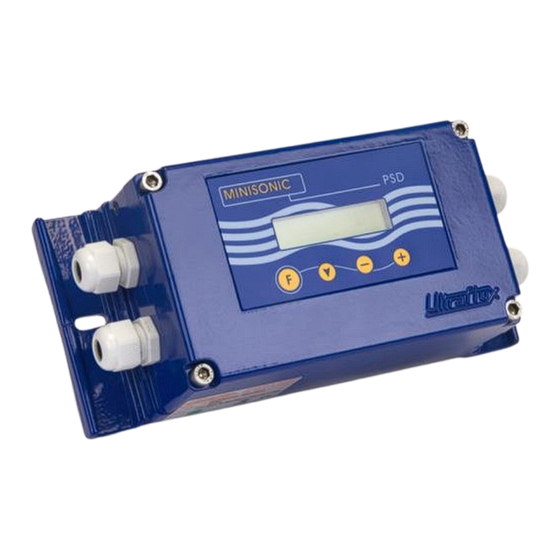

3 - ERGONOMICS AND DIMENSIONS OF THE MINI ISD & PSD CONVERTERS Wall-mounted industrial version (IP 67): The two glands on the left side are for the supply cable (upper one) and the outputs. The two glands on the right side are for probe(s) cable(s). To open the MiniSonic for wiring operations, unscrew the cover and disconnect the flat cable from the display. - Page 12 Version Ex d ATEX (Ex d IIC T6 ) – IP 67 : See also NT 219B - Each touch of the keypad has the same function as above. - The two glands near the front are reserved for probe cable(s). When only one is used, please keep he other one closed and tight.
-
Page 13: Wiring Diagram
4 – WIRING DIAGRAM FOR MINISONIC ISD & PSD : (Low Voltage Supply). If the GP 01 module for 90 to 230 V AC supply is installed, see also NT 218 The internal cables must be kept as short as possible. The cable connections must use the adjacent gland. - Page 14 > Connection to probe(s): BR 4. BR 3 is normally not mounted and reserved to dual-channel MiniSonic versions - Use Twin-ax cables (ET1217 & ET1217A) specified by Ultraflux. - For standard applications, only one cable is used. Connect it to terminals 1, 2, 3.
-
Page 15: Probes Installation
– General Procedures. 6 - PROBES INSTALLATION The MiniSonic ISD & PSD accept all standard or special transducers of Ultraflux catalogue with frequency from 250 KHz up to 2 MHz : clamp-on , insertion or wetted… Unless specified and instructed otherwise in the order, refer to the probe data sheet of the model used . - Page 16 7 - COMMISSIONING AND PARAMETERING OF MINISONIC ISD & PSD 1. Once the cabling has been carried out and verified, power up the system: > The MiniSonic must display its home screens: - Hardware version = MiniSonic ISD or PSD - Firmware version =10.01 -01 (e.g.
- Page 17 DETAILED REVIEW OF MENUS – MiniSonic Versions ISD & PSD 8 -1 : “ Measurement Display ” menu: Every time you return to this menu, MiniSonic displays, after welcome messages C ( m/s ) = xxxx.x the first screen as selected from the Software, Seek echo , Fault which is normally the sound velocity for an ISD Plus warning messages if any,...
- Page 18 It will be required for any subsequent intervention. > In case of loss, contact Ultraflux giving the following informations; the serial number of your MiniSonic MK4*/xx/xx/xxxx as it appears during energizing and the date or dates on which you want action to take place. An operation will be requested allowing a provisional code to be calculated.
- Page 19 8-4 : « Pipe & Product Settings » menu ( Flowing Fluid ) ∇ Ext. D = xxxx.x mm Pipe external diameter: Compare it to API standards: (6 “ 8” , 10” ¾ , 12” ¾ , 14” ,16”…) 5/8 , ∇...
- Page 20 8-5 : « Sphere / Pig parameters settings » menu : The validation of a sphere or a pig depends on the echo loss duration. The MiniSonic-ISD or PSD calculates this duration min. / max limits from the Pig Length (if only Spheres, then L = Pipe I.D.) and from the flow velocity.
- Page 21 8-6 : « General settings & Relays / Outputs » menu : ∇ Back Light Setting of LCD backlighting: ON / OFF / TIMED (Depending on MiniSonic version) ∇ Filter = ∗∗ Filter rate of measurements (Number of 0.5 s cycles) ∇...
- Page 22 Relay 1 & 2 = (Action by + / - ) Open / Closed 8-8 : « Output Current Settings» menu ( normally reserved to Ultraflux ) It permits adjustment of coefficients 4 mA ( 1 & 2 ) = xxxx for min / max range to 4 / 20mA conversion.
- Page 23 Each value or text field is filled in by Ultraflux before the final tests and delivery. Nevertheless, it is advisable to verify them by running through the various menus, comparing them with files given at the time of order, or with your instructions or particular choices.
- Page 24 Has it failed? If yes, the only solution is to call in our after-sales service. If the MiniSonic displays INIT constantly, attempt a power cutoff, then re-energize. If the fault persists, contact Ultraflux (Problem with the microprocessor). If the fault disappears, it may come back and could be due to excessively high impedance in the supply source.
- Page 25 ) Or alignment measurement tools SPARE PARTS: Ultraflux offers possibilities of purchasing spare cards or, as long as acceptance is granted, the standard replacement of equipment in the event of failure. Contact the Ultraflux commercial services or the regional dealer.
- Page 26 11 – APPENDIX: EXAMPLE OF SETTING FILE FOR A 12 “ ¾ PIPE NT216C GB1 26 / 26...
