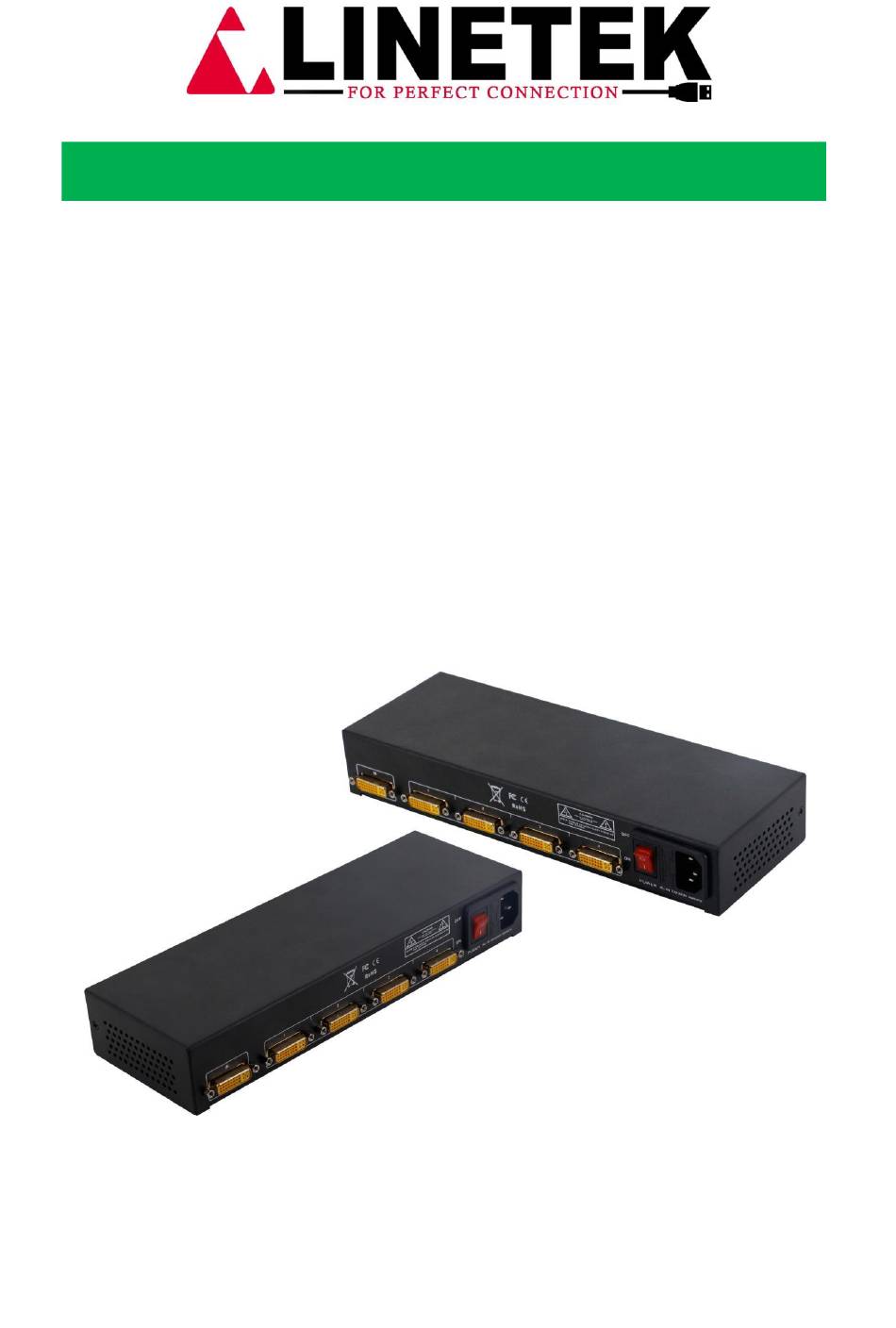

- Page 1 User Manual SPL-DVI-0104E 1 to 4 DVI Spliiter with EDID management Version: V2016.001...
-
Page 2: Table Of Contents
Contents 1. Production ......................3 2. Features ......................3 3. Specification ...................... 3 4. Packing ......................3 5. Panels ........................ 3 5.1 Front Panel ........................ 4 5.2 Back Panel ......................... 4 6. Operation ......................4 6.1 Connection Diagram ....................5 6.2 Indicators ........................ -
Page 3: Features
1. Introduction In a real application, users usually need to send one DVI signal to the display, meanwhile also need one more extra to monitor. So 1 to 4 DVI splitter comes to solve this issue. It supports 1 DVI/ HDMI input and 4 DVI/ HDMI outputs, the resolution can up to 1920*1200@ 60Hz, the maximum resolution can up to 4K with smart EDID management. -
Page 4: Panels
Working Humidity 10%-90% Temperature -10℃-50℃ Storage -20℃-75℃ 4. Packing SPL-DVI-0104E Power Cord Rack ear Pair 5. Panels 5.1 Front Panel A: DVI Input port B: DVI Output port 1 C: DVI output port 2 D: DVI output port 3 E: DVI output port 4... -
Page 5: Back Panel
5.2 Back Panel A: Power indicator B: DVI input indicator C: DVI output indicator 1 D: DVI output indicator 2 E: DVI output indicator 3 F: DVI output indicator 4 G: EDID management DIP switch 6. Operation diagram 6.1 Connection diagram... -
Page 6: Indicators
6.2 Indicators and EDID DIP POWER: Lightning up when power on, off when power disconnected IN: It will light up when has input source OUT-1: When the output-1 connected to the display successfully and resend the signals back, it will light up. OUT-2: When the output-1 connected to the display successfully and resend the signals back, it will light up OUT-3: When the output-3 connected to the display successfully and resend the... -
Page 7: Warranty Information
7. After-Sales 7.1 Warranty Information The Company warrants that the process and materials of the product are not defective under normal use and service for 3 (3) years following the date of purchase from the Company or its authorized distributors. If the product does not work within the guaranteed warranty period, the company will choose and pay for the repair of the defective product or component, the delivery of the equivalent product or component to the user for replacement of the defective item, or refund the...
