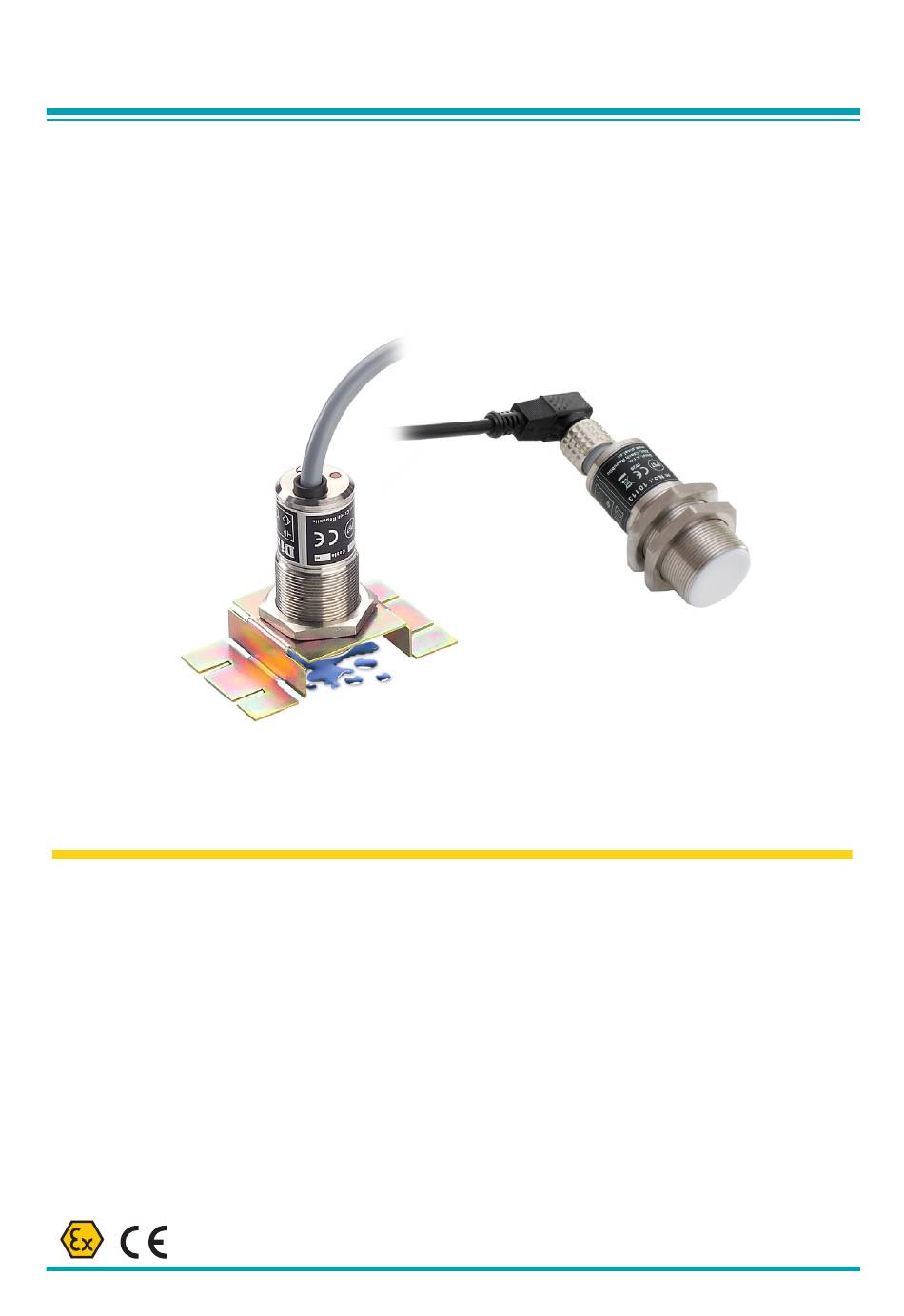

- Page 1 INSTRUCTION MANUAL průmyslová elektronika Capacitive proximity switch CPS–24 Read carefully the instructions published in this manual before the first use of the level meter. Keep the manual at a safe place. The manufacturer reserves the right to implement changes without prior notice.
-
Page 2: Table Of Contents
Contents 1 . Basic description ........................4 2 . Dimensional drawing ........................5 3 . Installation and putting into operation ..................5 4 . Installation instructions ........................6 5 . Electrical connection ........................7 6 . Settings ............................8 7 . Function and status indication .....................9 8 . Order code ..........................9 9 . Correct specification examples ....................9 10 ... -
Page 3: Basic Description

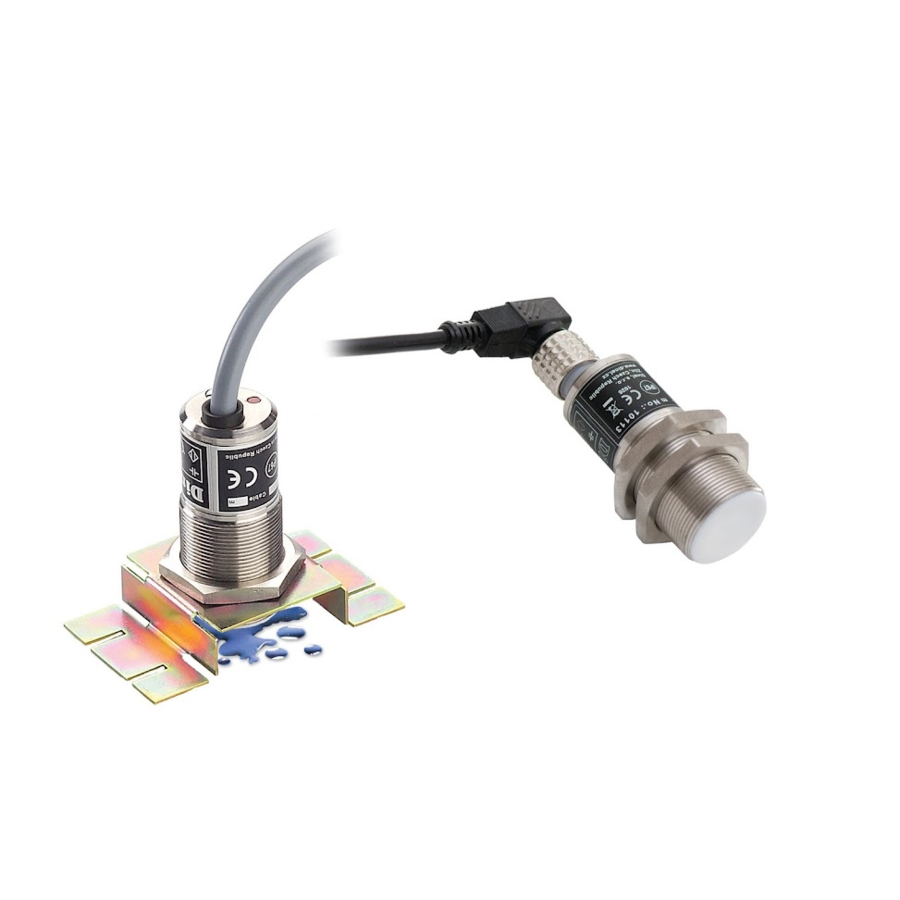

1 . Basic description Capacitive proximity switch CPS–24 is intended for detection of proximity or motion of solid objects. It is suitable for indication of the liquid level through non-conductive walls of vessels or on non-conductive gauge-pipes. It is excellent for liquid leakage detection in collection pits or directly on floors. The sensor state is indicated by LED. The sensitivity is adjustable by a trimmer located under a cover screw on the rear side. The design and housing materials of CPS allow the use in complicated environments (harsh, dusty, explosive, aggressive) as well as in clean environments (medical technology). CPS–24 © Dinel, s.r.o. -
Page 4: Dimensional Drawing
In the case of the use for an aggressive medium is necessary to prove the chemical compatibility of used materials of the sensor (Tab. Used materials on page 13). This guarantee ceases when the product is chemically damaged. © Dinel, s.r.o. CPS–24... -
Page 5: Installation Instructions
„B“ with an extended cable terminal with the installation variant of a PVC hose for cable protection. Intrinsically safe supply units (NSSU, NDSU or NLCU) Distance crown DK–24 Fig. 5: Use of CPS for indicating presence of liquid in the inter-wall space CPS–24 © Dinel, s.r.o. -
Page 6: Electrical Connection
In the event that the switch-mode power supply is equipped with a PE safety terminal, it must be unconditionally grounded! Spark-safe devices (type CPS-24) must be powered from a spark-safe power source meeting the above-mentioned requirements. -
Page 7: Settings
(sensing distance) depends on the dielectric properties or where appropriate the conductivity of the sensed material. For sensing of materials with a low relative permittivity (plastics), we recommend to individually set a higher sensitivity, or consult with the manufacturer if necessary. CPS–24 © Dinel, s.r.o. -
Page 8: Function And Status Indication
(Xi) Explosion-proof performance; (B) Long cable outlet with 7 m cable length; (RO) Output type NAMUR with lower current at non-activated electrode CPS–24N–C–NO cable 7 m (N) Performance for non-explosive areas; (C) Connector; (NO) Output type NPN with open state at non-activated electrode © Dinel, s.r.o. CPS–24... -
Page 9: Accessories
The level sensor is designed to be connected with supply unit type NSSU, NDSU and NLCU. If some other approved apparatus is used, its output parameters comply with above mentioned parameters, then it is necessary to include galvanic separation and/or in case of application of ap- paratus without galvanic separation (Zener safety barriers) it is necessary to provide equipotential equalisation between sensor and point of barrier earthing. For zone 0 application the present potentially explosive atmosphere of air mixture with gases, mists or vapours shall comply the following: = -20 to +60°C, p = 0.8 bar to 1.1 bar. amb Maximum input parameters: Ui = 12 V; Ii = 15 mA; Pi = 45 mW; Ci = 15 nF; Li = 10 µH CPS–24 © Dinel, s.r.o. -
Page 10: Use, Manipulation And Maintenance
The warranty certificate must be presented to exercise a claim. In the case of a rightful complaint, we will replace the product or its defective part. In both cases, the warranty period is extended by the period of repair. 14 . Marking of labels Labels for device of the type CPS-24N-_-NO, CPS-24N-_-NC, CPS-24N-_-PO, CPS-24N-_-PC: CPS-24N-_-NO Cable: __ m No.: ______ Dinel, s.r.o. U Tescomy 249 0 ÷ 10 mm 760 01 Zlín Czech Republic 7 ÷ 36 VDC www.dinel.cz 3 / 7 mA... - Page 11 3 / 7 mA Iomax 200 mA IP67 IP67 CPS-24N-_-PO Cable: __ m No.: ______ Dinel, s.r.o. U Tescomy 249 0 ÷ 10 mm 760 01 Zlín Czech Republic 7 ÷ 36 VDC www.dinel.cz 3 / 7 mA Iomax...
-
Page 12: Specifications
Basic performance for non-explosive atmospheres. Intrinsically safe explosion-proof performance for use in hazardous areas (explosive gas CPS–24Xi atmospheres or explosive atmospheres with dust), II 1G Ex ia IIC T6 Ga with intrinsi- cally safe supply units, whole sensor zone 0. Used materials Type of output Output Variants Part of the sensor Material Housing St. steel W.Nr. 1.4301 NPN (“NC”, “NO”) Sensing surface PTFE PNP (“PC”, “PO”) Ending St. steel W.Nr. 1.4301 NAMUR (“RC”, “RO”) Cable outlet (Variant “A”) Plastic POM Cable outlet (Variant “B”) St. steel W.Nr. 1.4301 © Dinel, s.r.o. CPS–24... -
Page 13: Packings, Shipping And Storage
If the device is to be further shipped, it must be wrapped in its original packaging and protected against impact and weather conditions. Store the device in its original packaging in dry areas covered from weather conditions, with humidity of up to 85 % without effects of chemically active substances. The storage temperature range is -10 °C to +50 °C. CPS–24 © Dinel, s.r.o. - Page 14 Dinel, s.r.o. U Tescomy 249 760 01 Zlín Czech Republic Phone: +420 577 002 002 Fax: +420 577 002 007 E-mail: sale@dinel.cz www.dinel.cz Find the updated version at www.dinel.cz version: 10/2017 08/2017...
