CU165 System Quick Guide

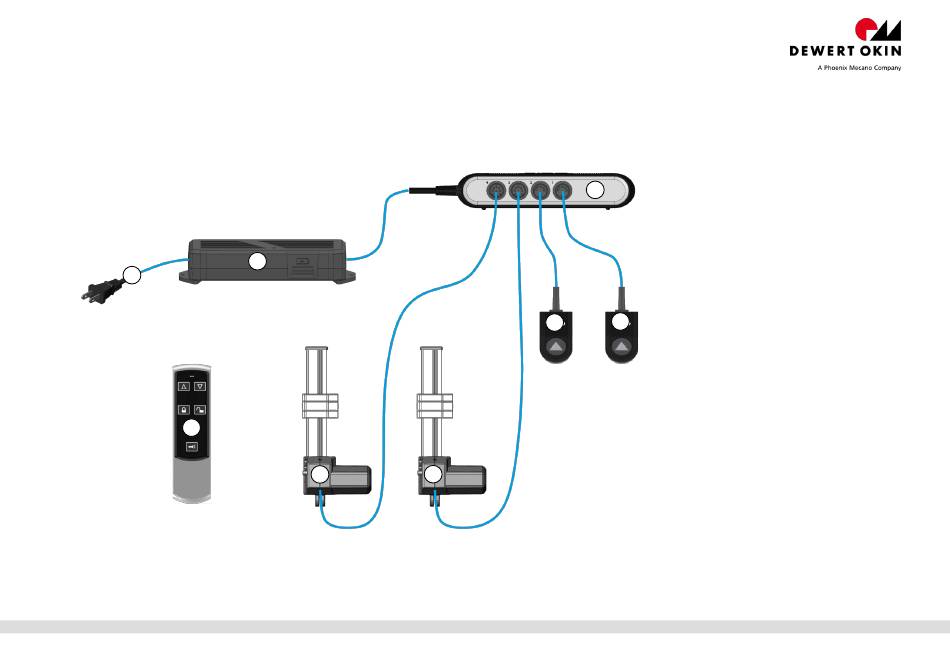

System overview: CU165 / BETADRIVE BZ / PD21 / RF-TOPLINE
CAUTION!
Electrical components should be connected or disconnected only when the power supply cord is unplugged.
CAUTION!
There is a delay after the supply voltage is applied before the device actually turns on. Wait at least two seconds before beginning the commissioning.
5
6
11.01.2018
model:A1125
Manufacture:DewertOkin GmbH
4
2
2
89316 1.0
Components that can be connected:
1.
CU165
1
2.
BETADRIVE BZ
3.
MOTION ASSIST
4.
POWER SUPPLY PD21
5.
Mains power cord:
6.
RF-TOPLINE
3
3
US Version
1 / 5
Advertisement
Table of Contents
Related Manuals for DewertOkin CU165
Summary of Contents for DewertOkin CU165
- Page 1 CU165 System Quick Guide model:A1125 Manufacture:DewertOkin GmbH System overview: CU165 / BETADRIVE BZ / PD21 / RF-TOPLINE CAUTION! Electrical components should be connected or disconnected only when the power supply cord is unplugged. CAUTION! There is a delay after the supply voltage is applied before the device actually turns on. Wait at least two seconds before beginning the commissioning.
- Page 2 CU165 System Quick Guide CU165 Connection ports and functions Technical specifications Connection for MOTION ASSIST (M1) Input voltage 29 V DC Connection for MOTION ASSIST (M2) Current consumption max. 4.00 A Duty cycle Connection for M1 (BETADRIVE BZ) Mode of operation 2 min / 18 min.
- Page 3 CU165 System Quick Guide RF-TOPLINE Description of button Note: By pressing the buttons, the lights lit. Button Function Drives up: By pressing the button, all drives automatically move to the Drives up upper end position. Drives down MOTION ASSSIT locked Drives down: By pressing the button, all drives automatically move to the lower end position.
- Page 4 Safety notices The CU165 system can be used by children of 8 years and older, persons with reduced physical, sensory or mental capabilities, or persons with lack of experience or knowledge when they are supervised or instructed concerning the safe use of the device and when they understand the resulting risks.
- Page 5 CU165 System Quick Guide FCC WARNING IC Compliance Notice This device complies Part 15 of the FCC Rules. Operation is subject to the This device complies with Industry Canada licence-exempt RSS following two conditions: standard(s). Operation is subject to the following two conditions:...
