Summary of Contents for SKFung SK12V6

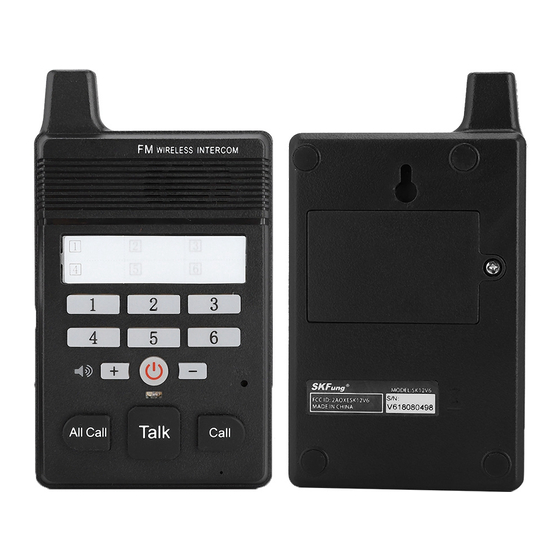

- Page 1 SK12V6 6 CHANNELS FM WIRELESS INTERCOM SYSTEM...

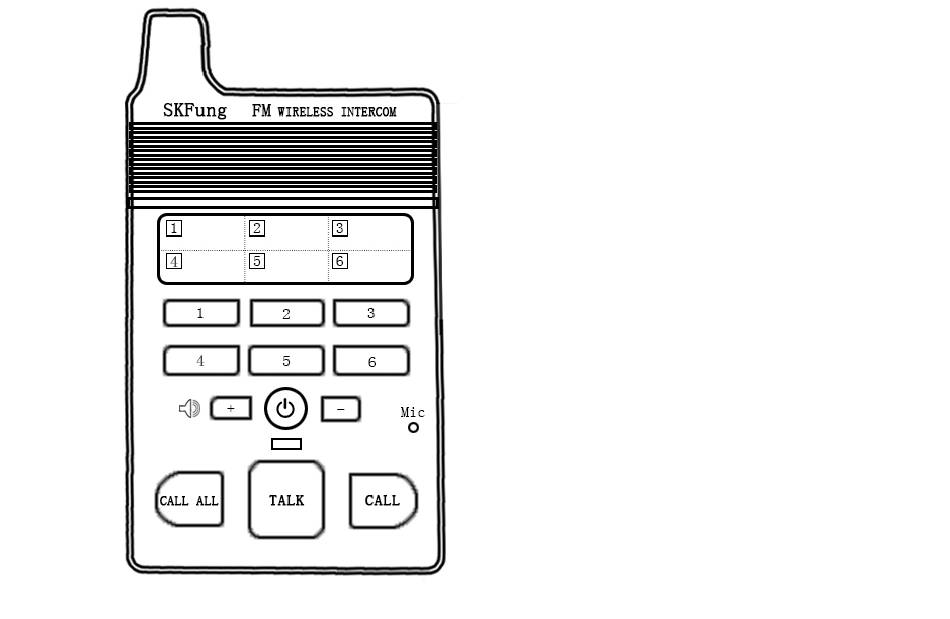

- Page 2 Overview of Operating Element 1 User label 2 Channels button 3 Menu button 4 Volume button 5 Talk Indicator 6 Microphone 7 Call button 8 Call All button 9 CTCSS switch 10 USB Socket 11 Talk button...
- Page 3 SK12V6 OPERATING MANUAL This products is a FM wireless intercom system. The device can be sent and received calls in the room or outside of room. You can talk to other members within range of your device. All the safety and operating instruction should be read before the device is operated and retained for future reference.
- Page 4 AC power. When you finish, disconnect the adapter from AC power before you disconnect them from the intercoms. Connect USB cable and adapter SK12V6 Setting Channels Follow these steps to prepare different devices to different channels for use: If you need to assign your device to CHANNEL 2.
-
Page 5: Operation
This unit is designated device for your current location .You can release your press once this successfully done. 3) Once the designated device has been set, write the corresponding name on the device you to remember whenever you want to call , press channel button 2, and call, then, talk. -
Page 6: Important Note
The channel (button) lights.. Setting the Volume Under the device turning on, Press the “+” or “-” key to Volume to your want. Calling Follow these steps to call/talk to another device. 1) Press channel button to the channel of device you are calling. If you are CHANNEL 3, and you wish to call CHANNEL 2, Press Button 2.the channel 2 is lights, 2) Press “Call”. - Page 7 All Call Pressing and holding down the “All Call” button, the talk indicator lights, and all Channels LED of device will start to flash, and you can speak in a normal tone while the “All Call” button is being pressed. Then, release the “All Call” button after you have done, the talk indicator turn off.
- Page 8 Package Contents SK12V6 FM Wireless Intercom Operating Manual Adapter of USB Charge Cable of USB CAUTIONS The following suggertions will help you care for your FM Wireless intercom so you can enjoy it for years. Protect the device from damp,dust,liquids,chemicals.vapours,heat and direct sunlight.
- Page 9 Risk of explosion if battery is replaced by an incorrect, dispose of used batteries according to the instructions Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 10 • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 11 This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy. The exposure standard for wireless device employs a unit of measurement known as the Specific Absorption Rate, or SAR The SAR limit set by the FCC is 1.6W/Kg.
